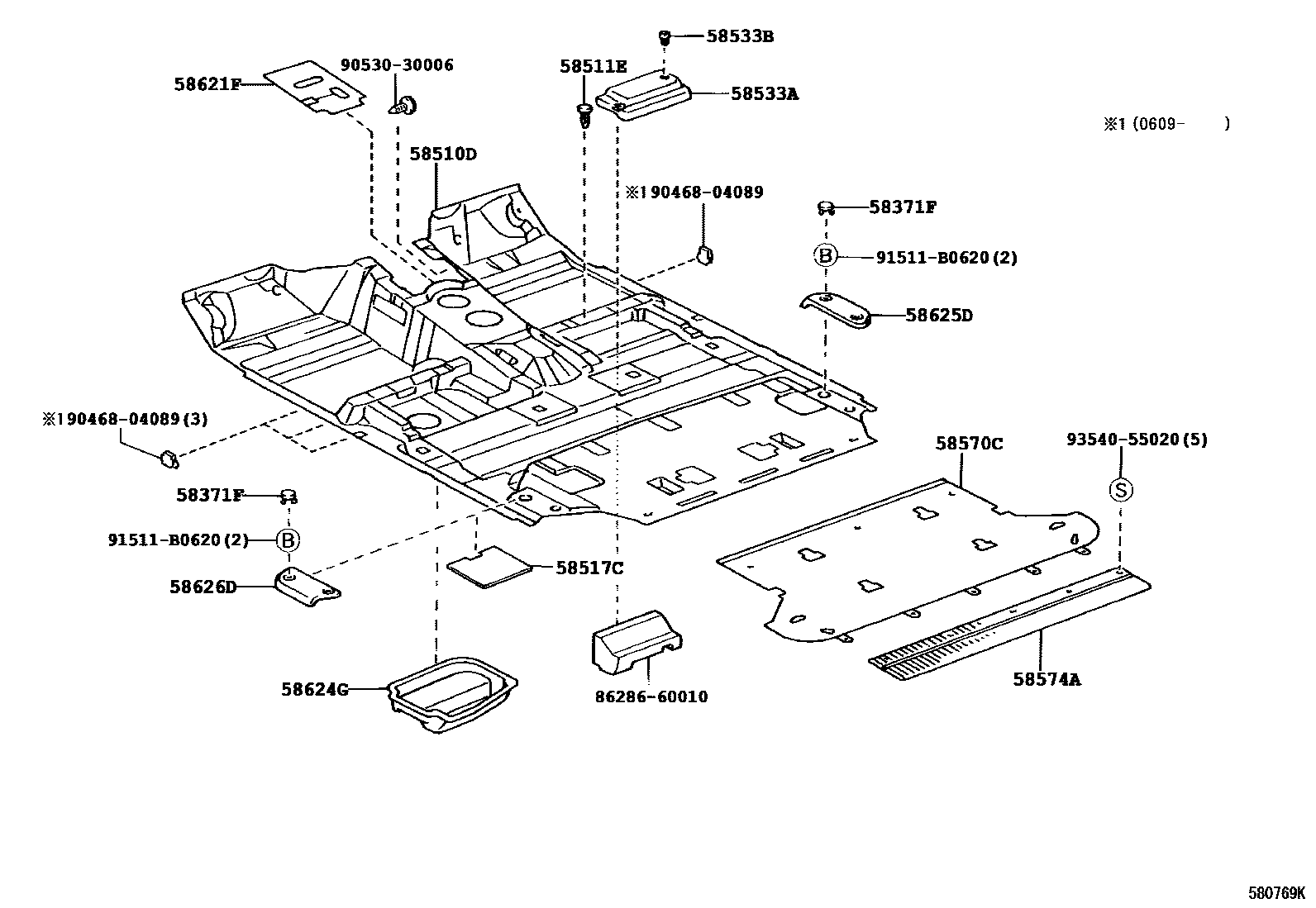

FLOOR MAT & SILENCER PAD
58371FCOVER, REAR FLOOR STEP, NO.1
58510DCARPET ASSY, FLOOR, FRONT
IVORY,TRIM4#
GRAY,TRIM1#
58511ECLIP(FOR FRONT FLOOR MAT)
58517CPAD, FRONT FLOOR MAT
58533ACOVER, FLOOR CARPET, CENTER RH
IVORY,TRIM0#
STONE,TRIM1#
58533BCLIP(FOR FLOOR CARPET COVER)
IVORY,TRIM0#
STONE,TRIM1#
58570CCARPET ASSY, REAR FLOOR
58574APLATE, REAR FLOOR MAT SUPPORT, REAR
58621FSILENCER, CENTER CONSOLE, NO.1
58624GPAD, FRONT FLOOR SILENCER
58625DPLATE, REAR FLOOR MAT, NO.1
58626DPLATE, REAR FLOOR MAT, NO.2
8628660010BRACKET, AMPLIFIER, NO.2
main86286-60010
9046804089
main90468-04089
9053030006
main90530-30006
91511B0620
main91511-B0620
9354055020
main93540-55020
17 parts on this diagram · 1 diagram in section
