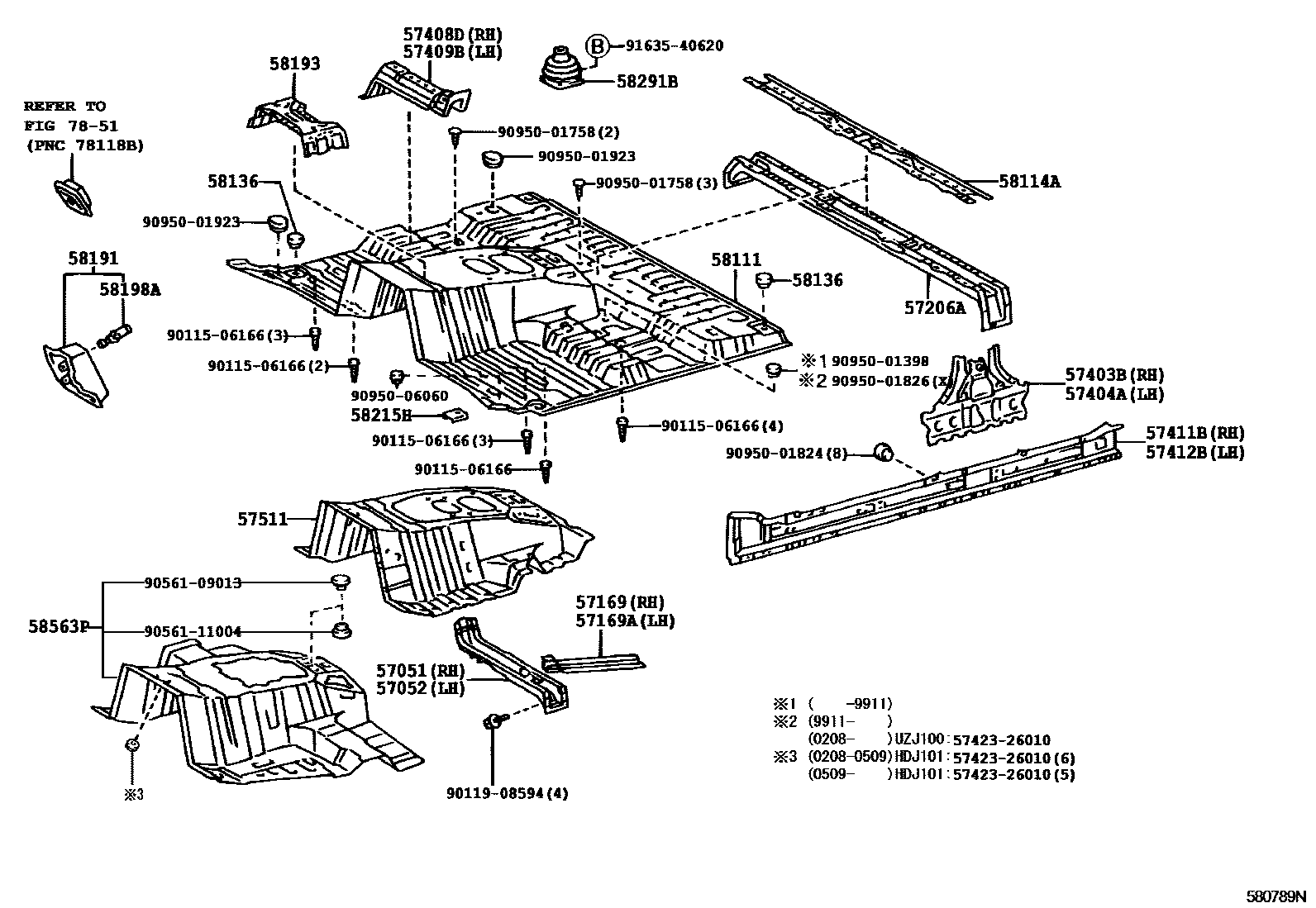

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1SIDE STEP

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60040iUZJ100199801-200508

sub57051-60050

main57051-60050iUZJ100200509

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60040iUZJ100199801-200505

57169MEMBER, FRONT FLOOR, FRONT RH

main57169-60010iUZJ100199801-200505

57169AMEMBER, FRONT FLOOR, FRONT LH

main57169-60010iUZJ100199801-200505

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-60100iUZJ100199801-200505

57403BREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-60030iUZJ100199801-200201

sub57403-60031

main57403-60031iUZJ100200201-200505

57404AREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-60030iUZJ100199801-200201

sub57404-60031

main57404-60031iUZJ100200201-200505

57408DMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57408-60020iUZJ100199801-200004

sub57408-60021

main57408-60021iUZJ100200004-200505

57409BMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57409-60020iUZJ100199801-200505

57411BMEMBER, FLOOR SIDE, INNER RH

main57401-60080iUZJ100199801-200505

57412BMEMBER, FLOOR SIDE, INNER LH

main57402-60090iUZJ100199801-200505

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-60040iUZJ100199801-199903

sub57511-60041

main57511-60041iUZJ100199903-200208

main58102-60070iUZJ100..RHD200208-200505

main58102-60080iUZJ100..LHD200208-200505

58111PAN, FRONT FLOOR

main58111-60790iUZJ100..RHD199801-199907

W(REAR HEATER)

sub58111-60791

main58111-60791iUZJ100..RHD199907-200208

W(REAR HEATER)

main58111-60800iUZJ100..RHD199801-199907

W(COOL BOX & REAR HEATER)

sub58111-60801

main58111-60801iUZJ100..RHD199907-200208

W(COOL BOX & REAR HEATER)

main58111-60810iUZJ100..LHD199801-199907

sub58111-60811

main58111-60811iUZJ100..LHD199907-200208

main58111-60820iUZJ100..LHD199801-199907

W(COOL BOX)

sub58111-60821

main58111-60821iUZJ100..LHD199907-200208

W(COOL BOX)

main58111-6A480iUZJ100..RHD200208-200308

sub58111-6A481

sub86286-60040

main58111-6A481iUZJ100..RHD200308-200505

main58111-6A490iUZJ100..RHD200208-200308

W(COOL BOX)

sub58111-6A491

sub86286-60040

main58111-6A491iUZJ100..RHD200308-200505

W(COOL BOX)

main58111-6A500iUZJ100..LHD200208-200308

W(COOL BOX)

sub58111-6A501

sub86286-60040

main58111-6A501iUZJ100..LHD200308-200505

W(COOL BOX)

main58111-6A510iUZJ100..LHD200208-200308

sub58111-6A511

sub86286-60040

main58111-6A511iUZJ100..LHD200308-200505

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-60040iUZJ100199801-200505

58136COVER, FRONT FLOOR HOLE

main58136-60020iUZJ100200001-200505

58191FOOTREST, FRONT FLOOR

main58190-60040iUZJ100..RHD199801-200505

main58190-60050iUZJ100..LHD199801-200208

main58190-60120iUZJ100..LHD200208-200505

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-60030iUZJ100199801-200201

sub58193-60031

main58193-60031iUZJ100200201-200505

58198ACLIP, FOOTREST, NO.1

main58198-20130iUZJ100..LHD199801-200208

main58198-53050iUZJ100..LHD200208-200505

main58198-60020iUZJ100..RHD199801-200505

UPPER

main58198-60040iUZJ100..RHD199801-200505

LOWER

58215HRETAINER, FRONT FLOOR

main58215-60020iUZJ100199801-200308

sub58215-60021

main58215-60021iUZJ100200308-200505

58291BBOOT, TRANSFER SHIFT LEVER

main58290-60080iUZJ100199801-200505

58563PSILENCER, FRONT FLOOR

main58563-60040iUZJ100199801-200204

sub58563-60041

main58563-60041iUZJ100200204-200411

sub58563-60042

main58563-60042iUZJ100200412-200505

7851

5742326010BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-26010

9011506166

main90115-06166

9011908594

main90119-08594

9056109013

main90561-09013

9056111004

main90561-11004

9095001398

main90950-01398

9095001758

main90950-01758

9095001824

main90950-01824

9095001826

main90950-01826

9095001923

main90950-01923

9095006060

main90950-06060

9163540620

main91635-40620

34 parts on this diagram · 2 diagrams in section
