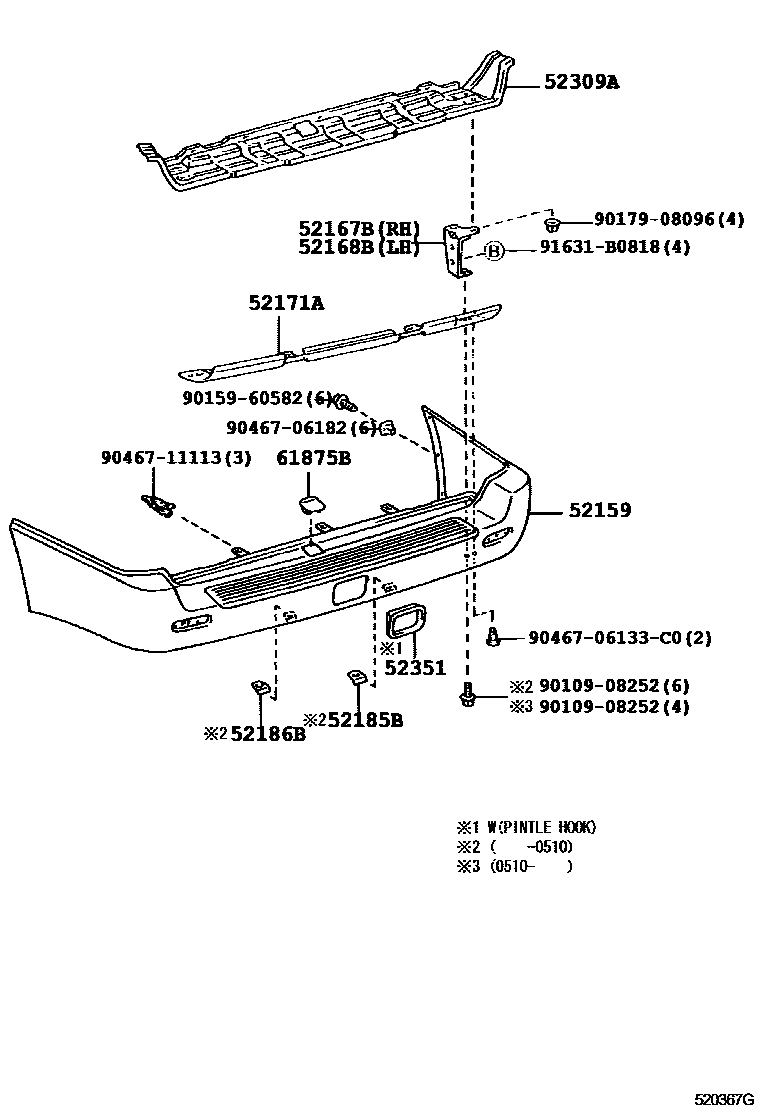

REAR BUMPER & BUMPER STAY
52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH
52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH
52171AREINFORCEMENT, REAR BUMPER, NO.1
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52309AREINFORCEMENT SUB-ASSY, BACK STEP
52351STEP, REAR BUMPER
61875BLID, SPARE WHEEL CARRIER, NO.1
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),LT.GRAYISH BEIGE ME.,KH2
sub61875-60020
9010908252
main90109-08252
9015960582
main90159-60582
9017908096
main90179-08096
9046706133C0
main90467-06133C0
9046706182
main90467-06182
9046711113
main90467-11113
91631B0818
main91631-B0818
16 parts on this diagram · 1 diagram in section
