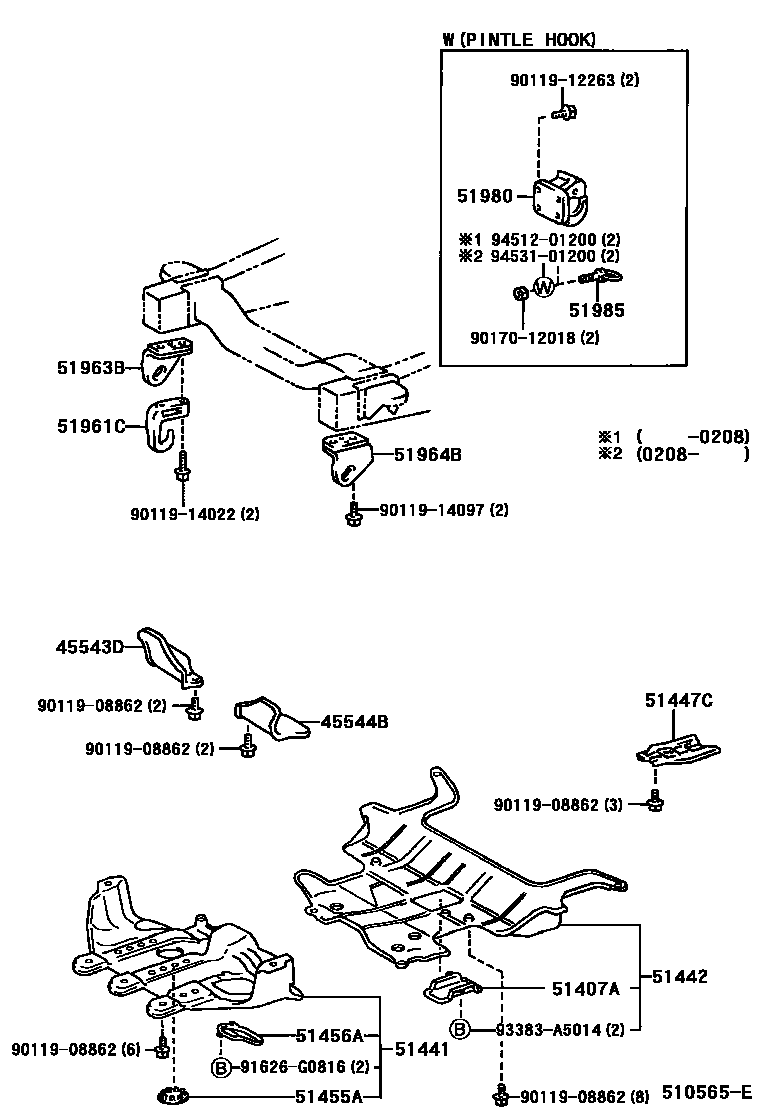

SUSPENSION CROSSMEMBER & UNDER COVER

45543DPROTECTOR, STEERING RACK BOOT, RH

main45543-60010iUZJ100199801-200505

45544BPROTECTOR, STEERING RACK BOOT, LH

main45544-60010iUZJ100199801-200505

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51443-60170iUZJ100199801-200505

51441COVER, ENGINE UNDER, NO.1

main51410-60020iUZJ100199801-200505

51442COVER, ENGINE UNDER, NO.2

main51420-60010iUZJ100..RHD199801-200505

main51420-60030iUZJ100..LHD200111-200505

51447CPROTECTOR, TRANSFER CASE

main51447-60050iUZJ100199801-200505

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-60060iUZJ100199909-200505

51456ASEAL, ENGINE UNDER COVER, REAR

main51456-60060iUZJ100199909-200505

51961CHOOK, FRONT

main51961-60190iUZJ100199801-200002

51963BHOOK, TRANSPORT, FRONT RH

main51963-60030iUZJ100199801-200505

51964BHOOK, TRANSPORT, FRONT LH

main51964-60030iUZJ100199801-200505

51980HOOK ASSY, PINTLE

main51980-60012iUZJ100..LHD199801-200505

51985HOOK, EYELET PINTLE

main51985-60011iUZJ100..LHD199801-200505

9011908862

main90119-08862

9011912263

main90119-12263

9011914022

main90119-14022

9011914097

main90119-14097

9017012018

main90170-12018

91626G0816

main91626-G0816

93383A5014

main93383-A5014

9451201200

main94512-01200

9453101200

main94531-01200

22 parts on this diagram · 1 diagram in section
