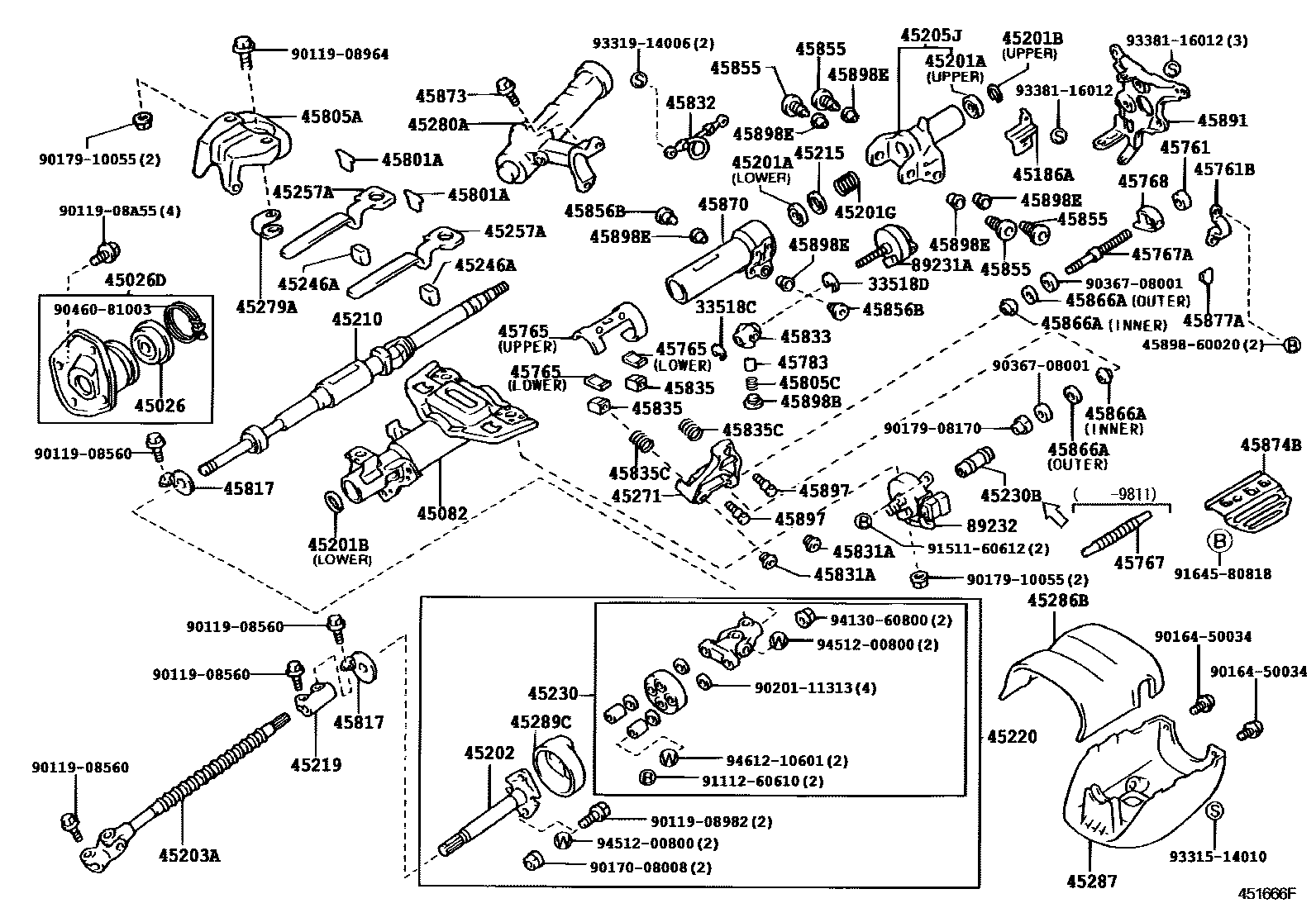

STEERING COLUMN & SHAFT
33518CE RING (FOR TILT MOTOR SHAFT, UPPER)
33518DE RING (FOR TILT MOTOR SHAFT, LOWER)
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026DCOVER SUB-ASSY, STEERING COLUMN HOLE
45186ABRACKET, CONNECTOR, NO.2
45201ABEARING(FOR STEERING MAIN SHAFT)
LOWER
UPPER
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=0.5,LOWER
T=1.20,UPPER
T=0.5,LOWER
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
45203ASHAFT, STEERING INTERMEDIATE, NO.2
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45215COLLAR, MAIN SHAFT BEARING THRUST
45219YOKE, STEERING SLIDING
45230COUPLING ASSY, FLEXIBLE
45230BJOINT ASSY, STEERING SHAFT UNIVERSAL
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45271CLAMP, STEERING COLUMN, UPPER
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
45289CCOVER, STEERING COLUMN, LWR NO.2
NO.1
NO.2
45761SLIDER, TELESCOPIC STEERING
45765GUIDE, TELESCOPIC STEERING
UPPER
LOWER
45767CABLE, TELESCOPIC STEERING COLUMN
45767ASCREW, TELESCOPIC STEERING
45783STOPPER, TILT STEERING, NO.1
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45805ASUPPORT SUB-ASSY, TILT STEERING
45817STOPPER, STEERING SHAFT THRUST
NO.2
NO.1
45831ABOLT, TELESCOPE LEVER LOCK
45832CABLE, TILT STEERING SUPPORT BOND
45833NUT, TILT STEERING ADJUSTING, NO.1
45835WEDGE, LOCK
45835CSPRING, COMPRESSION(FOR STEERING TELESCOPIC WEDGE LOCK)
45855BOLT, TILT STEERING, NO.1
OD=11.993-11.979
45856BSHAFT, T1LT STEERING, NO.2
45866ASTOPPER, STEERING MAIN SHAFT BUSH
INNER
OUTER
45870TUBE ASSY, STEERING COLUMN
45873STOPPER, STEERING COLUMN TUBE
45874BPROTECTOR, STEERING COLUMN, NO.1
45877ASPACER, STEERING COLUMN BRACKET
45891BRACKET, TURN SIGNAL
45898BBOLT, TILT STEERING SUPPORT STOPPER
45898EBUSH(FOR TILT STEERING SUPPORT BOLT)
4589860020BOLT, STEERING LOCK SET
main45898-60020
9011908560
main90119-08560
9011908964
main90119-08964
9011908982
main90119-08982
9011908A55
main90119-08A55
9016450034
main90164-50034
9017008008
main90170-08008
9017908170
main90179-08170
9017910055
main90179-10055
9020111313
main90201-11313
9036708001
main90367-08001
9046081003
main90460-81003
9111260610
main91112-60610
9151160612
main91511-60612
9164580818
main91645-80818
9331514010
main93315-14010
9331914006
main93319-14006
9338116012
main93381-16012
9413060800
main94130-60800
9451200800
main94512-00800
9461210601
main94612-10601
76 parts on this diagram · 3 diagrams in section
