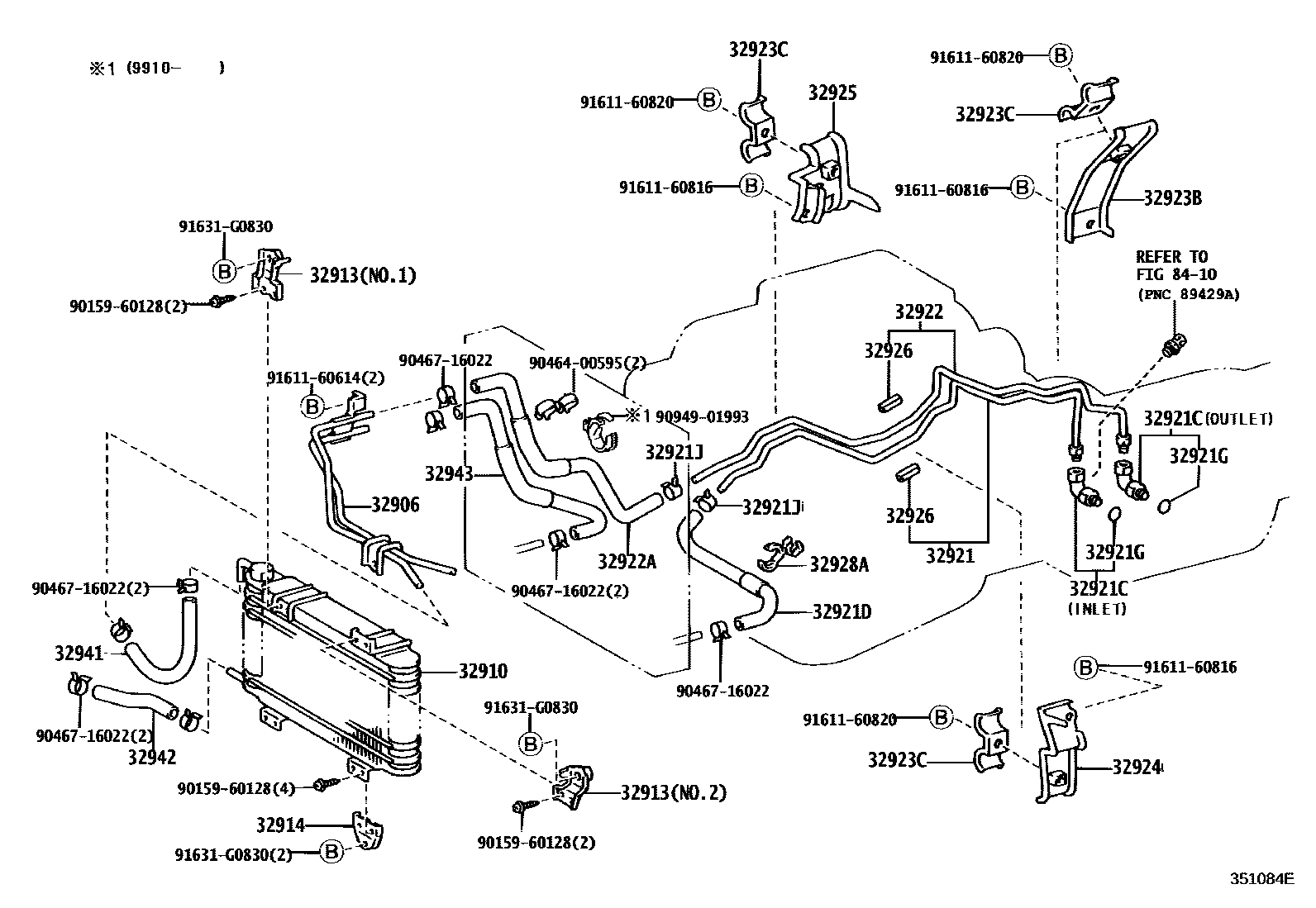

OIL COOLER & TUBE (ATM)

0001 1A442F 0002 1A442F 0003 1A750F 0004 1A750F

32906TUBE SUB-ASSY, OIL COOLER

main32906-60150iUZJ100..RHD200208-200505

32910COOLER ASSY, OIL

main32910-60130iUZJ100..RHD200208-200505

32913BRACKET, OIL COOLER

main32913-60220iUZJ100..RHD199801-200208

NO.1

main32913-60230iUZJ100..RHD200208-200505

NO.2

32914STAY, OIL COOLER

main32914-60060×2iUZJ100..RHD199801-200208

32921TUBE, OIL COOLER INLET, NO.1

main32921-60110iUZJ100199801-200010

main32921-60111iUZJ100200010-200208

main32921-60350iUZJ100..LHD200208-200209

REFER TO PNC 32921C

main32921-60351iUZJ100..LHD200209-200505

REFER TO PNC 32921C

main32921-60370iUZJ100..RHD200208-200209

REFER TO PNC 32921C

main32921-60371iUZJ100..RHD200505

32921CUNION(FOR OIL COOLER TUBE)

main90407-16009×2iUZJ100200208-200209

TYPE A:REFER ILLUST.

main90407-16037×2iUZJ100200209-200505

TYPE B:REFER ILLUST.

main90407-20004iUZJ100199801-200208

OUTLET

main90407-20007iUZJ100199801-200208

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-60190iUZJ100199801-200208

main32941-60290iUZJ100200505

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iUZJ100199801-200208

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013×2iUZJ100199801-200208

main90467-16022×2iUZJ100200505

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-60180iUZJ100199801-200010

main32922-60181iUZJ100200010-200208

main32922-60370iUZJ100..LHD200208-200209

REFER TO PNC 32921C

main32922-60371iUZJ100..LHD200505-200511

main32922-60400iUZJ100..RHD200208-200209

REFER TO PNC 32921C

main32922-60401iUZJ100..RHD200209-200505

REFER TO PNC 32921C

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-60290iUZJ100..RHD200208-200505

main32942-60330iUZJ100..LHD200208-200505

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-60120iUZJ100200208-200505

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-60050iUZJ100199801-200208

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main90462-12076×3iUZJ100199801-200208

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-60070iUZJ100199801-200208

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-60120iUZJ100199801-200208

main32925-60190iUZJ100200208-200505

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-60010×6iUZJ100199801-200208

L=45,ID=12

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-60130iUZJ100200208-200505

main32928-60150iUZJ100200706

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90949-01B51iUZJ100199801-200208

32941HOSE, OIL COOLER INLET, NO.1

main90445-17097iUZJ100..RHD199801-200208

32942HOSE, OIL COOLER OUTLET, NO.1

main90445-17103iUZJ100..RHD199801-200208

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-60210iUZJ100..RHD199801-200208

8410

9015960128

main90159-60128

9046400595

main90464-00595

9046716022

main90467-16022

9094901993

main90949-01993

9161160614

main91611-60614

9161160816

main91611-60816

9161160820

main91611-60820

91631G0830

main91631-G0830

31 parts on this diagram · 4 diagrams in section
