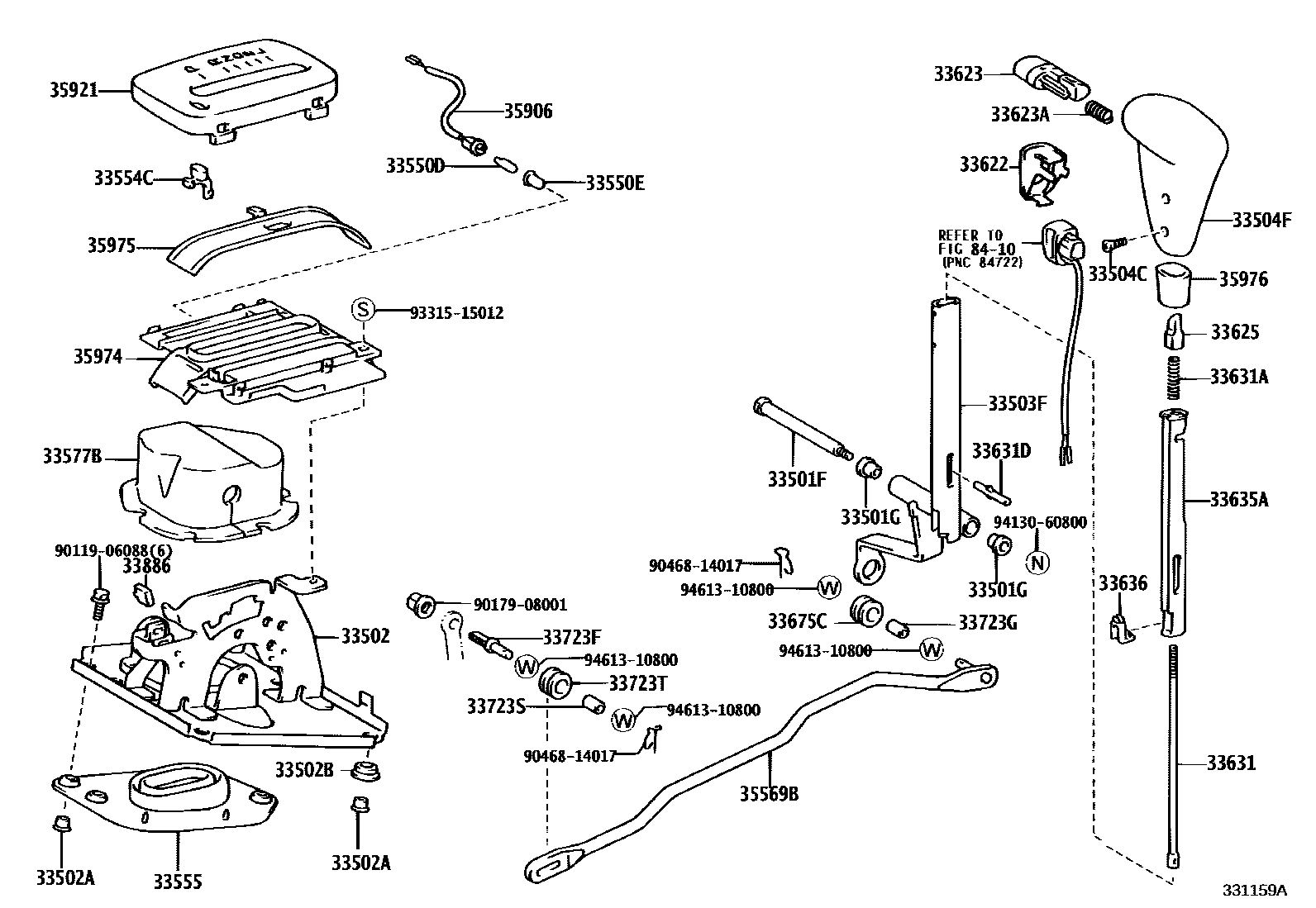

SHIFT LEVER & RETAINER
33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33502PLATE SUB-ASSY, SHIFT LEVER
33502ACOLLAR (FOR FLOOR SHIFT SETTING)
OD=8.8
33502BGROMMET (FOR SHIFT LEVER PLATE)
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM0#,1#
WOOD LIKE,BLACK,TRIM1#,4#
WOOD LIKE,BLACK,TRIM1#,4#
33550DBULB, POSITION INDICATOR LAMP
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33577BCOVER, CONTROL SHAFT HOLE
33622COVER, SHIFT LEVER KNOB, NO.1
33623BUTTON, SHIFT LEVER KNOB
WOOD LIKE,BLACK,TRIM1#,4#
WOOD LIKE,BLACK,TRIM1#,4#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33636GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33675CGROMMET (FOR TRANSMISSION CONTROL ROD)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33723SBUSH (FOR CONNECTING ROD SWIVEL)
33723TGROMMET (FOR CONNECTING ROD SWIVEL)
33886STOPPER, SHIFT LEVER
35569BROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT)
35921PLATE, CONTROL POSITION INDICATOR
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8410
9011906088
main90119-06088
9017908001
main90179-08001
9046814017
main90468-14017
9331515012
main93315-15012
9413060800
main94130-60800
9461310800
main94613-10800
41 parts on this diagram · 8 diagrams in section
