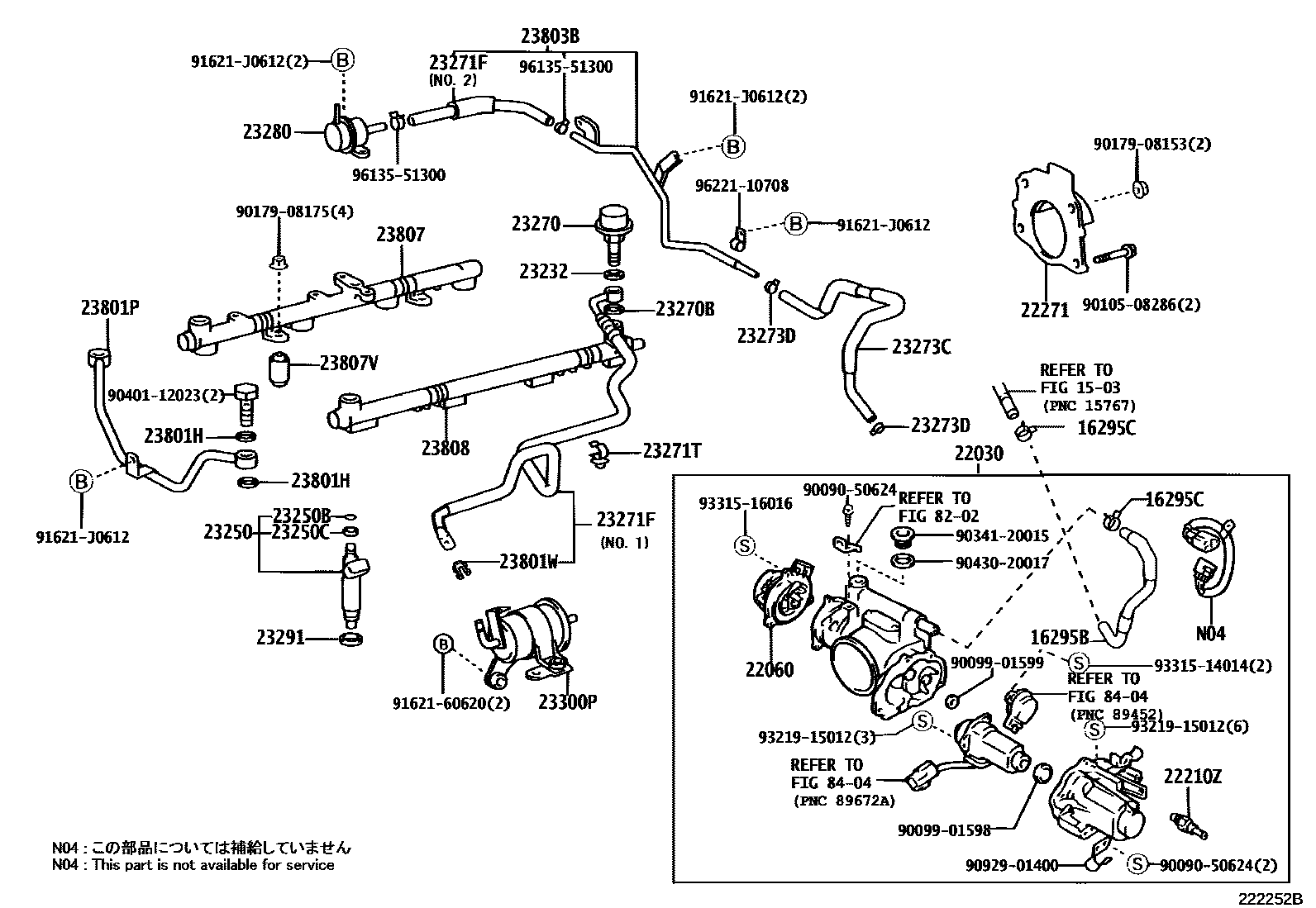

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1503

16295BHOSE, WATER BY-PASS, NO.7

main16295-50060i2UZFE..UZJ100199801-200208

main16295-50070i2UZFE..UZJ100200208-200505

16295CCLIP(FOR WATER BY-PASS HOSE NO.7)

main90467-13054×2i2UZFE..UZJ100200208-200501

main90467-20011×2i2UZFE..UZJ100199801-200208

main96137-41501×2i2UZFE..UZJ100200501-200505

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-50140i2UZFE..UZJ100199801-199807

main22030-50141i2UZFE..UZJ100199807-200008

main22030-50142i2UZFE..UZJ100200008-200208

main22030-50170i2UZFE..UZJ100200208-200505

22060LEVER ASSY, THROTTLE W/SENSOR

main22060-50010i2UZFE..UZJ100199801-199905

main22060-50011i2UZFE..UZJ100199905-200208

22210ZTHERMOSTAT, MANIFOLD

main90916-03104i2UZFE..UZJ100199801-200008

main90916-03128i2UZFE..UZJ100200008-200208

22271GASKET, THROTTLE BODY

main22271-50040i2UZFE..UZJ100199801-199808

main22271-50041i2UZFE..UZJ100199808-200006

main22271-50042i2UZFE..UZJ100200006-200208

23232GASKET(FOR FUEL PUMP HOSE)

main23232-41081i2UZFE..UZJ100199801-200208

23250INJECTOR ASSY, FUEL

main23209-50040×8i2UZFE..UZJ100199801-200208

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×8i2UZFE..UZJ100199801-200208

main90301-07037×8i2UZFE..UZJ100200607

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×8i2UZFE..UZJ100200505

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-50010i2UZFE..UZJ100200208-200505

sub23270-50011

23270BGASKET(FOR PULSATION DAMPER HOSE)

main90430-12026i2UZFE..UZJ100199801-200208

23271FHOSE, FUEL

main23271-50150i2UZFE..UZJ100200208-200505

NO.1

main23271-50160i2UZFE..UZJ100199801-200208

NO.2

main95337-08009i2UZFE..UZJ100200208-200505

NO.2

23271TCLAMP OR CLIP(FOR FUEL HOSE)

main90469-12012×2i2UZFE..UZJ100199801-200208

23273CHOSE, FUEL, NO.2

main23273-50020i2UZFE..UZJ100200208-200505

23273DCLIP(FOR FUEL HOSE NO.2)

main96132-41100×2i2UZFE..UZJ100199801-200208

main96132-51100×2i2UZFE..UZJ100200208-200505

23280REGULATOR ASSY, FUEL PRESSURE

main23280-50050i2UZFE..UZJ100199801-200208

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×8i2UZFE..UZJ100199801-200208

23300PFILTER, FUEL(FOR EFI)

main23300-50090i2UZFE..UZJ100..RHD199801-200208

main23300-50110i2UZFE..UZJ100..LHD199801-200208

23801HGASKET(FOR FUEL PIPE)

main90430-12026×4i2UZFE..UZJ100199801-200208

NO.1

main90430-14008×2i2UZFE..UZJ100200208-200505

NO.2

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-50020i2UZFE..UZJ100199801-200208

main23801-50021i2UZFE..UZJ100200208-200505

23801WCLIP, FUEL TUBE CONNECTOR

main90923-07002i2UZFE..UZJ100199801-200208

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-50100i2UZFE..UZJ100199801-200208

main23803-50120i2UZFE..UZJ100200208-200505

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-50050i2UZFE..UZJ100199801-200208

main23807-50051i2UZFE..UZJ100200208-200306

main23807-50052i2UZFE..UZJ100200306-200505

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08029×4i2UZFE..UZJ100199801-200208

23808PIPE SUB-ASSY, FUEL DELIVERY, NO.2

main23808-50040i2UZFE..UZJ100199801-200208

main23808-50041i2UZFE..UZJ100200208-200306

main23808-50042i2UZFE..UZJ100200306-200505

8202

8404

9009050624

main90090-50624

9009901598

main90099-01598

9009901599

main90099-01599

9010508286

main90105-08286

9017908153

main90179-08153

9017908175

main90179-08175

9034120015

main90341-20015

9040112023

main90401-12023

9043020017

main90430-20017

9092901400

main90929-01400

9162160620

main91621-60620

91621J0612

main91621-J0612

9321915012

main93219-15012

9331514014

main93315-14014

9331516016

main93315-16016

9613551300

main96135-51300

9622110708

main96221-10708

46 parts on this diagram · 4 diagrams in section
