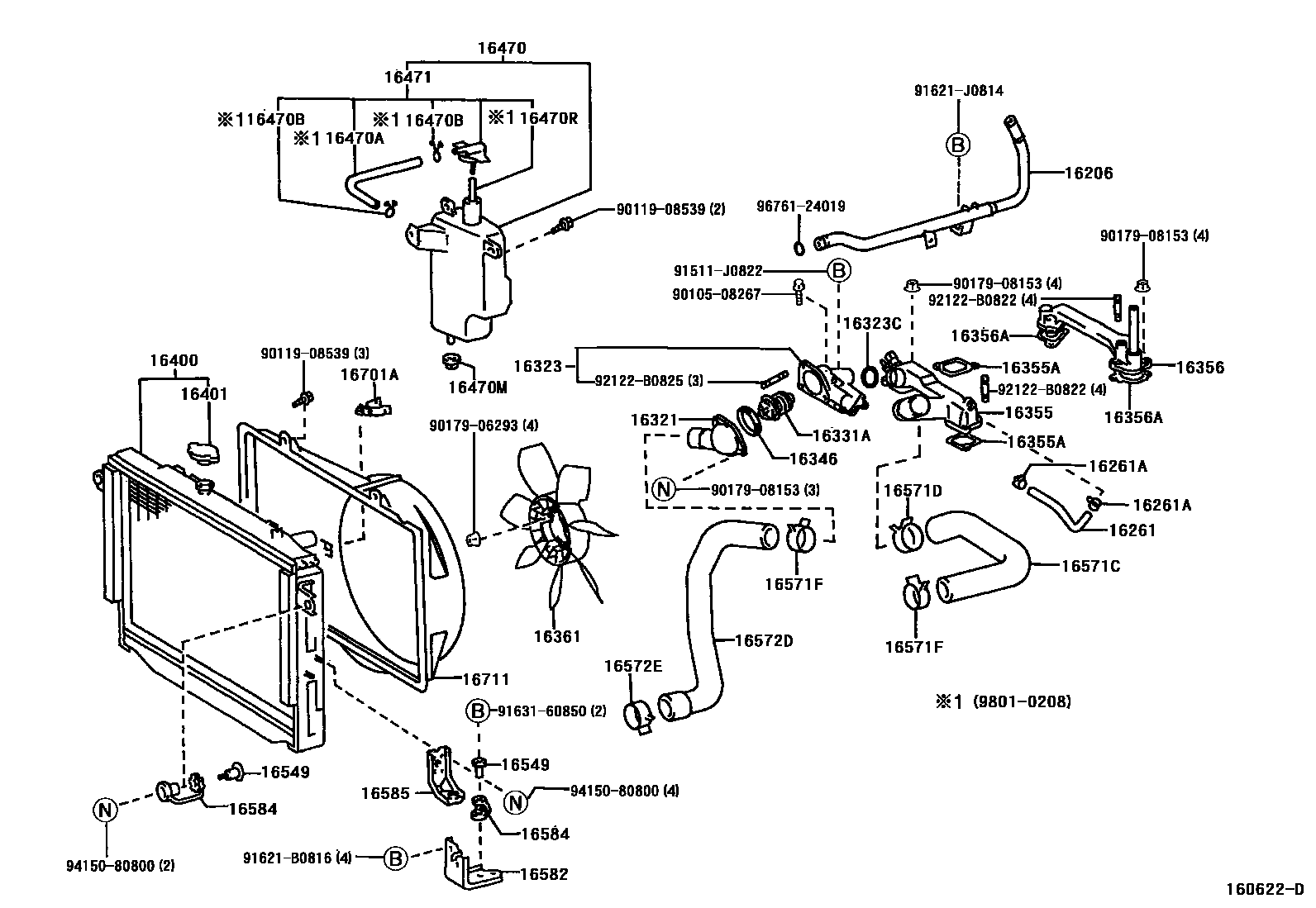

RADIATOR & WATER OUTLET
16206PIPE SUB-ASSY, WATER BY-PASS
16261HOSE, WATER BY-PASS
16321INLET, WATER
16323CRING, O(FOR WATER INLET HOUSING)
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
16346GASKET, THERMOSTAT
16355JOINT, WATER BY-PASS, FRONT
16355AGASKET(FOR WATER BY-PASS JOINT FRONT)
16356JOINT, WATER BY-PASS, REAR
16356AGASKET(WATER BY-PASS JOINT, REAR)
16361FAN
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
*H,L=240
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470MGROMMET
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=240
16471CAP SUB-ASSY, RESERVE TANK
16549COLLAR, RADIATOR SUPPORT, NO.2
UPPER BRACKET SIDE
LOWER
16571CHOSE, RADIATOR, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16582BRACKET, RADIATOR, NO.1
16584INSULATOR, RADIATOR MOUNTING
LOWER
UPPER BRACKET SIDE
16585BRACKET, RADIATOR, NO.3
16701ACLIP(FOR FAN SHROUD)
16711SHROUD, FAN
9010508267
main90105-08267
9011908539
main90119-08539
9017906293
main90179-06293
9017908153
main90179-08153
91511J0822
main91511-J0822
91621B0816
main91621-B0816
91621J0814
main91621-J0814
9163160850
main91631-60850
92122B0822
main92122-B0822
92122B0825
main92122-B0825
9415080800
main94150-80800
9676124019
main96761-24019
44 parts on this diagram · 2 diagrams in section
