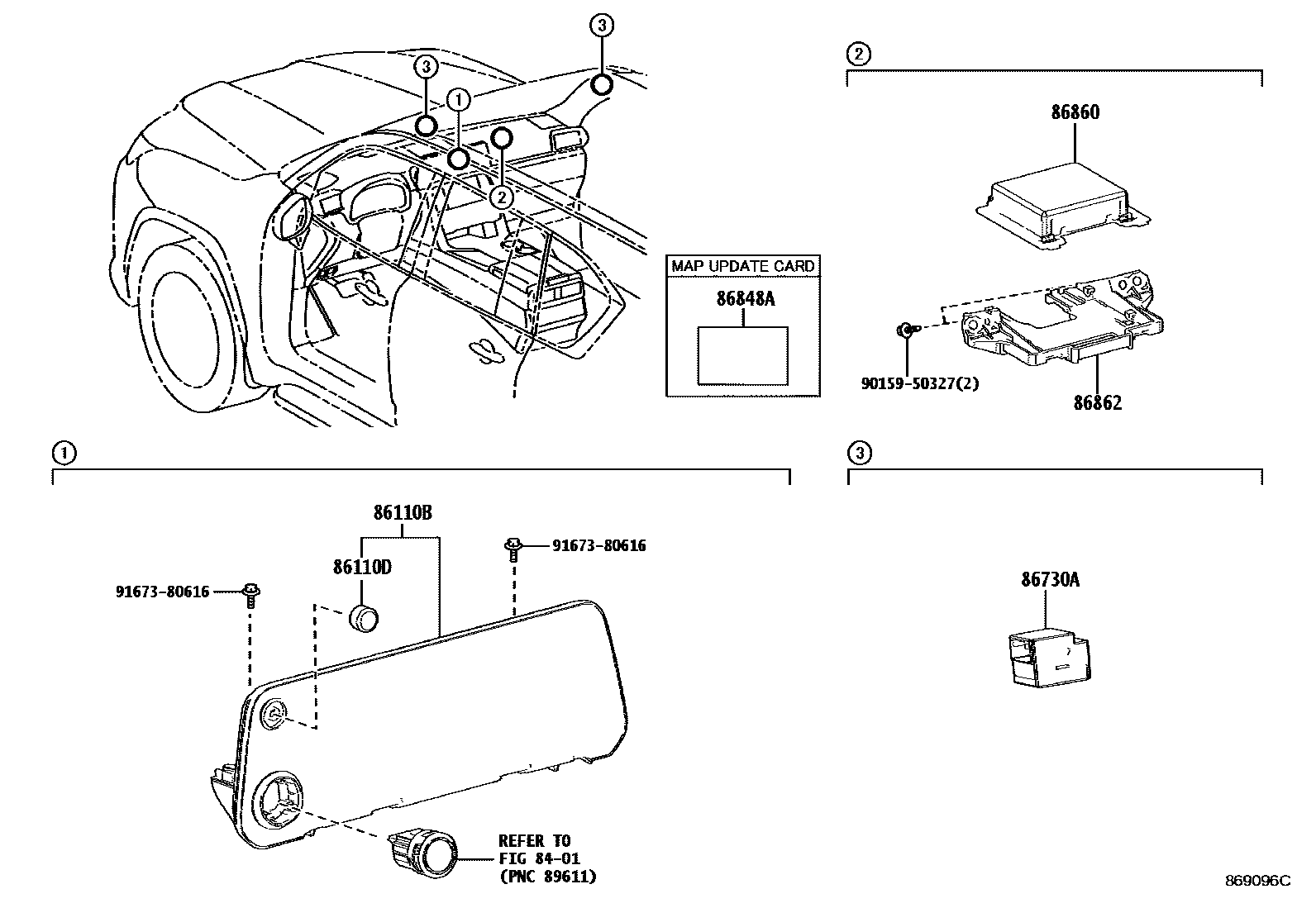

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8401

86110BMULTI-DISPLAY ASSY

main86110-60A30iFJA310,VJA310..ARL202112-202411

DENSO TEN

main86110-60B10iFJA310,VJA310,VJH310..ARL202411

DENSO TEN

main86110-60B20supersedes 86110-60B00iFJA310,VJA310,VJH310..CHI,GCC202411

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-EMV & 25SPEAKER(*MAR)

main86110-60A40supersedes 86110-60891iFJA310,VJA310..LHD202112-202212

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-EMV & 25SPEAKER(*MAR)

main86110-60A41supersedes 86110-60891iFJA310,VJA310..LHD202301-202411

DENSO TEN,AUDIO(FOR OVERSEAS MARKET)-EMV & 25SPEAKER(*MAR)

86110DKNOB, MULTI-DISPLAY SWITCH

main90010-23062iFJA310,VJA310202112-202411

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010×2iFJA310,VJA310202112-202411

86848ACARD, SERIAL NUMBER MAP UPDATE

main86848-78010iFJA310..ARL202410-202411

INDIA SPEC

main86848-78050supersedes 86848-78070iFJA310,VJA310..GCC202410-202411

LEBANON SPEC

main86848-78060iVJA310..GCC202410-202411

ARGENTINA SPEC

main86848-78080iVJA310..GCC202410-202411

VIETNAM SPEC

main86848-78090supersedes 86848-78030iFJA310,VJA310..ARL202410-202411

SOUTH AFRICA SPEC

86860ANTENNA ASSY, NAVIGATION

main86860-11010supersedes 86880-42010iFJA310..ARL202411

CHILE SPEC

main86880-42030iFJA310,VJA310,VJH310..CHI,EUR202411

UKRAINE SPEC

main86880-52020supersedes 86860-11010iFJA310,VJA310..GCC202112-202411

DATA COMMUNICATION MODULE-WITH(E-CALL(FOR UAE))

86862BRACKET, NAVIGATION ANTENNA

main86862-60070iFJA310,VJA310,VJH310202411

UKRAINE SPEC

9015950327

main90159-50327

9167380616

main91673-80616

9 parts on this diagram · 2 diagrams in section
