BATTERY & BATTERY CABLE

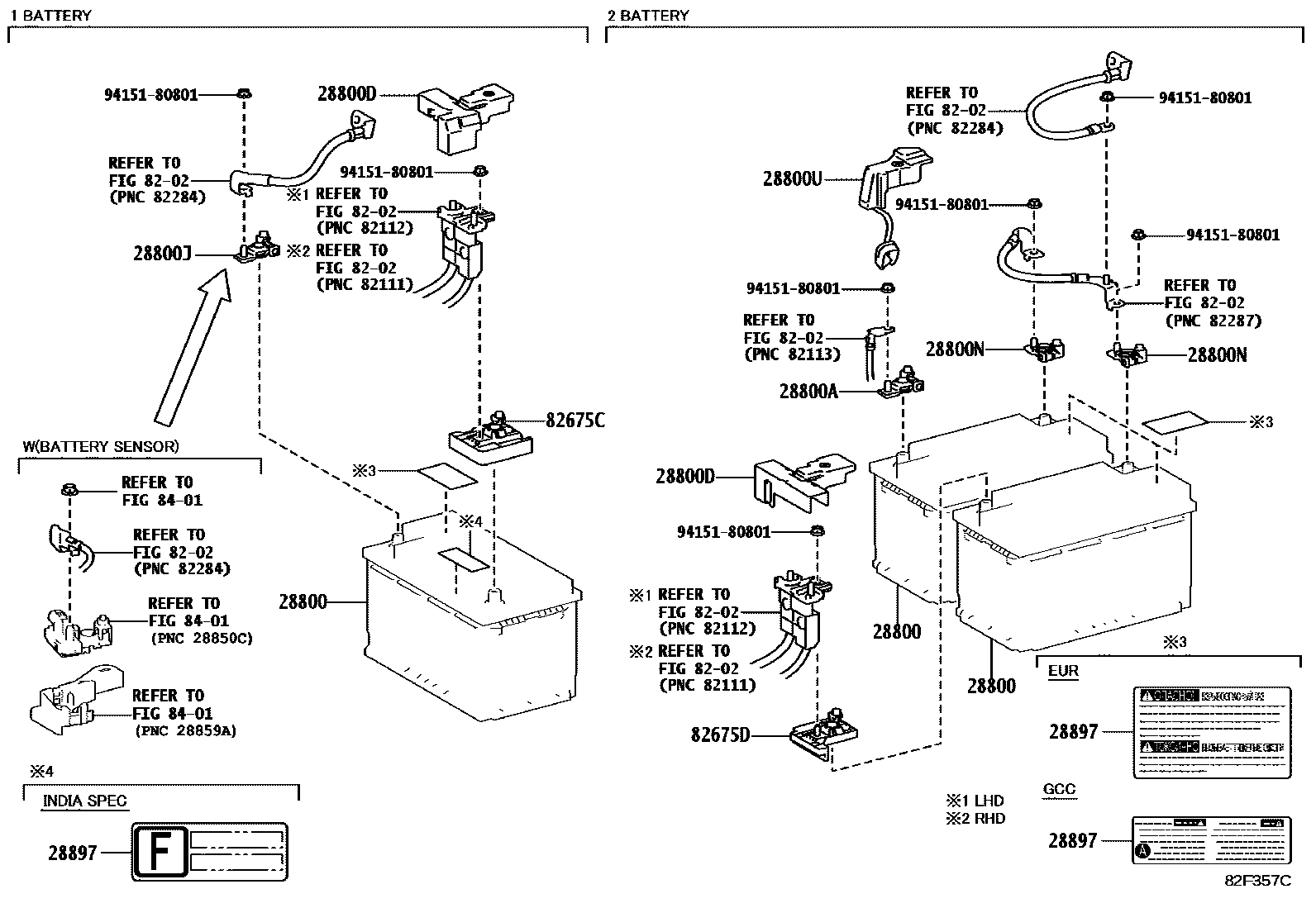

Parts diagram
28800BATTERY
main28800-38193i202411
LN4
main28800-70180i202112-202208
LN4
sub28800-70181
main28800-70181i202209-202403
LN4
sub28800-70182
main28800-70182i202404-202411
LN4
main28800-70200i202112-202210
LN4,WITHOUT(COLD AREA SPEC)
sub28800-70201
main28800-70200i202112-202210
LN4
sub28800-70201
main28800-70201i202211-202411
LN4
main28800-70201i202411
LN4,CHILE SPEC&WITHOUT(COLD AREA SPEC)
28800ATERMINAL, BATTERY POSITIVE
main90982-05071i202112-202411
WITHOUT(COLD AREA SPEC)
28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)
main82821-60870i202112-202411
WITHOUT(COLD AREA SPEC)
main82821-60880i202112-202411
28800JTERMINAL, BATTERY NEGATIVE
main90982-06061i202112-202411
WITHOUT(COLD AREA SPEC)
28800NTERMINAL, BATTERY NEGATIVE
main90982-06061i202112-202411
WITHOUT(COLD AREA SPEC)
28800UCOVER, CONNECTOR(FOR BATTERY TERMINAL), NO.2
main82821-60860i202112-202411
WITHOUT(COLD AREA SPEC)
28897PLATE, BATTERY CAUTION
main28897-36030i202112-202411
main28897-38060i202411
main28897-38070i202112-202411
MONGOLIA SPEC
main28897-38070i202411
AZERBAIJAN, GEORGEA SPEC
main28897-38070i202112-202411
MOLDOVA SPEC
main28897-38070i202112-202411
CHILE SPEC&WITHOUT(COLD AREA SPEC)
main28897-38070i202112-202411
UKRAINE SPEC
main28897-38070i202112-202411
MEXICO SPEC
main28897-38070i202112-202411
VIETNAM SPEC
main28897-38070i202112-202411
AZER, GEORGIA SPEC
8202
82675CTERMINAL, JUNCTION
main82675-60450i202112-202411
WITHOUT(COLD AREA SPEC)
82675DTERMINAL, JUNCTION
main82675-60460i202112-202411
8401
9415180801
main94151-80801

12 parts on this diagram · 5 diagrams in section
