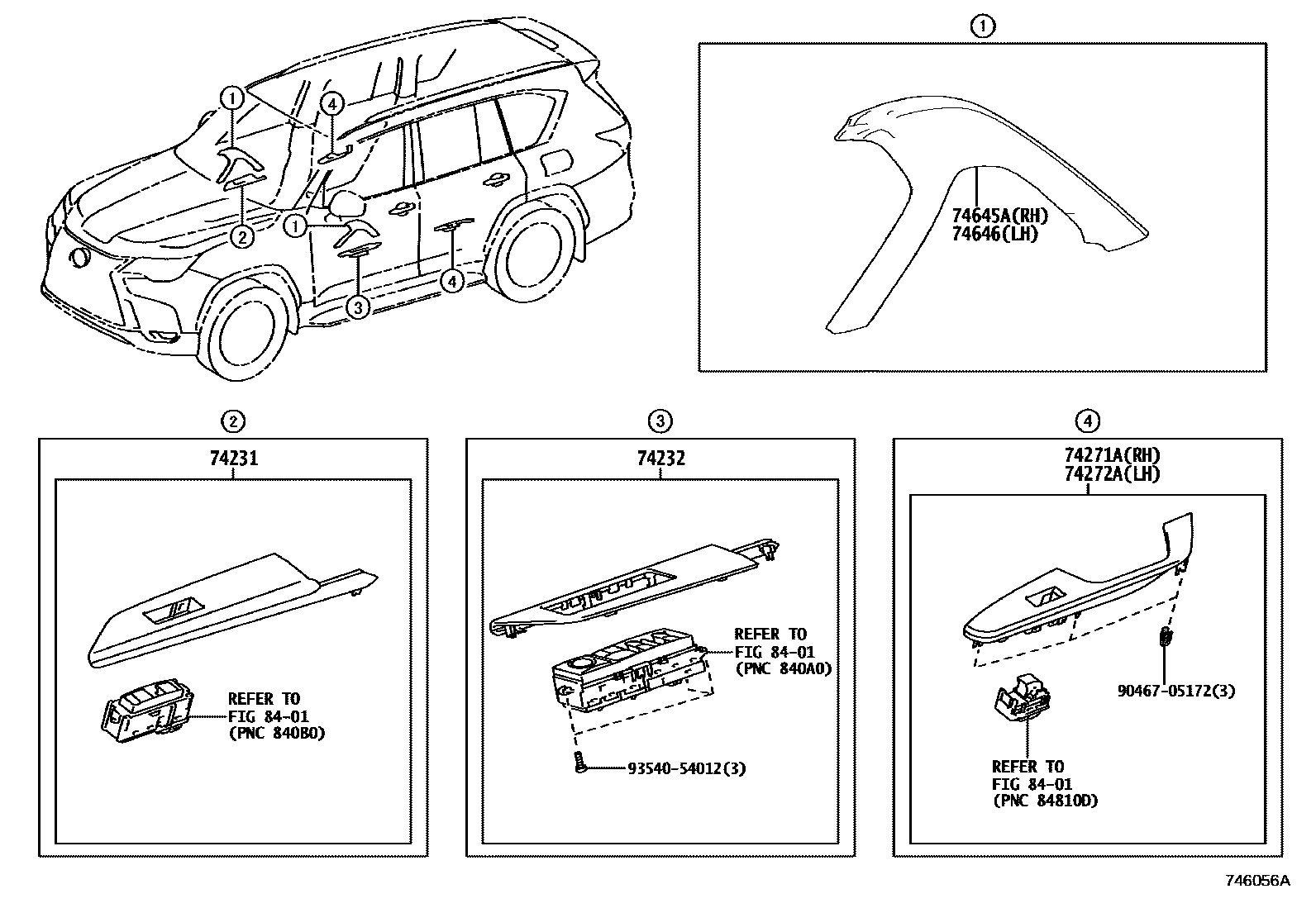

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-60B00iFJA310,VJA310,VJH310..LHD202112-202411

main74231-60B10iFJA310,VJA310,VJH310..ARL202112-202411

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-60A30iFJA310,VJA310,VJH310..LHD202112-202411

main74232-60A40iFJA310,VJA310..ARL202112-202411

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-60470iFJA310,VJA310202112-202411

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-60470iFJA310,VJA310202112-202411

74645ACOVER, DOOR ASSIST GRIP, RH

main74645-60070-C1iFJA310,VJA310,VJH310202411

BLACK,TRIM2#,3#,42

main74645-60070-C1iFJA310,VJA310202112-202411

BLACK,TRIM2#,3#

main74645-60070-E3iFJA310..LHD;VJA310,VJH310202112-202411

SUNFLARE BROWN,TRIM41

main74645-60070-E4iFJA310..ARL202112-202411

HAZEL,TRIM4#

main74645-60070-E4iFJA310,VJA310,VJH310202112-202411

HAZEL,TRIM40

main74645-60070-E5iFJA310,VJA310202112-202411

DK.SEPIA,TRIM0#

74646COVER, DOOR ASSIST GRIP, LH

main74646-60070-C1iFJA310,VJA310,VJH310202411

BLACK,TRIM2#,3#,42

main74646-60070-C1iFJA310,VJA310202112-202411

BLACK,TRIM2#,3#

main74646-60070-E3iFJA310..LHD;VJA310,VJH310202112-202411

SUNFLARE BROWN,TRIM41

main74646-60070-E4iFJA310..ARL202112-202411

HAZEL,TRIM4#

main74646-60070-E4iFJA310..ARL202112-202411

HAZEL,TRIM40

main74646-60070-E5iFJA310,VJA310202112-202411

DK.SEPIA,TRIM0#

8401

9046705172

main90467-05172

9354054012

main93540-54012

9 parts on this diagram · 3 diagrams in section
