REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67812PAD, REAR DOOR SILENCER
67837CSEAL, REAR DOOR DUST PROOF
67841BCOVER, REAR DOOR SERVICE HOLE
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67843DCLIP, REAR DOOR SERVICE HOLE
67845DSEAL, REAR DOOR FRONT OUTSIDE, RH
67846ASEAL, REAR DOOR FRONT OUTSIDE, LH
67857MPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)
67867KCLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR)
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869LCLIP, REAR DOOR WEATHERSTRIP
67869NCLIP, REAR DOOR WEATHERSTRIP, RH
67869PCLIP, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67872WEATHERSTRIP, REAR DOOR, LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67887BCLIP(FOR REAR DOOR WEATHERSTRIP)
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
67895CWEATHERSTRIP, REAR DOOR, NO.3 RH
67896WEATHERSTRIP, REAR DOOR, NO.3 LH
67897LWEATHERSTRIP, REAR DOOR, NO.4 RH
67898GWEATHERSTRIP, REAR DOOR, NO.4 LH
67923BCUSHION, REAR DOOR STIFFENER, NO.1
68103GLASS SUB-ASSY, REAR DOOR, RH
REAR SIDE GLASS-PRIVACY(GRAY)
REAR SIDE GLASS-PRIVACY(GRAY)
INDIA SPEC
BRUNEI SPEC
MALAYSIA SPEC
THAI SPEC
68104GLASS SUB-ASSY, REAR DOOR, LH
REAR SIDE GLASS-PRIVACY(GRAY)
REAR SIDE GLASS-PRIVACY(GRAY)
INDIA SPEC
BRUNEI SPEC
MALAYSIA SPEC
THAI SPEC
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
REAR SIDE GLASS-PRIVACY(GRAY)
INDIA SPEC
MALAYSIA SPEC
THAI SPEC
BRUNEI SPEC
68124CGLASS, REAR DOOR QUARTER WINDOW, LH
REAR SIDE GLASS-PRIVACY(GRAY)
REAR SIDE GLASS-PRIVACY(GRAY)
BRUNEI SPEC
INDIA SPEC
MALAYSIA SPEC
THAI SPEC
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68196BSEAL, REAR DOOR BELT, FRONT RH
68197ASEAL, REAR DOOR BELT, FRONT LH
68198SEAL, REAR DOOR BELT, REAR RH
68199SEAL, REAR DOOR BELT, REAR LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
86262DCOVER, REAR DOOR SPEAKER
AUDIO(FOR OVERSEAS MARKET)-EMV & 25SPEAKER(*MAR)
6753476010SEAL, FRONT DOOR DIVISION BAR, LH NO.2
main67534-76010
6754676010CHANNEL, VENT WINDOW DRIP, RH
main67546-76010
9010908295
main90109-08295
9011906817
main90119-06817
9014880076
main90148-80076
9015960303
main90159-60303
9018904200
main90189-04200
9018906245
main90189-06245
9026904070
main90269-04070
9033325001
main90333-25001
9095001808
main90950-01808
9095001A17
main90950-01A17
9356054025
main93560-54025
9415180640
main94151-80640

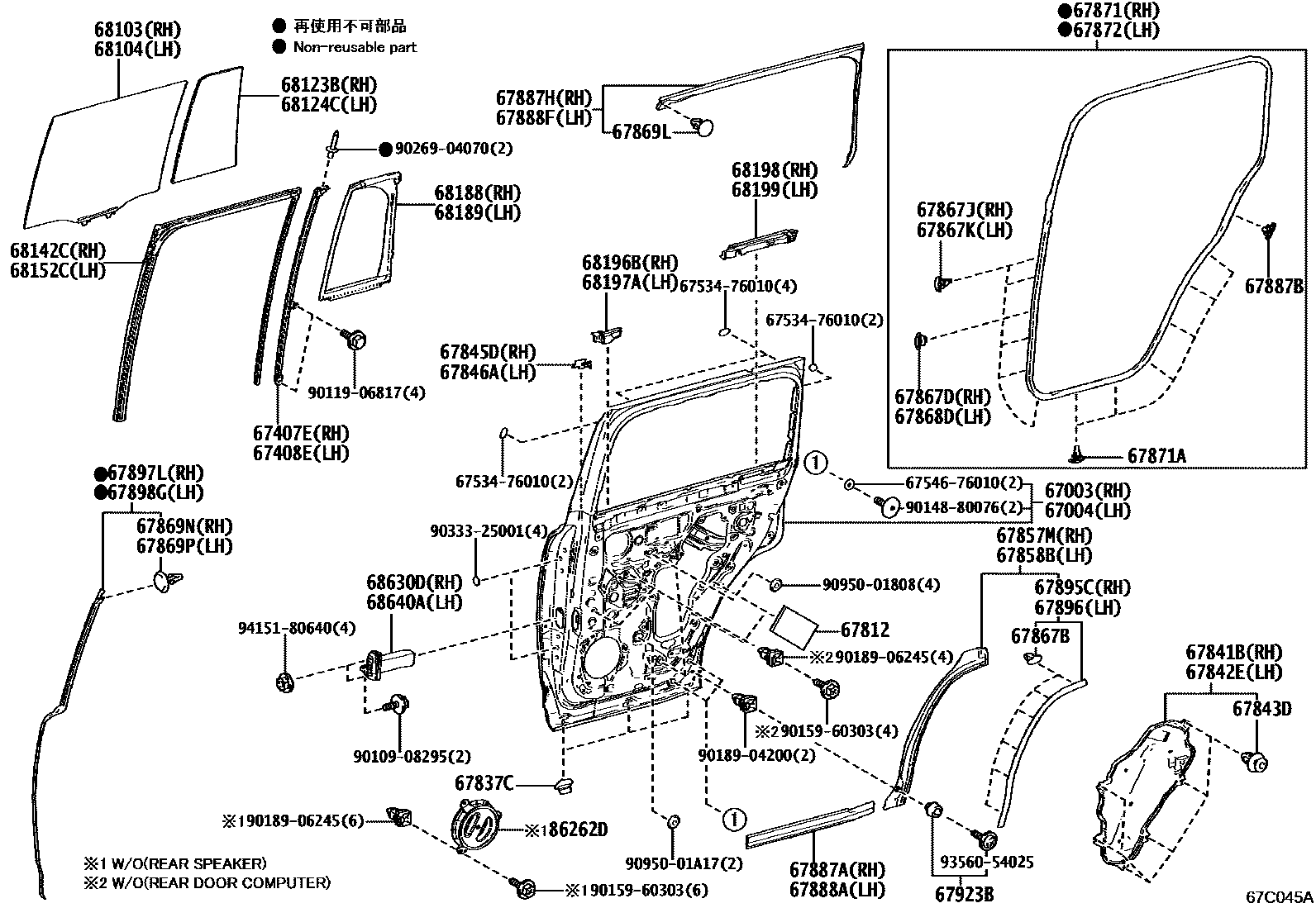

63 parts on this diagram · 2 diagrams in section
