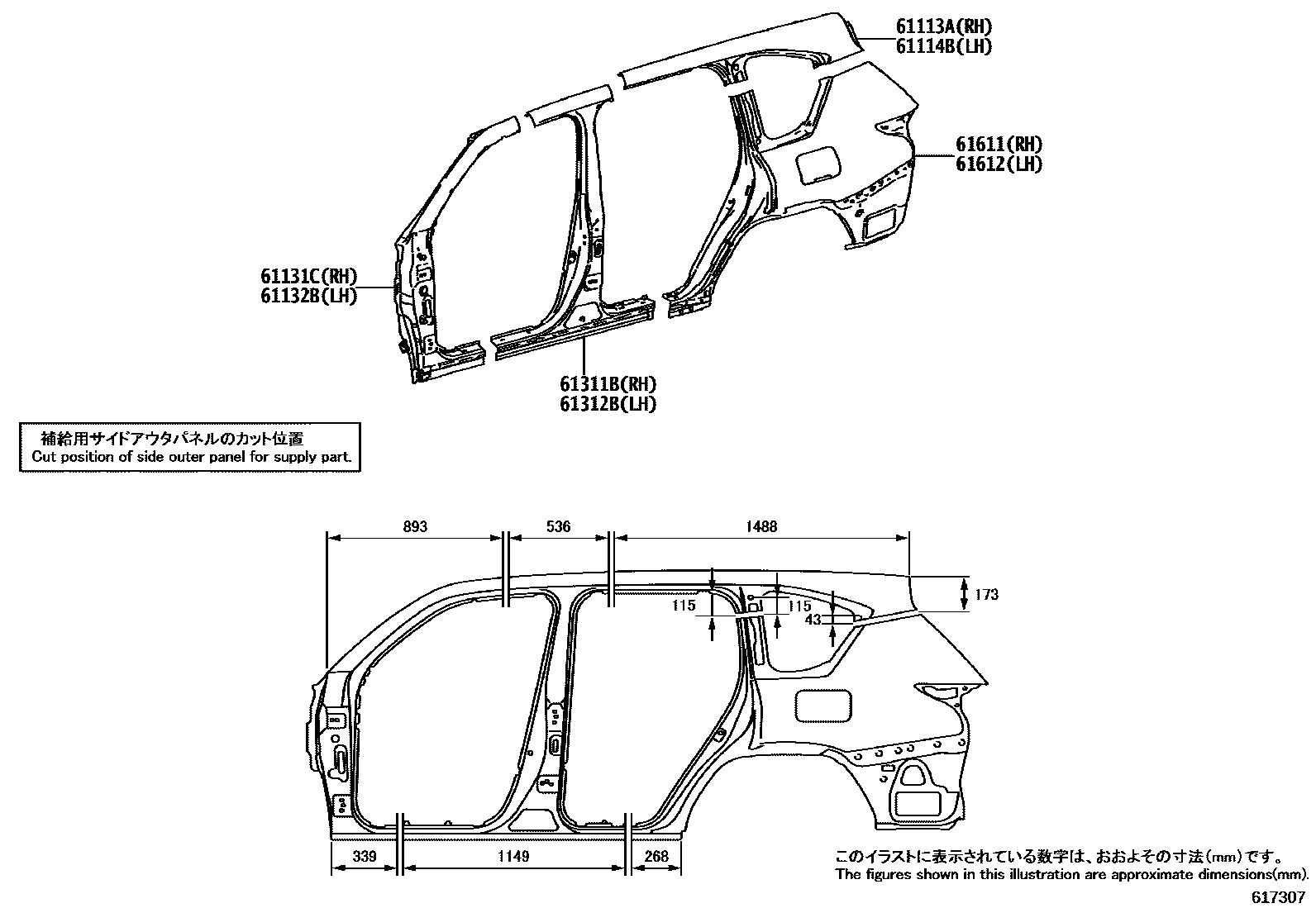

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH 0004 1INNER PANEL,LH

61113APANEL, SIDE, OUTER NO.2 RH

main61113-60080iFJA310,VJA310,VJH310¥15,800202112-202411

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-60060iFJA310,VJA310,VJH310¥15,800202112-202411

61131CPILLAR, FRONT BODY, OUTER RH

main61131-60360iFJA310,VJA310¥17,700202112-202411

61132BPILLAR, FRONT BODY, OUTER LH

main61132-60310iFJA310,VJA310¥17,700202112-202411

61311BPILLAR, CENTER BODY, OUTER RH

main61311-60200iFJA310,VJA310¥18,700202112-202411

61312BPILLAR, CENTER BODY, OUTER LH

main61312-60260iFJA310,VJA310¥18,700202112-202411

61611PANEL, QUARTER, RH

main61611-60C00iFJA310,VJA310¥67,100202112-202411

61612PANEL, QUARTER, LH

main61612-60B80iFJA310,VJA310,VJH310¥67,100202112-202411

8 parts on this diagram · 4 diagrams in section
