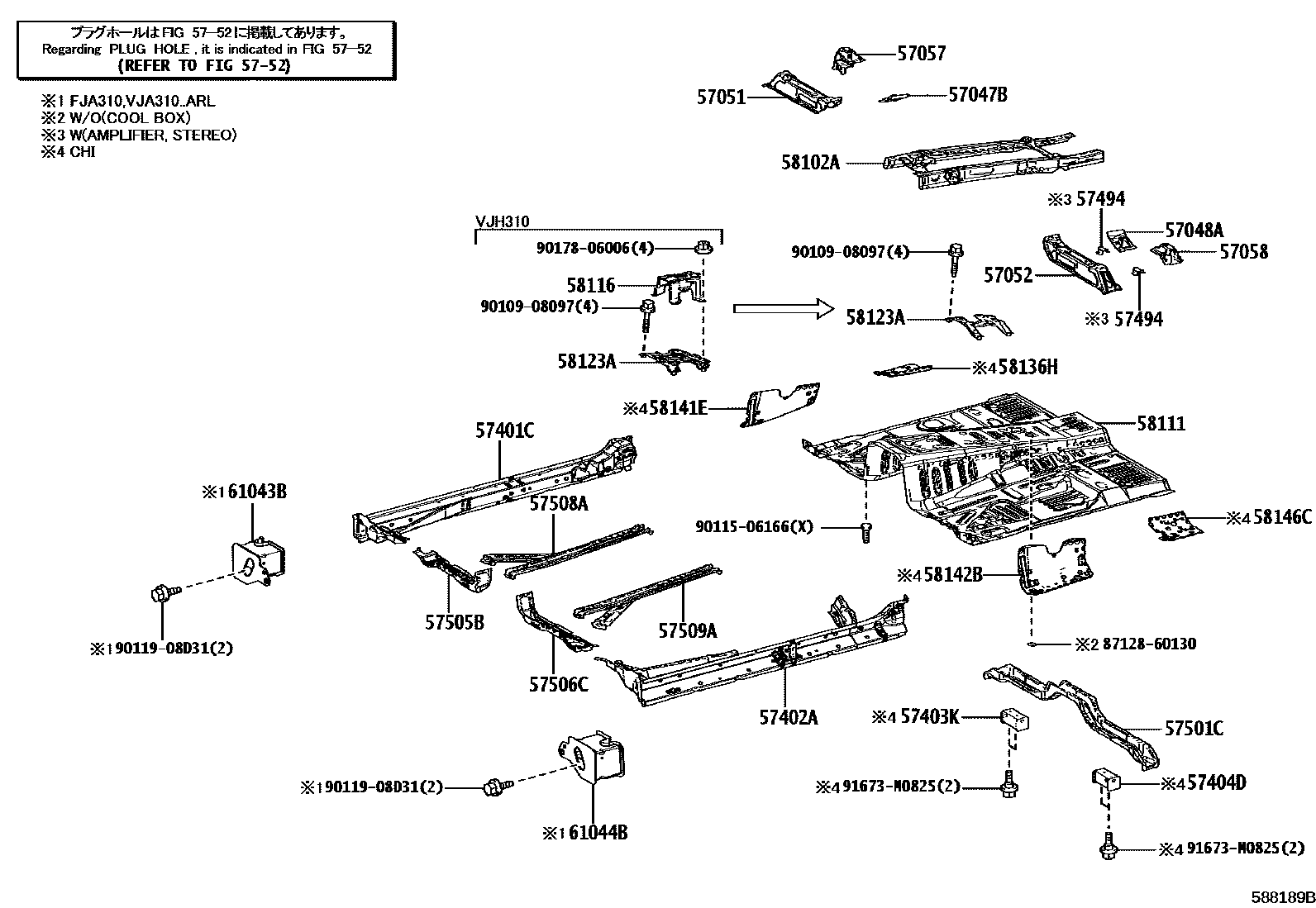

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1SIDE STEP

57047BBRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, RH

main57047-60010iFJA310,VJA310,VJH310..ARL,EUR,GCC202411

main57047-60020iVJH310..CHI202411

57048ABRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, LH

main57048-60010iFJA310,VJA310,VJH310..ARL,EUR,GCC202411

main57048-60020iVJH310..CHI202411

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60080iFJA310,VJA310,VJH310202411

main57051-60090iFJA310..GCC;VJA310..LHD202112-202411

EXTINGUISHER-WITH(ACCESSORY)&"EXECUTIVE"

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60080iFJA310,VJA310,VJH310202411

main57052-60090iVJA310,VJH310..ARL202411

"EXECUTIVE"

57057REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 RH

main57057-60010iFJA310,VJA310202112-202411

57058REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 LH

main57058-60010iFJA310,VJA310,VJH310202411

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-60140iFJA310,VJA310,VJH310..ARL,EUR,GCC202411

main57401-60150iVJH310..CHI202411

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-60150iFJA310,VJA310,VJH310..ARL,EUR,GCC202411

main57402-60160iVJH310..CHI202411

57403KMEMBER SUB-ASSY, FLOOR SIDE, INNER REAR RH

main57403-60040iVJH310..CHI202411

57404DMEMBER SUB-ASSY, FLOOR SIDE, INNER REAR LH

main57403-60040iVJH310..CHI202411

57494BRACE, FRONT FLOOR CROSS, NO.2 LH

main57494-60010×2iFJA310,VJA310,VJH310202411

57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-60010iFJA310,VJA310,VJH310..ARL,EUR,GCC202411

main57501-60020iVJH310..CHI202411

57505BREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH

main57505-60080iFJA310,VJA310202112-202411

57506CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH

main57506-60050iFJA310,VJA310,VJH310202411

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-60030iFJA310,VJA310,VJH310202411

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-60140iFJA310,VJA310202112-202411

main57509-60180iFJA310,VJA310,VJH310202411

5752

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60120iFJA310,VJA310202112-202411

main58102-60140iFJA310,VJA310,VJH310202411

58111PAN, FRONT FLOOR

main58111-60G10iFJA310,VJA310202112-202411

sub90950-01A49

main58111-60G11iFJA310,VJA310202411

main58111-60J80iVJH310202411

main58111-60G30iFJA310..GCC;VJA310..LHD202112-202411

EXTINGUISHER-WITH(ACCESSORY)&"EXECUTIVE"

sub90950-01A49

main58111-60G31iFJA310..GCC;VJA310..LHD202411

EXTINGUISHER-WITH(ACCESSORY)&"EXECUTIVE"

main58111-60J90iVJH310..GCC202411

EXTINGUISHER-WITH(ACCESSORY)&"EXECUTIVE"

58116PLATE, SHIFT CABLE MOUNTING

main58116-60010iVJH310..ARL202411

main58116-60020iVJH310..LHD202411

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-60110iFJA310,VJA310202112-202304

main58123-60111iFJA310,VJA310202411

main58123-60200iVJH310202411

58136HPANEL, FRONT FLOOR HOSING, REAR RH

main58136-60030iVJH310..CHI202411

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-60010iVJH310..CHI202411

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-60010iVJH310..CHI202411

58146CPANEL, FRONT FLOOR HOSING, REAR LH

main58146-60010iVJH310..CHI202411

61043BEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH

main61043-60010iFJA310,VJA310..ARL202112-202303

main61043-60011iFJA310,VJA310,VJH310..ARL,CHI202411

61044BEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

main61044-60010iFJA310,VJA310..ARL202112-202303

main61044-60011iFJA310,VJA310,VJH310..ARL,CHI202411

8712860130GROMMET, HEATER

main87128-60130

9010908097

main90109-08097

9011506166

main90115-06166

9011908D31

main90119-08D31

9017806006

main90178-06006

91673M0825

main91673-M0825

33 parts on this diagram · 2 diagrams in section
