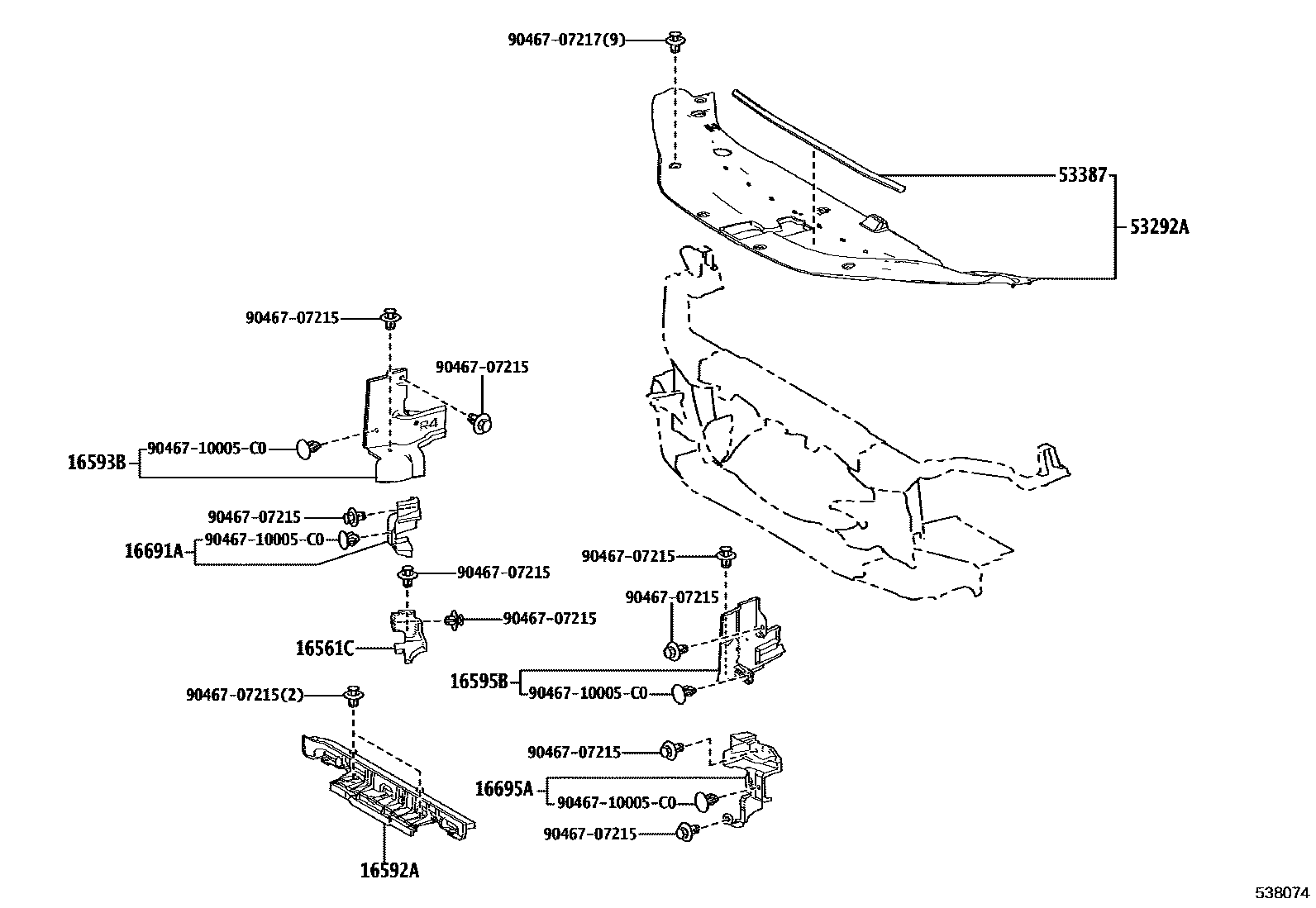

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1AIRGUIDE & RADIATOR SUPPORT C0003 1RADIATOR SUPPORT & FENDER APR0004 1RADIATOR SUPPORT & FENDER APR0006 1DASH PANEL 0007 1DASH PANEL 0008 1DASH PANEL 0009 1DASH PANEL

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-70020iF33AFTV,V35AFTS..FJA310,VJA310¥850202112-202411

16592AGUIDE, RADIATOR AIR, NO.3

main16592-70011iF33AFTV,V35AFTS..FJA310,VJA310¥3,850202112-202411

main16592-70030iV35AFTS..VJH310¥3,840202411

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-70050iF33AFTV,V35AFTS..FJA310,VJA310¥3,160202112-202411

main16593-70080iF33AFTV,V35AFTS..FJA310,VJA310,VJH310202411

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-70060iF33AFTV,V35AFTS..FJA310,VJA310¥2,400202112-202411

main16595-70090iV35AFTS..VJH310¥2,450202411

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-70010iF33AFTV,V35AFTS..FJA310,VJA310¥1,590202112-202411

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-70010iF33AFTV,V35AFTS..FJA310,VJA310¥2,020202112-202411

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-60220iFJA310,VJA310¥9,800202112-202411

main53292-60270iVJH310¥9,700202411

53387SEAL, HOOD TO RADIATOR SUPPORT

main53381-60170iFJA310,VJA310,VJH310¥460202112-202411

9046707215

main90467-07215¥80

9046707217

main90467-07217¥80

9046710005C0

main90467-10005C0

11 parts on this diagram · 8 diagrams in section
