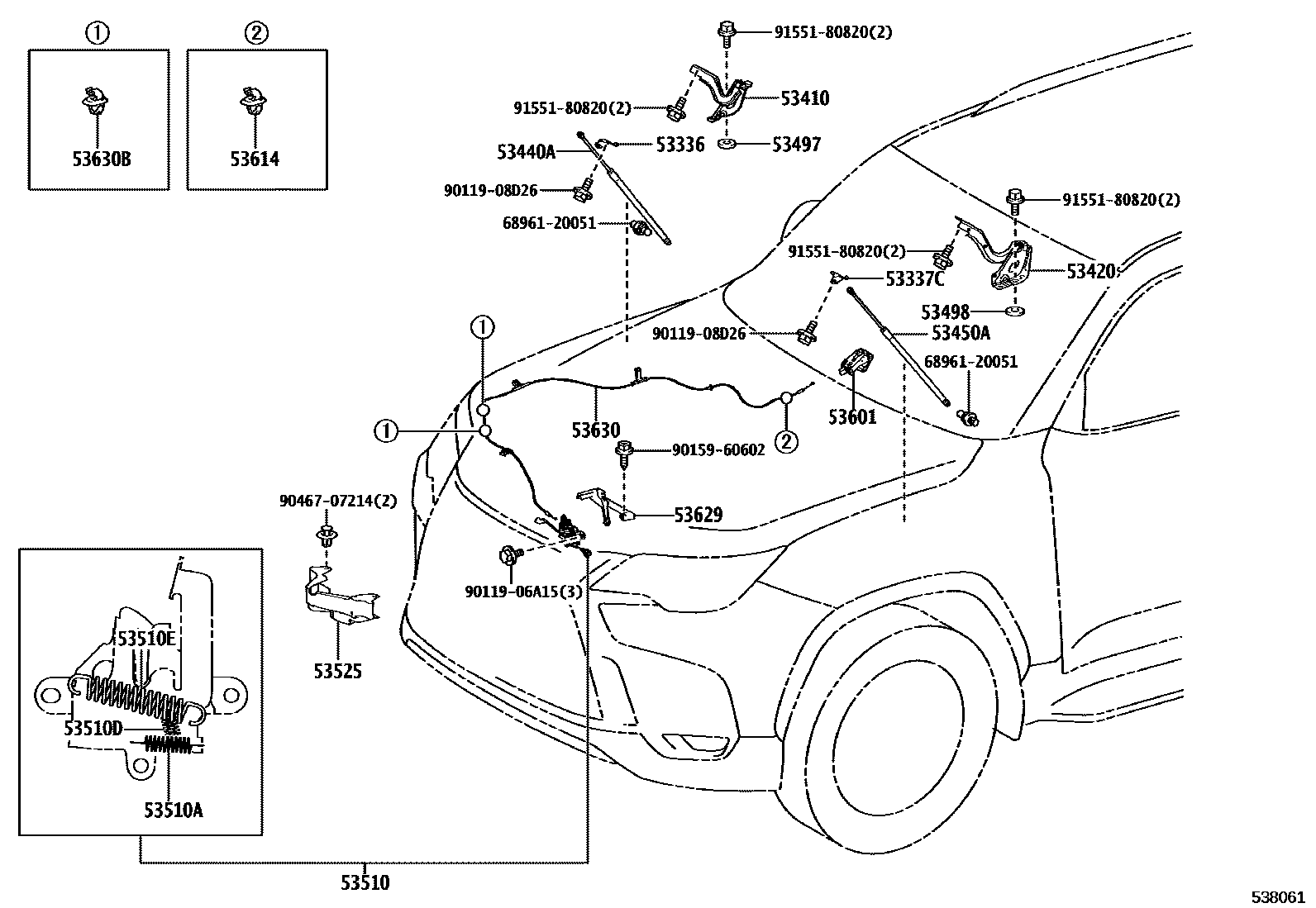

HOOD LOCK & HINGE

0001 1 0002 1

53336BRACKET, HOOD STAY, RH

main53336-60030iFJA310,VJA310202112-202411

53337CBRACKET, HOOD STAY, LH

main53337-60020iFJA310,VJA310,VJH310202411

53410HINGE ASSY, HOOD, RH

main53410-60190iFJA310,VJA310,VJH310202411

53420HINGE ASSY, HOOD, LH

main53420-60180iFJA310,VJA310,VJH310202411

53440ASUPPORT ASSY, HOOD, RH

main53440-0W510iFJA310,VJA310,VJH310202411

53450ASUPPORT ASSY, HOOD, LH

main53440-0W510iFJA310,VJA310,VJH310202411

53497PAD, HOOD HINGE, NO.1

main53497-50020×2iFJA310,VJA310,VJH310202411

T=1.0

53498PAD, HOOD HINGE, NO.2

main53497-50020×2iFJA310,VJA310,VJH310202411

T=1.0

53510LOCK ASSY, HOOD

main53510-60510iFJA310,VJA310,VJH310..ARL202411-202501

main53510-60520iFJA310,VJA310..LHD202112-202411

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iFJA310,VJA310202112-202411

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iFJA310,VJA310202112-202411

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iFJA310,VJA310,VJH310202411

WD=1.6,CW=12

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-60090iFJA310,VJA310202112-202411

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iFJA310,VJA310,VJH310202411

BLACK,TRIM0#,2#,3#,4#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-33700iFJA310,VJA310,VJH310..ARL202411

53629COVER, HOOD LOCK CONTROL CABLE

main53629-60100iFJA310,VJA310..ARL202112-202411

main53629-60101iFJA310,VJA310,VJH310..ARL202411

main53629-60110iFJA310,VJA310..LHD202112-202411

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-60220iFJA310,VJA310..ARL202112-202411

main53630-60230iFJA310,VJA310,VJH310..LHD202411

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×2iFJA310,VJA310,VJH310202411

6896120051BOLT, BACK DOOR STAY

main68961-20051

9011906A15

main90119-06A15

9011908D26

main90119-08D26

9015960602

main90159-60602

9046707214

main90467-07214

9155180820

main91551-80820

24 parts on this diagram · 2 diagrams in section
