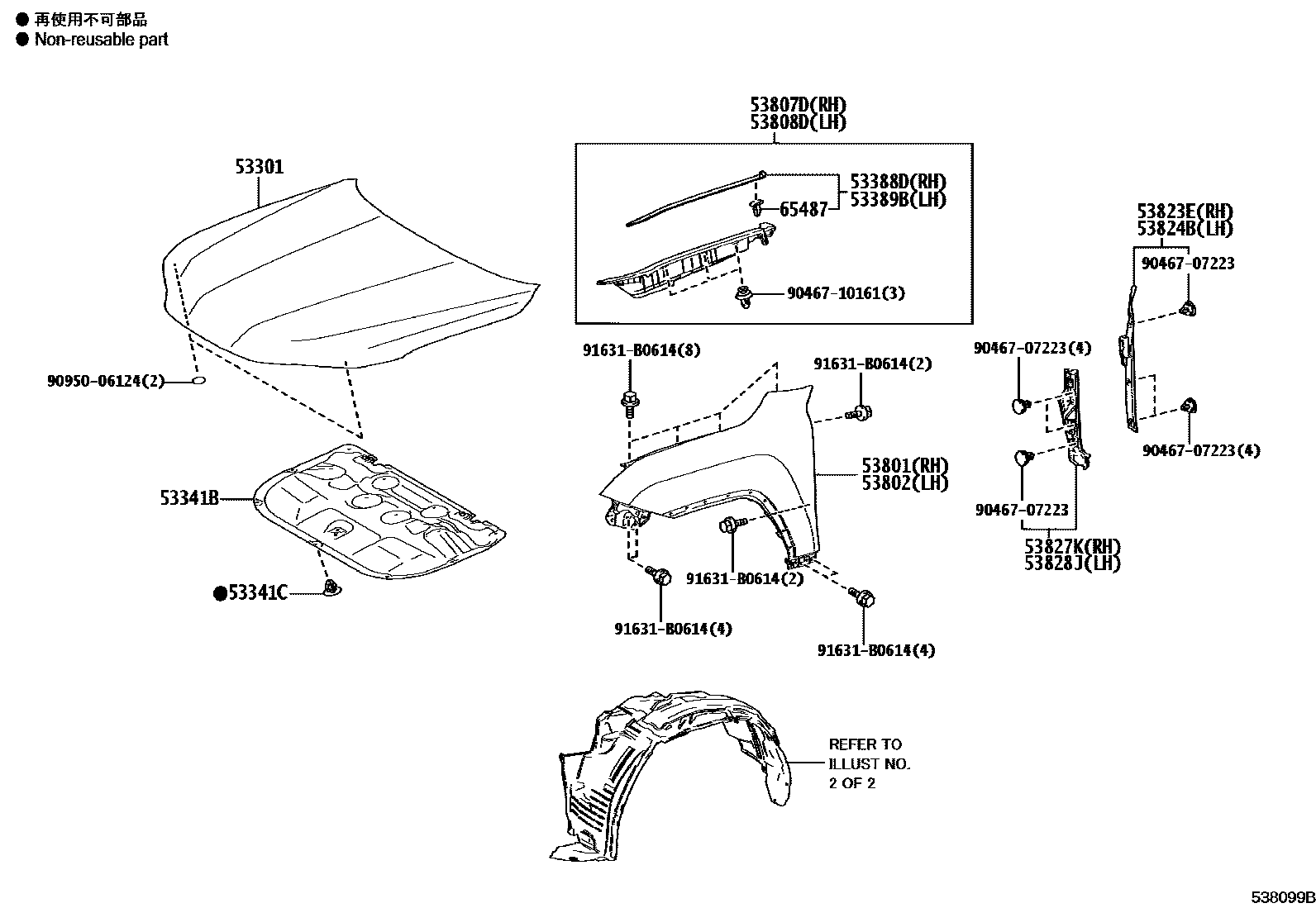

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-60780iFJA310,VJA310,VJH310202112-202411

53341BINSULATOR, HOOD

main53341-60490iVJA310,VJH310202112-202411

main53341-60500iFJA310202112-202411

53341CCLIP(FOR HOOD INSULATOR)

main53326-60050iFJA310,VJA310202112-202411

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-60111iFJA310,VJA310,VJH310202112-202411

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-60121iFJA310,VJA310,VJH310202112-202411

53801FENDER SUB-ASSY, FRONT RH

main53801-60E80iFJA310,VJA310,VJH310202112-202411

53802FENDER SUB-ASSY, FRONT LH

main53802-60E80iFJA310,VJA310,VJH310202112-202411

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-60210iFJA310,VJA310,VJH310202112-202411

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-60160iFJA310,VJA310,VJH310202112-202503

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-60030iFJA310,VJA310,VJH310202112-202411

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-60030iFJA310,VJA310,VJH310202112-202411

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-60050iFJA310,VJA310,VJH310202112-202411

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-60080iFJA310,VJA310,VJH310202112-202411

65487CLIP, CORNER PROTECTOR

main65487-60010iFJA310,VJA310,VJH310202112-202411

9046707223

main90467-07223

9046710161

main90467-10161

9095006124

main90950-06124

91631B0614

main91631-B0614

18 parts on this diagram · 2 diagrams in section
