EXHAUST PIPE
17118ESTAY, MANIFOLD
17341WHOSE, AIR, NO.1
SAUDI ARABIA SPEC&EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
QATAR SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
PERU SPEC&EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)
17342PHOSE, AIR, NO.2
OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
PERU SPEC&EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)
SAUDI ARABIA SPEC&EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
QATAR SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
17401PIPE SUB-ASSY, EXHAUST, FRONT
QATAR SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
SAUDI ARABIA SPEC&EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
NEW ZEALAND SPEC
17402PIPE SUB-ASSY, EXHAUST, FRONT NO.2
NEW ZEALAND SPEC
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
SAUDI ARABIA SPEC&EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
QATAR SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
17420PIPE ASSY, EXHAUST, CENTER
EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR)
EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
sub17420-70470
17420MNUT, LOCK(FOR EXHAUST PIPE)
17420XGASKET, EXHAUST PIPE, CENTER
EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR)
17430PIPE ASSY, EXHAUST, TAIL
EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR)
EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
17435INSULATOR, EXHAUST PIPE HEAT
OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
QATAR SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
PERU SPEC&EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)
SAUDI ARABIA SPEC&EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
17451GASKET, EXHAUST PIPE
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)
EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR)
17451AGASKET, EXHAUST PIPE, NO.2
QATAR SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
SAUDI ARABIA SPEC&EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
17452CLAMP, EXHAUST PIPE
17565SUPPORT, EXHAUST PIPE, NO.5
EXH.EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS&EGR),*680
EXH.EMISSION CONTROL-EURO6C,WITHOUT(OBD),WITH(EGR)
EXHAUST EMISSION CONTROL-EURO 2, WITHOUT(OBD), WITH(EGR)
EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS & EGR)
17565ASUPPORT, EXHAUST PIPE, NO.4
17567CUSHION, EXHAUST PIPE SUPPORT
17569CBOLT, EXHAUST PIPE SUPPORT
17570BRACKET ASSY, EXHAUST PIPE SUPPORT
5151
8401
9010510590
main90105-10590
9010910182
main90109-10182
9012610049
main90126-10049
9017810043
main90178-10043
9017910070
main90179-10070
9017910180
main90179-10180
9050135032
main90501-35032
9050135037
main90501-35037
9167180614
main91671-80614
9167281025
main91672-81025
91673L1045
main91673-L1045
9415180600
main94151-80600
9613741501
main96137-41501

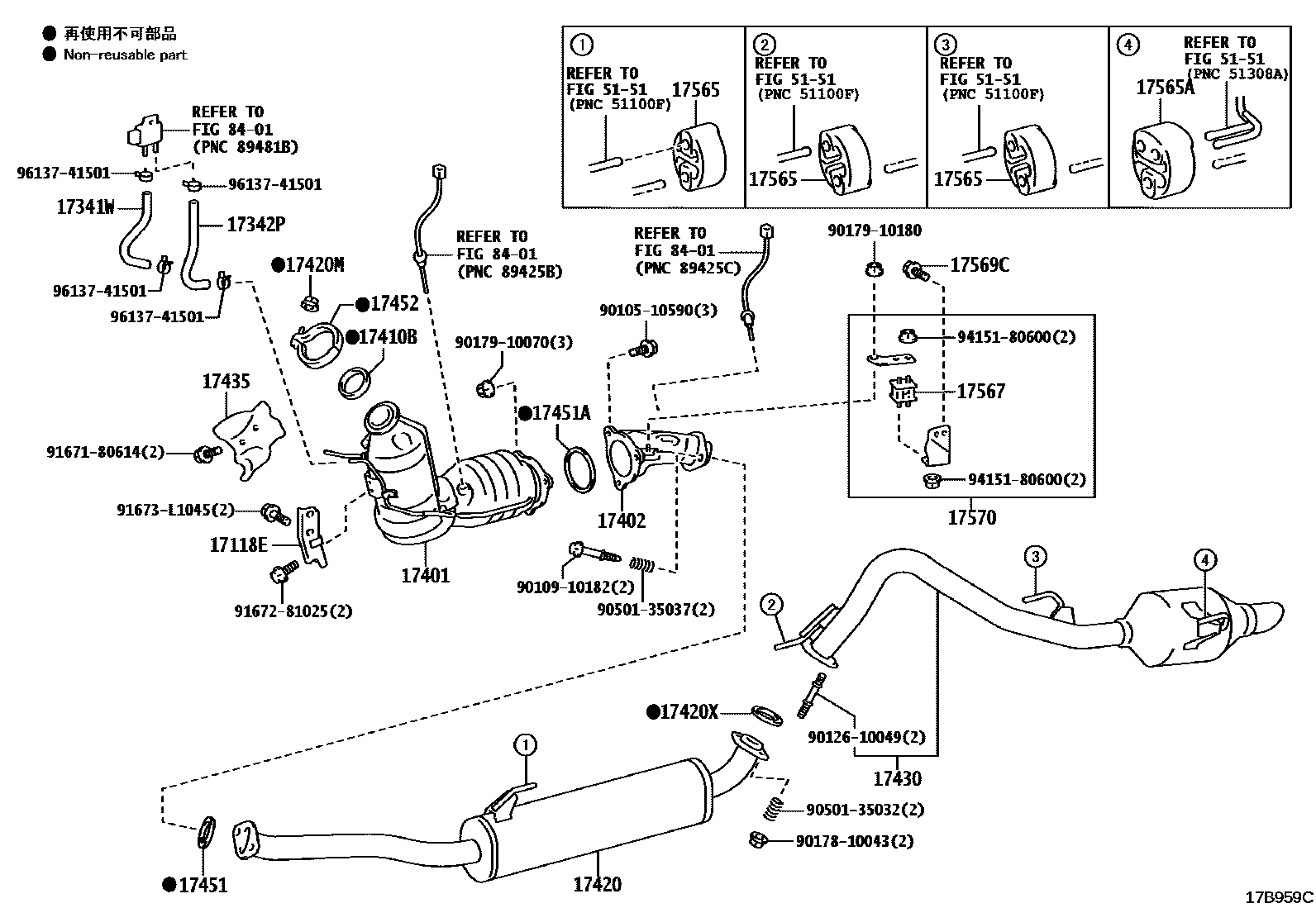

35 parts on this diagram · 5 diagrams in section
