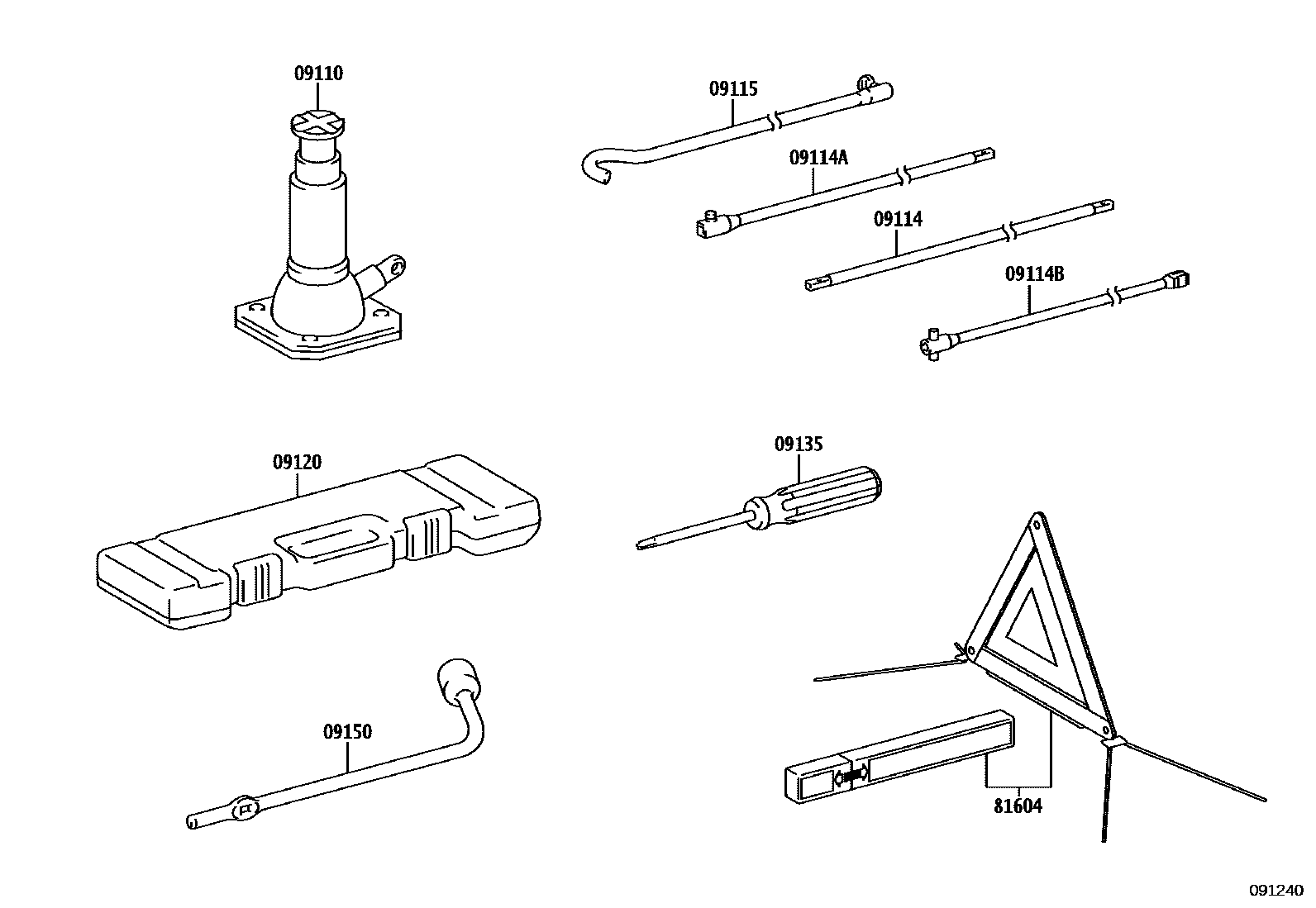

STANDARD TOOL

09110JACK ASSY

main09111-60150iFJA310,VJA310,VJH310202112-202411

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-35040iFJA310,VJA310,VJH310202112-202411

09114AEXTENSION SUB-ASSY, JACK HANDLE, NO.2

main09114-60070iFJA310,VJA310,VJH310202112-202411

09114BEXTENSION SUB-ASSY, JACK HANDLE, NO.3

main09114-60090iFJA310,VJA310,VJH310202112-202411

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110iFJA310,VJA310,VJH310202112-202411

09120BAG, TOOL

main09120-60260iFJA310,VJA310,VJH310202112-202411

09135DRIVER, SCREW

main09135-50060iFJA310,VJA310,VJH310202112-202411

09150WRENCH, HUB NUT BOX

main09150-26040iFJA310,VJA310,VJH310202112-202411

81604REFLECTOR SET, TRIANGLE

main81604-33010iVJH310..CHI202411

9 parts on this diagram · 1 diagram in section
