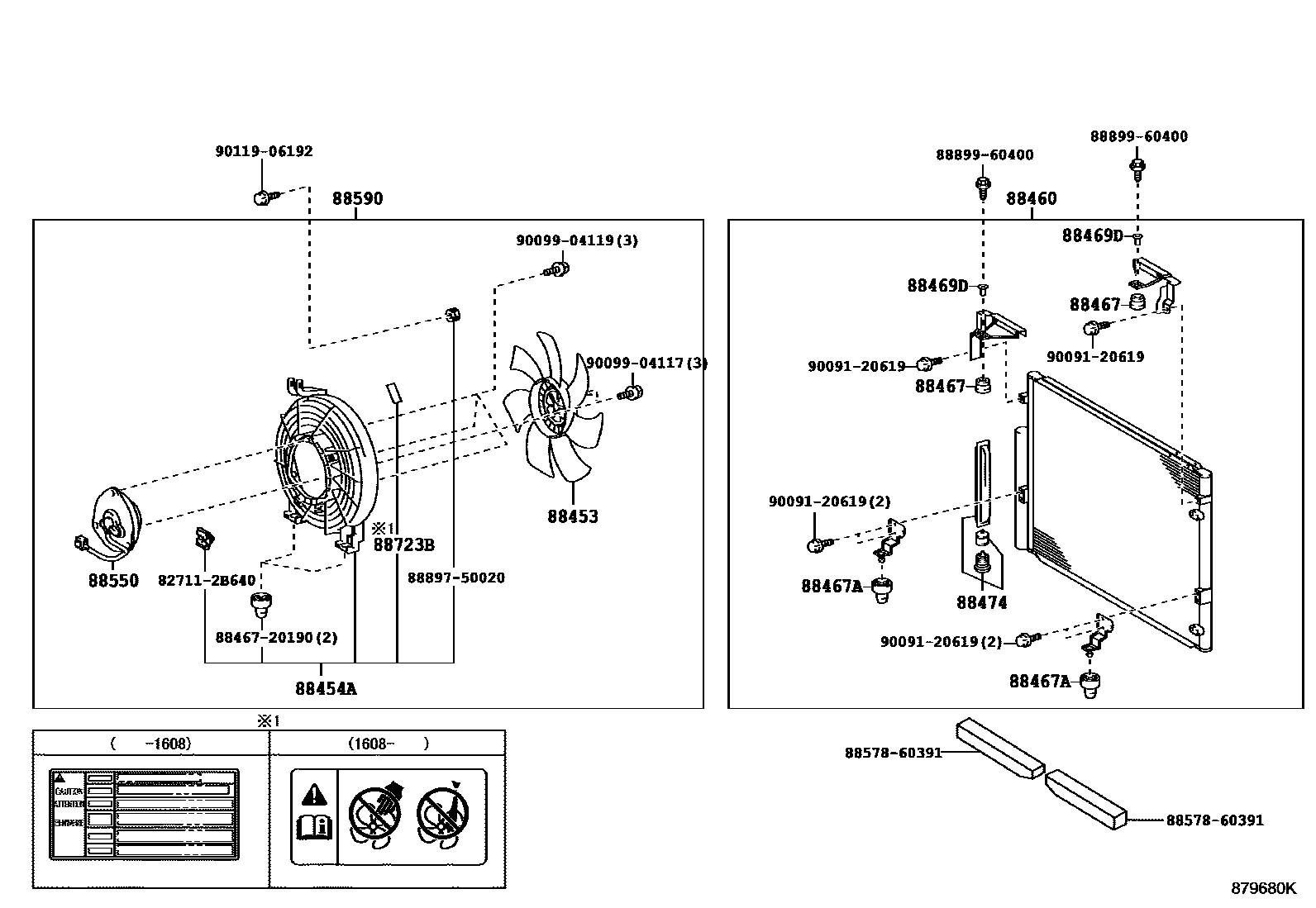

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER & FUN SHROUD 0002 1CONDENSER & FUN SHROUD 0003 1FRONT DUAL 0004 1FRONT SINGLE,W(COOL BOX) 0005 1FRONT SINGLE,W/O(COOL BOX) 0006 1FRONT DUAL 0007 1FRONT SINGLE,W(COOL BOX) 0008 1FRONT SINGLE,W/O(COOL BOX) 0009 1FRONT SINGLE,W(COOL BOX) 0010 1FRONT SINGLE,W/O(COOL BOX) 0011 1FRONT DUAL 0012 1FRONT DUAL 0013 1FRONT SINGLE,W(COOL BOX) 0014 1FRONT SINGLE,W/O(COOL BOX) 0015 1W/O(REAR),W(COOL BOX) 0016 1REAR,W(COOL BOX) 0017 1REAR,W/O(COOL BOX)

88453FAN, COOLING (FOR CONDENSER)

main88453-60020iVDJ200..LHD..5F..GEN..LUB200709-202104

AIR CONDITIONER-FR AUTO DUAL CONTROL & RR MANUAL COOLER

main88453-60020iVDJ200..LHD..5F..GEN..LUB200709-202104

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

main88453-60020iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201201-202103

AIR CONDITIONER-FR AUTO DUAL CONTROL

main88453-60020iVDJ200..GXR..ARL201008-202104

88454ASHROUD, FAN

main88454-60050iGRJ200..GEN..LUB201201-201209

AIR CONDITIONER-FR AUTO DUAL CONTROL

main88454-60050iGRJ200..GEN..LUB200709-201209

AIR CONDITIONER-FR AUTO DUAL CONTROL & RR MANUAL COOLER

main88454-60050iGRJ200..LHD..08S..GEN201008-201201

main88454-60050iGRJ200..LHD..08S..GEN200709-201008

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

main88454-60051iVDJ200..LHD..GXR..GEN201209-201608

AIR CONDITIONER-FR AUTO DUAL CONTROL

sub88454-60052

main88454-60051iVDJ200..LHD..GXR..GEN201209-201608

AIR CONDITIONER-FR AUTO DUAL CONTROL & RR MANUAL COOLER

sub88454-60052

main88454-60051iVDJ200..LHD..GXR..GEN201508-201608

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

sub88454-60052

main88454-60052iVDJ200..LHD..6FC..GXR..GEN201608-202104

AIR CONDITIONER-FR AUTO DUAL CONTROL & RR MANUAL COOLER

main88454-60052iGRJ200..GEN..LUB201608-202103

AIR CONDITIONER-FR AUTO DUAL CONTROL

main88454-60052iGRJ200..GEN..LUB201608-202104

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

main88454-60052iVDJ200..GXR..ARL201808-202104

88460CONDENSER ASSY, COOLER

main88460-60400iURJ202..ARL,GEN;GRJ200..LHD..08S..GEN;VDJ200..LHD..05S..LUB;VDJ200..08S..GX..(ARL,GEN);GRJ200,VDJ200..(STD,VX)..(ARL,GEN)..G200709-202006

main88460-60410iGRJ200,URJ20#,VDJ200..GCC200709-202006

main88460-60570iURJ202..VX..GEN;VDJ200..RHD..LUB;VDJ200..LHD..6FC..GEN202006-202104

main88460-60580iGRJ200..5F..GCC;URJ202..VX..GCC;VDJ200..(GX,VX,VXR)..GCC202006-202104

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iGRJ200..RHD..05S200709-202008

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-60010iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-202008

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iGRJ200..09S;VDJ200..ARL,GEN;VDJ200..09S..LUB;GRJ200..(05S,08S)..5FC;GRJ200,URJ202..(05S,08S)..(ARL,GEN)200709-202008

88474DRYER, COOLER

main88474-12030iGRJ200..RHD..05S200709-202104

main88474-17010iGRJ200,URJ20#..ATM..GCC;GRJ200,VDJ200..GCC..SOB..G;GRJ200,VDJ200..08S..(5F,6FC)..GCC200709-202104

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-60110iGRJ200..GEN..LUB200709-202104

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

main88550-60110iVDJ200..LHD..5F..GEN..LUB201201-202103

AIR CONDITIONER-FR AUTO DUAL CONTROL

main88550-60110iVDJ200..LHD..5F..GEN..LUB200709-202104

AIR CONDITIONER-FR AUTO DUAL CONTROL & RR MANUAL COOLER

main88550-60110iVDJ200..GXR..ARL201008-202104

88590BLOWER ASSY, W/SHROUD

main88590-60080iGRJ200..LHD..08S..GEN200709-201008

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

sub88590-60081

main88590-60080iGRJ200..LHD..08S..GEN200709-201208

AIR CONDITIONER-FR AUTO DUAL CONTROL & RR MANUAL COOLER

sub88590-60081

main88590-60080iURJ202,VDJ200..VX;GRJ200,URJ200..08S;URJ202,VDJ200..GX..GCC..LUB201201-201208

AIR CONDITIONER-FR AUTO DUAL CONTROL

sub88590-60081

main88590-60080iGRJ200..LHD..08S..GEN201008-201201

sub88590-60081

main88590-60081iVDJ200..LHD..GXR..GEN201209-201607

AIR CONDITIONER-FR AUTO DUAL CONTROL

sub88590-60082

main88590-60081iVDJ200..LHD..GXR..GEN201209-201607

AIR CONDITIONER-FR AUTO DUAL CONTROL & RR MANUAL COOLER

sub88590-60082

main88590-60081iVDJ200..LHD..GXR..GEN201508-201607

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

sub88590-60082

main88590-60082iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201608-202104

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

main88590-60082iVDJ200..GXR..ARL201808-202104

main88590-60082iVDJ200..LHD..6FC..GXR..GEN201608-202104

AIR CONDITIONER-FR AUTO DUAL CONTROL & RR MANUAL COOLER

main88590-60082iVDJ200..LHD..5F..GEN..LUB201608-202103

AIR CONDITIONER-FR AUTO DUAL CONTROL

88723BLABEL, COOLER SERVICE CAUTION

main16793-28020iGRJ200..RHD..08S200709-201008

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

sub16793-36040

main16793-28020iVDJ200..RHD..08S..5F;GRJ200..LHD..08S..GEN200709-201209

AIR CONDITIONER-FR AUTO DUAL CONTROL & RR MANUAL COOLER

sub16793-36040

main16793-28020iGRJ200..LHD..08S..GEN201008-201201

sub16793-36040

main16793-28020iURJ202,VDJ200..VX;GRJ200,URJ200..08S;URJ202,VDJ200..GX..GCC..LUB201201-201209

AIR CONDITIONER-FR AUTO DUAL CONTROL

sub16793-36040

main16793-31070iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201608-202104

AIR CONDITIONER-FR AUTO DUAL CONTROL & RR MANUAL COOLER

main16793-31070iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201608-202103

AIR CONDITIONER-FR AUTO DUAL CONTROL

main16793-31070iVDJ200..LHD..5F..GEN..LUB201608-202104

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

main16793-31070iVDJ200..GXR..ARL201808-202104

main16793-38010iURJ202,VDJ200..GX..ARL;VDJ200..LHD..08S..GX..GEN201209-201608

AIR CONDITIONER-FR AUTO DUAL CONTROL & RR MANUAL COOLER

sub16793-31070

main16793-38010iVDJ200..LHD..GXR..GEN201508-201608

AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)

sub16793-31070

main16793-38010iVDJ200..LHD..GXR..GEN201209-201608

AIR CONDITIONER-FR AUTO DUAL CONTROL

sub16793-31070

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846720190CUSHION, COOLER CONDENSER, NO.1

main88467-20190

8857860391PAKING, COOLER AIR DUCT

main88578-60391

8889750020VALVE, COOLER MAGNET

main88897-50020

8889960400COVER, EVAPORATOR

main88899-60400

9009120619

main90091-20619

9009904117

main90099-04117

9009904119

main90099-04119

9011906192

main90119-06192

19 parts on this diagram · 17 diagrams in section
