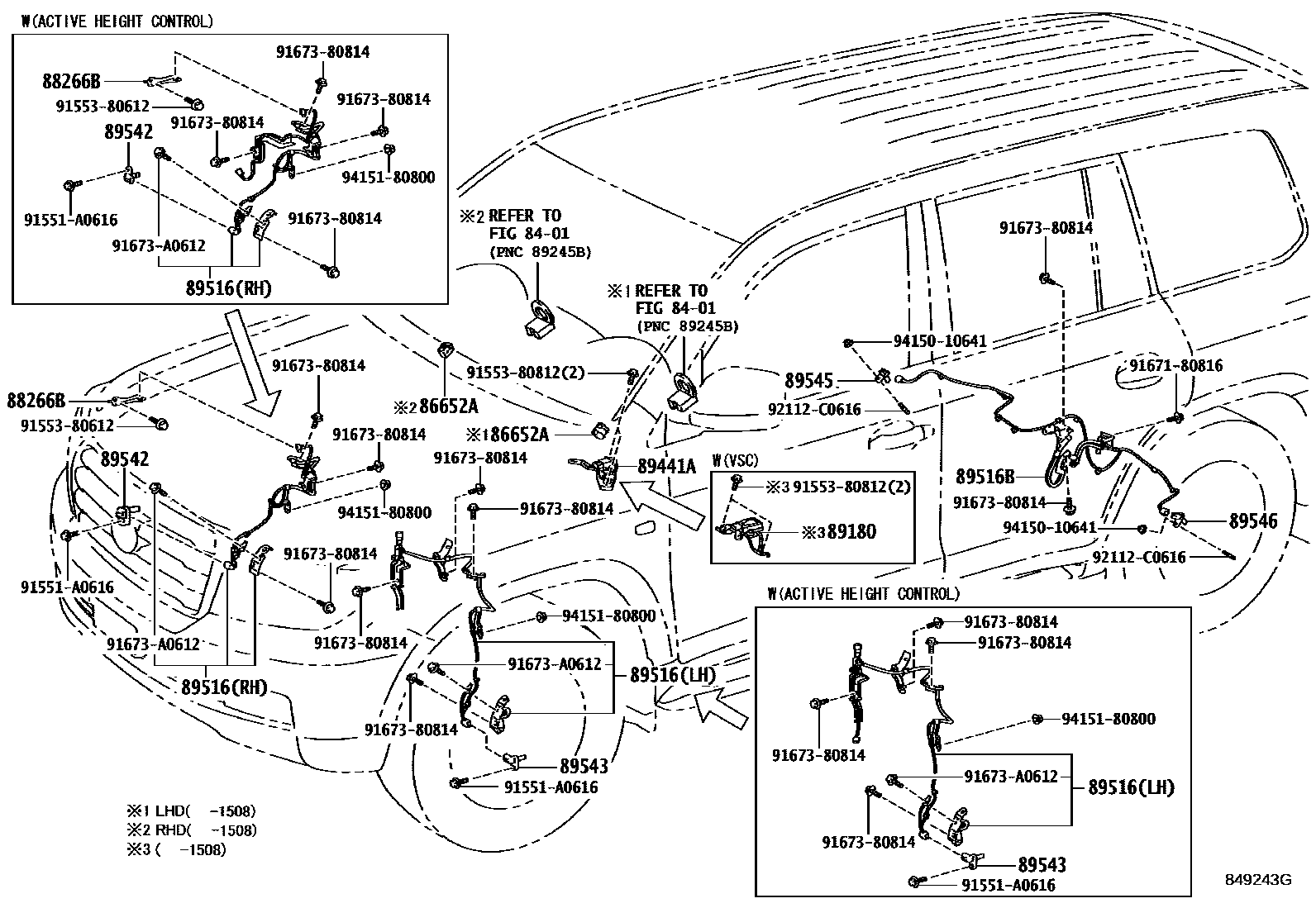

ABS & VSC
8401
86652ABUZZER ASSY, SKID CONTROL
88266BCLAMP, SKID CONTROL SENSOR, NO.1
89180SENSOR ASSY, YAWRATE
89441ASENSOR, DECELERATION
main89440-60140iVDJ200..08S..5F;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB;GRJ200,VDJ200..5F..SOB..G201109-201508
main89440-60170iGRJ200..09S..SOB;GRJ200..05S..GEN;VDJ200..5F..GCC..LUB;VDJ200..RHD..(05S,08S)..5F201508-202104
GCC SPEC(UAE,BAHRAIN)
89516WIRE, SKID CONTROL SENSOR
main89516-60110iURJ202..ARL,GEN;GRJ200..LHD..08S..GEN;VDJ200..LHD..05S..LUB;VDJ200..08S..GX..(ARL,GEN);GRJ200,VDJ200..(05S,08S)..(STD,VX)..G201109-201508
RH
LH
RH
main89516-60220iGRJ200,URJ20#..ATM..GCC;GRJ200,VDJ200..09S..SOB..G;GRJ200,VDJ200..08S..(5F,6FC)..GCC201109-201508
LH
URBAN STYLE/TRD-PACKAGE(20INCH)&STEERING-WITH(POWER STEERING & VGRS & VFC & AVS)&TIRE & DISC WHEEL-285/50R20, 8.5J, ALUMINUM,RH
WITH(AVS)&STEERING-WITH(POWER STEERING & VGRS & VFC & AVS)&TIRE & DISC WHEEL-285/50R20, 8.5J,ALUMINUM,CHROME PAINTED,LH
89516BWIRE, SKID CONTROL SENSOR
main89516-60130iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202103
89542SENSOR, SPEED, FRONT RH
main89542-60050iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
main89542-60050iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202103
89546SENSOR, SPEED, REAR LH
main89543-60050iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508
91551A0616
main91551-A0616
9155380612
main91553-80612
9155380812
main91553-80812
9167180816
main91671-80816
9167380814
main91673-80814
91673A0612
main91673-A0612
92112C0616
main92112-C0616
9415010641
main94150-10641
9415180800
main94151-80800
20 parts on this diagram · 1 diagram in section
