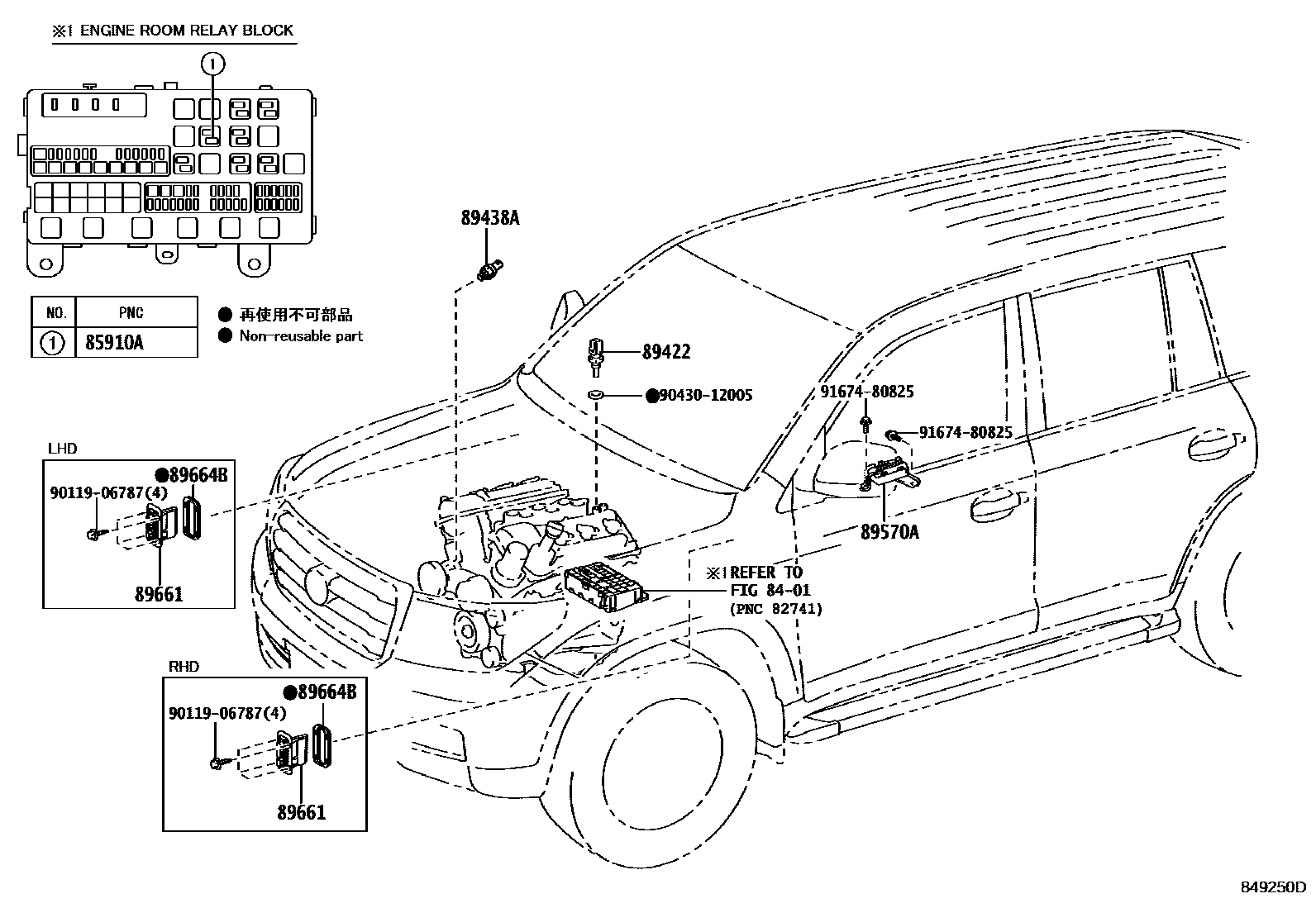

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iGRJ200..RHD..05S200709-201201

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGRJ200..RHD..05S200709-202104

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G200709-201201

main89448-34010iUZJ200200709-200802

sub89448-34020

main89448-34020iGRJ200,URJ20#200803-202104

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60150iURJ200201007-201201

main89570-60160iGRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..G200709-201201

89661COMPUTER, ENGINE CONTROL

main89661-60F50iURJ200201007-201201

main89661-60G40iGRJ200..K200709-201201

main89661-60G50iGRJ200..5FC200709-201201

main89661-60J30iUZJ200..LHD200709-201201

main89661-60J40iUZJ200..ARL200709-201201

main89661-60Q70iURJ202..ARL201201-201508

main89661-60Q90iURJ202..LHD201201-201508

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITHOUT(OBD)

main89661-60R40iURJ200201201-201308

main89661-60R60iGRJ200..5F201201-201508

main89661-60R70iGRJ200..5FC201201-201508

main89661-60U80iURJ200201308-201508

main89661-60Y10iGRJ200..6FC201708-202104

main89661-60Y50iURJ200201508-202104

main89661-60Z20iURJ202..ARL201508-202103

main89661-60Z40iURJ202..VX..ARL201508-201606

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2, WITHOUT(OBD)

sub89661-60Z41

main89661-60Z41iURJ202..VX..GCC;URJ202..VXR..GEN201607-202103

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2, WITHOUT(OBD)

main89661-60Z41iURJ202..VX..GEN;URJ202..(GXR,VXR)..GCC201607-202104

main89661-60Z80iGRJ200..5F201508-202103

main89661-60Z90iGRJ200..5FC201508-201707

89664BSEAL, ENGINE CONTROL COMPUTER

main89664-34010iGRJ200..09S..SOB;URJ202..GXR..GCC;GRJ200,URJ200..ATM;URJ202..VXR..(ARL,GCC);GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104

9011906787

main90119-06787

9043012005

main90430-12005

9167480825

main91674-80825

10 parts on this diagram · 7 diagrams in section
