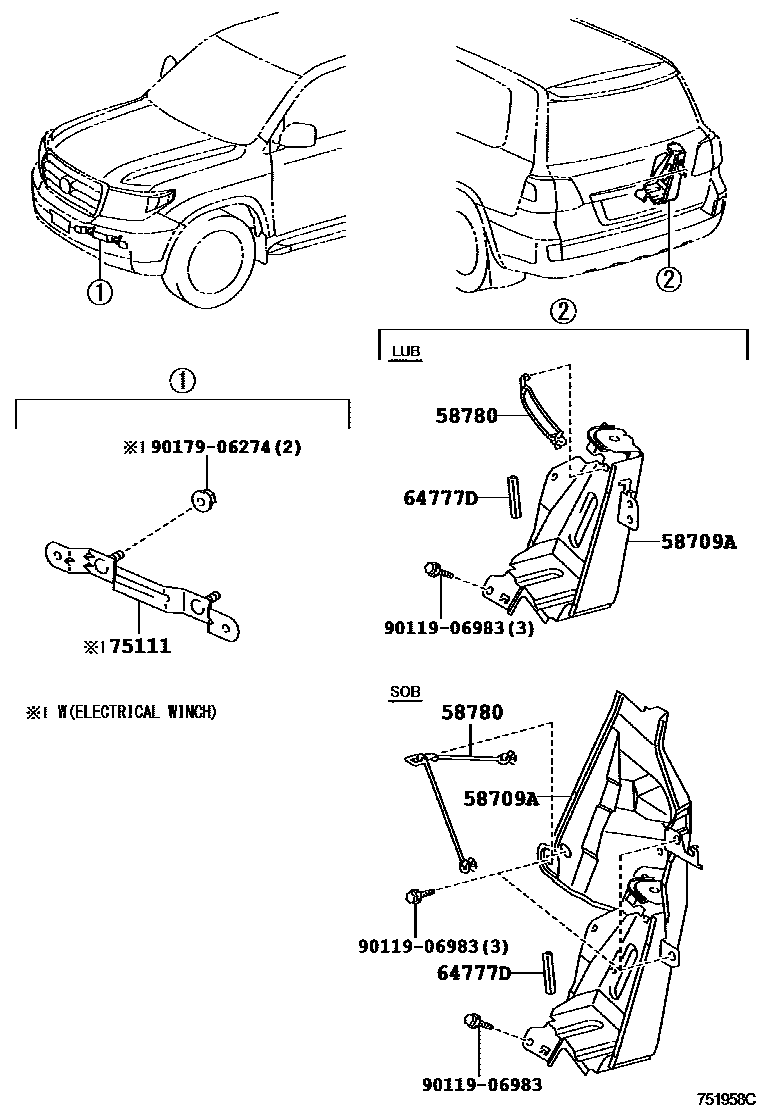

TOOL BOX & LICENSE PLATE BRACKET

58709ACARRIER SUB-ASSY, JACK

main58709-60070iURJ202..VX..GEN;VDJ200..RHD..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

main58709-60110iGRJ200,VDJ200..SOB..G201109-201508

58780BAND ASSY, TOOL BOX

main58780-60030iGRJ200,VDJ200..K201109-201201

main58780-95J01iURJ202..VX..GEN;VDJ200..RHD..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

64777DPROTECTOR, QUARTER, INNER

main64778-60070iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202103

75111BRACKET, FRONT LICENSE PLATE

main75111-60200iVDJ200..RHD..05S..G201008-201201

main75111-60220iVDJ200..5F..GEN;GRJ200..08S..5FC;VDJ200..5F..GCC..LUB;VDJ200..LHD..6FC..GX..GEN;GRJ200,URJ202..LHD..(5F,6FC)..(GX,STD)201201-201508

ELECTRICAL WINCH-WITH

main75111-60240iVDJ200..RHD..5F..LUB201508-201708

ELECTRICAL WINCH-WITH&SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME

9011906983

main90119-06983

9017906274

main90179-06274

6 parts on this diagram · 1 diagram in section
