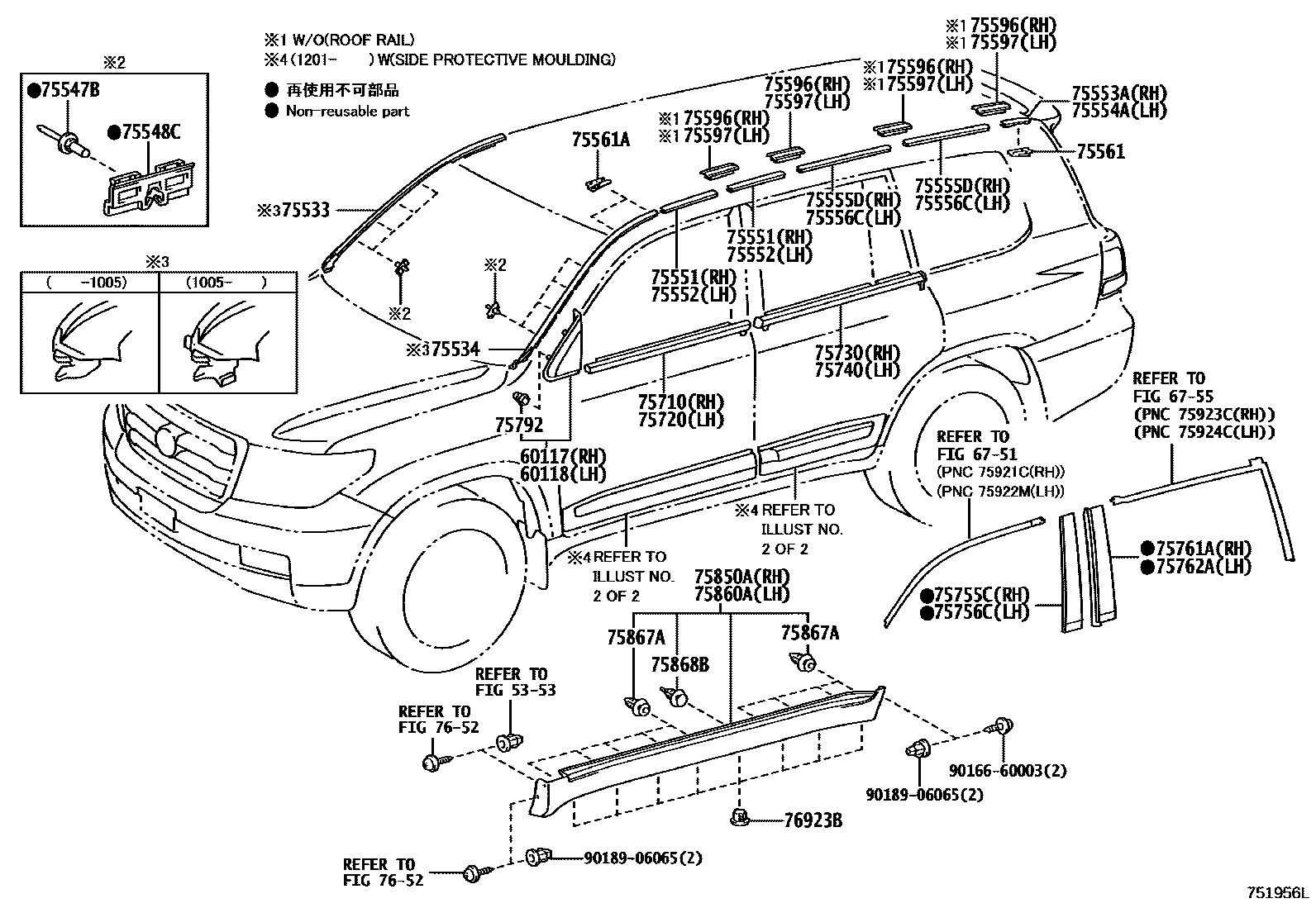

MOULDING
5353
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
6751
6755
75533MOULDING, WINDSHIELD, OUTSIDE RH
sub75533-60100
sub75533-60082
main75533-60082iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201103-202104
75534MOULDING, WINDSHIELD, OUTSIDE LH
sub75534-60080
sub75534-60072
main75534-60072iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201103-202104
75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
main75547-51021iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-202104
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
main75551-60110iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
main75551-60110iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
sub75561-60010
sub75561-60030
sub75561-60031
main75561-60031iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201612-202104
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
sub75561-60010
sub75561-60030
sub75561-60031
main75561-60031iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201612-202104
75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
ROOF RACK-ROOF RAIL ONLY
75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
ROOF RACK-ROOF RAIL ONLY
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-60070iVDJ200..09S..SOB;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..GXR..(ARL,GEN)200709-202104
main75710-60080iURJ200;URJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..(VX,VXR)..(ARL,GEN)201508-202104
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-60080iURJ200;URJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..(VX,VXR)..(ARL,GEN)201508-202104
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-60050iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-202104
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-60080iURJ200;URJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..(VX,VXR)..(ARL,GEN)201508-202104
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
sub75755-60061
main75755-60061iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201710-202104
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
sub75756-60061
main75756-60061iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201710-202104
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
NO PAINT REQ.
main75761-60060iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
NO PAINT REQ.
main75762-60060iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202104
75792CLIP, DOOR WINDOW FRAME MOULDING
main90044-67440iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2200709-202104
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
main75850-60040-A0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-202104
SUPER WHITE 2,040
SIDE STEP-FOR(DOP),SUPER WHITE 2,040
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,SUPER WHITE 2,040
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),SUPER WHITE 2,040
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),SUPER WHITE 2,040
SIDE STEP-FOR(DOP),WHITE PEARL CS.,070
main75850-60040-A1iURJ202..VX..GCC;URJ202..(GXR,VX)..ARL;VDJ200..09S..GCC..SOB;VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN;VDJ200..(05S,08S)..(G200709-202104
WHITE PEARL CS.,070
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,WHITE PEARL CS.,070
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),WHITE PEARL CS.,070
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),WHITE PEARL CS.,070
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),SILVER ME.,1F7
main75850-60040-B0iURJ202..VX..GEN;VDJ200..RHD..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB;GRJ200,URJ202..(08S,09S)..(5F,6FC)..(GX,VXR).200709-202104
SILVER ME.,1F7
SIDE STEP-FOR(DOP),SILVER ME.,1F7
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,SILVER ME.,1F7
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),SILVER ME.,1F7
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GRAY ME.,1G3
main75850-60040-B1iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
SIDE STEP-FOR(DOP),GRAY ME.,1G3
main75850-60040-B1iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,GRAY ME.,1G3
main75850-60040-B1iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GRAY ME.,1G3
GRAY ME.,1G3
BLACK,202
SIDE STEP-FOR(DOP),BLACK,202
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,BLACK,202
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),BLACK,202
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),BLACK,202
SIDE STEP-WITH(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,218
SIDE STEP-WITH(DOP),ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
SIDE STEP-WITH(STEP LAMP),SPARKLING BLACK PEARL CS.,220
SIDE STEP-FOR(DOP),DK. RED M.M.,3Q3
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),DK. RED M.M.,3Q3
DK. RED M.M.,3Q3
main75850-60040-D0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),DK. RED M.M.,3Q3
main75850-60040-D0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,DK. RED M.M.,3Q3
BEIGE M.M.,4R3
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,BEIGE M.M.,4R3
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),BEIGE M.M.,4R3
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),BEIGE M.M.,4R3
main75850-60040-E0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
SIDE STEP-FOR(DOP),BEIGE M.M.,4R3
SIDE STEP-WITH(STEP LAMP),BEIGE M.M.,4R3
main75850-60040-E2iVDJ200..VX..GCC;URJ202..VXR..GEN;URJ20#..(VX,VXR)..GCC;VDJ200..VXR..(GCC,GEN)201508-201908
SIDE STEP-WITH(STEP LAMP),COPPER BROWN MC.,4S6
main75850-60040-E2iVDJ200..VX..GCC;URJ202..VXR..GEN;URJ20#..(VX,VXR)..GCC;VDJ200..VXR..(GCC,GEN)201508-201908
COPPER BROWN MC.,4S6
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,GOLD M.M.,5A5
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GOLD M.M.,5A5
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GOLD M.M.,5A5
main75850-60040-F0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
GOLD M.M.,5A5
main75850-60040-F0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
SIDE STEP-FOR(DOP),GOLD M.M.,5A5
main75850-60040-G0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GREEN M.M.,6V2
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,GREEN M.M.,6V2
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GREEN M.M.,6V2
SIDE STEP-FOR(DOP),GREEN M.M.,6V2
GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GRAYISH BLUE ME.,8R3
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GRAYISH BLUE ME.,8R3
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,GRAYISH BLUE ME.,8R3
SIDE STEP-FOR(DOP),GRAYISH BLUE ME.,8R3
LT.BLUE M.M.,8S1
SIDE STEP-FOR(DOP),LT.BLUE M.M.,8S1
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,LT.BLUE M.M.,8S1
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),LT.BLUE M.M.,8S1
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),LT.BLUE M.M.,8S1
SIDE STEP-WITH(DOP),LT.BLUE M.M.,8S1
SIDE STEP-WITH(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,LT.BLUE M.M.,8S1
DARK BLUE MC.,8P8
SIDE STEP-WITH(STEP LAMP),DARK BLUE MC.,8P8
RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)
ROCKER & DOOR LOWER MOULDING-PIGMENTATION
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
main75860-60040-A0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
SIDE STEP-FOR(DOP),SUPER WHITE 2,040
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),SUPER WHITE 2,040
SUPER WHITE 2,040
main75860-60040-A0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,SUPER WHITE 2,040
main75860-60040-A0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),SUPER WHITE 2,040
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),WHITE PEARL CS.,070
main75860-60040-A1iVDJ200..08S;GRJ200,URJ20#..ATM;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB;GRJ200,VDJ200..GX..SOB..G200709-202104
WHITE PEARL CS.,070
SIDE STEP-FOR(DOP),WHITE PEARL CS.,070
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,WHITE PEARL CS.,070
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),WHITE PEARL CS.,070
main75860-60040-B0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
SIDE STEP-FOR(DOP),SILVER ME.,1F7
main75860-60040-B0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,SILVER ME.,1F7
main75860-60040-B0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),SILVER ME.,1F7
main75860-60040-B0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),SILVER ME.,1F7
SILVER ME.,1F7
main75860-60040-B1iURJ202..VX..GCC;URJ202..(GXR,VX)..ARL;VDJ200..09S..GCC..SOB;VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN;VDJ200..(05S,08S)..(G200709-202104
GRAY ME.,1G3
SIDE STEP-FOR(DOP),GRAY ME.,1G3
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,GRAY ME.,1G3
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GRAY ME.,1G3
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GRAY ME.,1G3
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),BLACK,202
main75860-60040-C0iVDJ200..08S;GRJ200,URJ20#..ATM;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB;GRJ200,VDJ200..GX..SOB..G200709-202104
BLACK,202
SIDE STEP-FOR(DOP),BLACK,202
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,BLACK,202
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),BLACK,202
main75860-60040-C1iURJ202..VX..GCC;URJ202..(GXR,VX)..ARL;VDJ200..09S..GCC..SOB;VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN;VDJ200..(05S,08S)..(G201201-202104
ATTITUDE BLACK MC.,218
SIDE STEP-WITH(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,ATTITUDE BLACK MC.,218
SIDE STEP-WITH(DOP),ATTITUDE BLACK MC.,218
SIDE STEP-WITH(STEP LAMP),SPARKLING BLACK PEARL CS.,220
SPARKLING BLACK PEARL CS.,220
SIDE STEP-FOR(DOP),DK. RED M.M.,3Q3
DK. RED M.M.,3Q3
main75860-60040-D0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),DK. RED M.M.,3Q3
main75860-60040-D0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),DK. RED M.M.,3Q3
main75860-60040-D0iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..08S..(GCC,GEN)200709-201201
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,DK. RED M.M.,3Q3
SIDE STEP-FOR(DOP),BEIGE M.M.,4R3
BEIGE M.M.,4R3
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,BEIGE M.M.,4R3
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),BEIGE M.M.,4R3
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),BEIGE M.M.,4R3
main75860-60040-E0iVDJ200..VX..GCC;URJ202..VXR..GEN;URJ20#..(VX,VXR)..GCC;VDJ200..VXR..(GCC,GEN)201508-202006
SIDE STEP-WITH(STEP LAMP),BEIGE M.M.,4R3
main75860-60040-E2iVDJ200..VX..GCC;URJ202..VXR..GEN;URJ20#..(VX,VXR)..GCC;VDJ200..VXR..(GCC,GEN)201508-201908
COPPER BROWN MC.,4S6
main75860-60040-E2iVDJ200..VX..GCC;URJ202..VXR..GEN;URJ20#..(VX,VXR)..GCC;VDJ200..VXR..(GCC,GEN)201508-201908
SIDE STEP-WITH(STEP LAMP),COPPER BROWN MC.,4S6
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GOLD M.M.,5A5
GOLD M.M.,5A5
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GOLD M.M.,5A5
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,GOLD M.M.,5A5
SIDE STEP-FOR(DOP),GOLD M.M.,5A5
SIDE STEP-FOR(DOP),GREEN M.M.,6V2
GREEN M.M.,6V2
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,GREEN M.M.,6V2
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GREEN M.M.,6V2
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GREEN M.M.,6V2
GRAYISH BLUE ME.,8R3
SIDE STEP-FOR(DOP),GRAYISH BLUE ME.,8R3
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,GRAYISH BLUE ME.,8R3
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GRAYISH BLUE ME.,8R3
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),GRAYISH BLUE ME.,8R3
SIDE STEP-FOR(DOP),LT.BLUE M.M.,8S1
LT.BLUE M.M.,8S1
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),LT.BLUE M.M.,8S1
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING),LT.BLUE M.M.,8S1
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,LT.BLUE M.M.,8S1
SIDE STEP-WITH(DOP),LT.BLUE M.M.,8S1
SIDE STEP-WITH(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION,LT.BLUE M.M.,8S1
main75860-60040-J2iVDJ200..VX..GCC;URJ202..VXR..GEN;URJ20#..(VX,VXR)..GCC;VDJ200..VXR..(GCC,GEN)201508-201912
SIDE STEP-WITH(STEP LAMP),DARK BLUE MC.,8P8
main75860-60040-J2iVDJ200..VX..GCC;URJ202..VXR..GEN;URJ20#..(VX,VXR)..GCC;VDJ200..VXR..(GCC,GEN)201508-201912
DARK BLUE MC.,8P8
RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)
ROCKER & DOOR LOWER MOULDING-PIGMENTATION
75867ACLIP, ROCKER PANEL MOULDING
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING)
SIDE STEP-FOR(DOP)
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING)
75868BCLIP, ROCKER PANEL MOULDING, NO.2
SIDE STEP-FOR(DOP)
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING)
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING)
7652
76923BRETAINER, SIDE MUDGUARD
SIDE STEP-FOR(DOP)
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-PIGMENTATION
SIDE STEP-FOR(DOP)&ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING)
ROCKER & DOOR LOWER MOULDING-WITHOUT(MOULDING)
9016660003
main90166-60003
9018906065
main90189-06065
36 parts on this diagram · 3 diagrams in section
