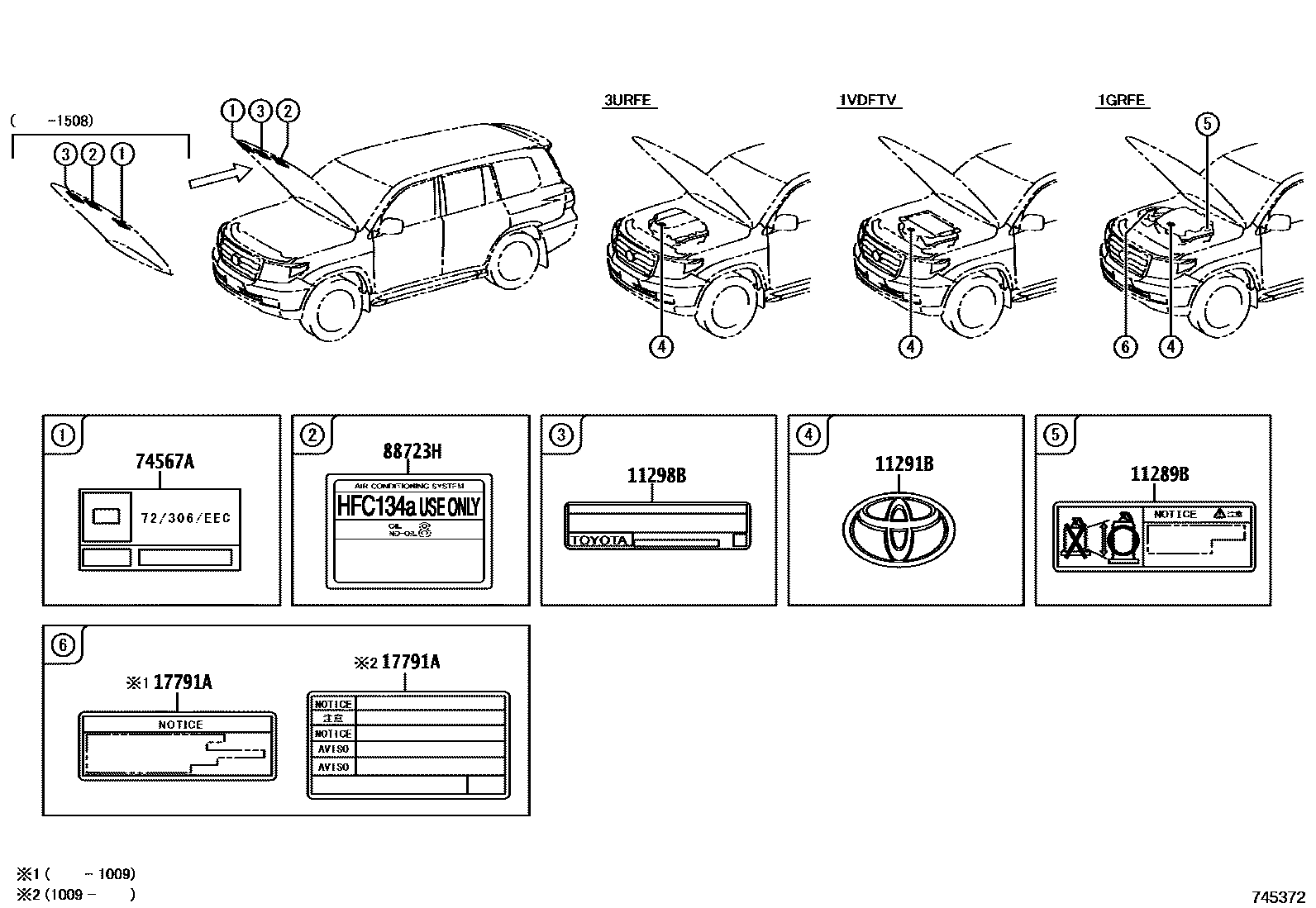

CAUTION PLATE
11289BLABEL, SPARK PLUG NOTICE
sub11289-31011
11291BPLATE, ENGINE NAME
main11291-31050i1VDFTV..VDJ200..09S..GCC..SOB;1VDFTV..VDJ200..(VX,VXR)..GCC;1VDFTV..VDJ200..05S..(ARL,GCC);1VDFTV..VDJ200..LHD..5F..GEN..LUB201508-202103
EXHAUST EMISSION CONTROL-EUROPE STEP2, WITH(EGR) & WITHOUT(OBD)
main11291-31050i1VDFTV..VDJ200..08S..5F;1VDFTV..VDJ200..GX..SOB;1VDFTV..VDJ200..LHD..05S..LUB;3URFE,1VDFTV..URJ200,VDJ200..6FC201109-201508
EXHAUST EMISSION CONTROL-EUROPE STEP3,WITH(EGR) & WITHOUT(OBD)
main11291-31050i1VDFTV..VDJ200..08S..5F;1VDFTV..VDJ200..GX..SOB;1VDFTV..VDJ200..LHD..05S..LUB;3URFE,1VDFTV..URJ200,VDJ200..6FC201109-201508
EXHAUST EMISSION CONTROL-EUROPE STEP2,WITH(EGR) & WITHOUT(OBD)
main11291-31050i1VDFTV..VDJ200..09S..GCC..SOB;1VDFTV..VDJ200..(VX,VXR)..GCC;1VDFTV..VDJ200..05S..(ARL,GCC);1VDFTV..VDJ200..LHD..5F..GEN..LUB201508-202103
EXHAUST EMISSION CONTROL-EUROPE STEP3, WITH(EGR) & WITHOUT(OBD)
11298BLABEL, EMISSION CONTROL INFORMATION
17791ALABEL, MAINTENANCE INFORMATION
74567APLATE, E.C.E APPROVED NUMBER
SAUDI ARABIA SPEC
ALGERIA SPEC
GCC SPEC(EXCEPT SAUDI ARABIA)
88723HLABEL, COOLER SERVICE CAUTION
main88723-28220iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104
6 parts on this diagram · 5 diagrams in section
