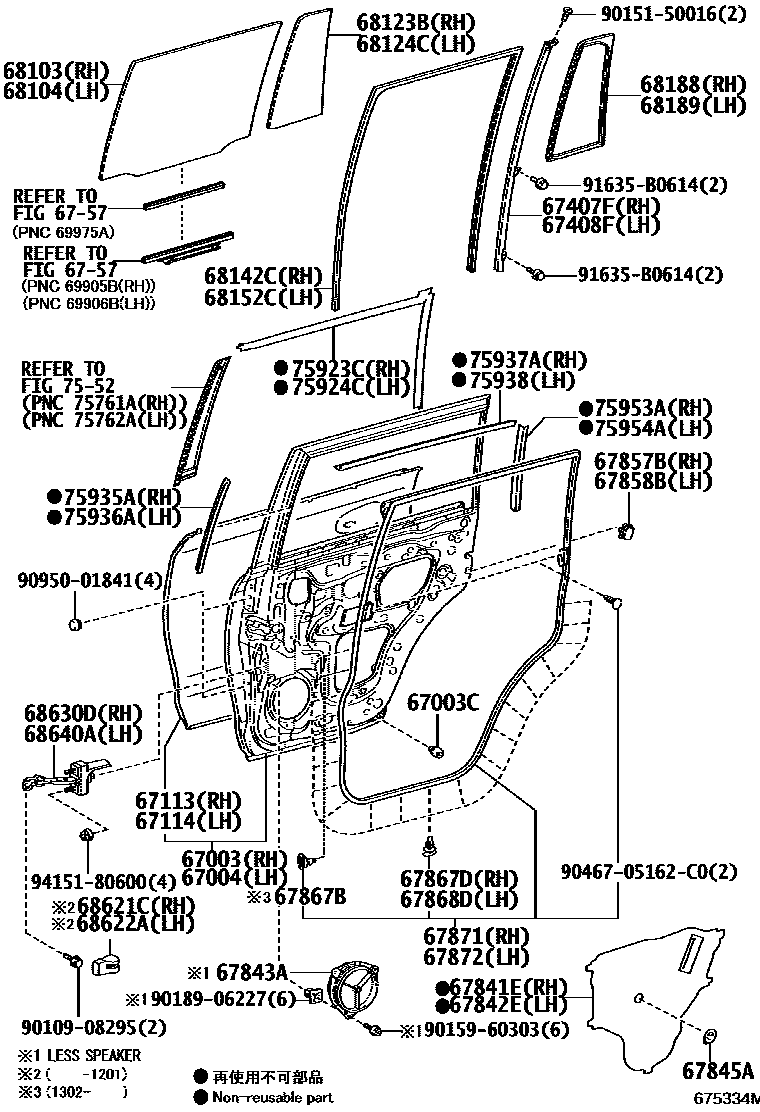

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-60410iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201412

main67003-60411iGRJ200,URJ20#,VDJ200201501-201508

main67003-60540iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

main67003-60430iURJ202..VX;VDJ200..VX..ARL;GRJ200,URJ202..08S..ATM..GX..GCC;GRJ200,URJ200,VDJ200..(5F,6FC)..(GX,VX)..(GCC,GEN)201201-201412

SIDE PROTECTIVE MOULDING-WITH

main67003-60431iURJ202..VX;VDJ200..VX..ARL;GRJ200,URJ202..08S..ATM..GX..GCC;GRJ200,URJ200,VDJ200..(5F,6FC)..(GX,VX)..(GCC,GEN)201501-201508

SIDE PROTECTIVE MOULDING-WITH

main67003-60560iURJ202..VX..(ARL,GCC);VDJ200..09S..GCC..SOB;VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC201508-202103

SIDE PROTECTIVE MOULDING-WITH

67003CCUSHION, REAR DOOR PANEL

main90541-09069×2iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-60410iGRJ200,URJ200,UZJ200,VDJ200..G200709-201201

main67004-60411iGRJ200,URJ20#,VDJ200201501-201508

main67004-60540iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

main67004-60430iURJ202..VX;VDJ200..VX..ARL;GRJ200,URJ202..08S..ATM..GX..GCC;GRJ200,URJ200,VDJ200..(5F,6FC)..(GX,VX)..(GCC,GEN)201201-201412

SIDE PROTECTIVE MOULDING-WITH

main67004-60431iURJ202..VX;VDJ200..VX..ARL;GRJ200,URJ202..08S..ATM..GX..GCC;GRJ200,URJ200,VDJ200..(5F,6FC)..(GX,VX)..(GCC,GEN)201501-201508

SIDE PROTECTIVE MOULDING-WITH

main67004-60560iURJ202..VX..(ARL,GCC);VDJ200..09S..GCC..SOB;VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC201508-202103

SIDE PROTECTIVE MOULDING-WITH

67113PANEL, REAR DOOR, OUTER RH

main67113-60210iGRJ200,VDJ200..K201109-201201

main67113-60280iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

main67113-60260iURJ202..VX;VDJ200..VX..ARL;GRJ200,URJ202..08S..ATM..GX..GCC;GRJ200,URJ200,VDJ200..(5F,6FC)..(GX,VX)..(GCC,GEN)201201-201508

SIDE PROTECTIVE MOULDING-WITH

main67113-60290iURJ202..VX..(ARL,GCC);VDJ200..09S..GCC..SOB;VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC201508-202103

SIDE PROTECTIVE MOULDING-WITH

67114PANEL, REAR DOOR, OUTER LH

main67114-60210iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

main67114-60280iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

main67114-60260iURJ202..VX;VDJ200..VX..ARL;GRJ200,URJ202..08S..ATM..GX..GCC;GRJ200,URJ200,VDJ200..(5F,6FC)..(GX,VX)..(GCC,GEN)201201-201508

SIDE PROTECTIVE MOULDING-WITH

main67114-60290iURJ202..VX..(ARL,GCC);VDJ200..09S..GCC..SOB;VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC201508-202103

SIDE PROTECTIVE MOULDING-WITH

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-60060iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

main67407-60080iURJ200;URJ202..VXR..GCC202006-202104

URBAN STYLE/TRD-PACKAGE(20INCH)

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-60060iGRJ200,VDJ200..K201109-201201

main67408-60080iURJ202..VX..GCC202006-202103

URBAN STYLE/TRD-PACKAGE(20INCH)

6757

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-60110iGRJ200..RHD..05S200709-200907

main67841-60140iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202103

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-60060iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

main67842-60090iGRJ200,URJ20#,VDJ200201502-201508

67843ACOVER, REAR DOOR SERVICE HOLE, NO.2

main67843-60030×2iVDJ200..09S..SOB;VDJ200..LHD..5F..GEN..LUB;GRJ200,URJ202..GXR..(ARL,GEN);GRJ200,VDJ200..05S..(ARL,GCC)..SOB201508-202103

AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER

67845ASUB-SHEET, REAR DOOR SERVICE HOLE

main67846-60010×2iGRJ200..RHD..05S200709-200907

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-60030iGRJ200..RHD..05S200709-200907

67858BPROTECTOR, REAR DOOR PANEL, LH

main67857-60030iGRJ200..RHD..05S200709-200907

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-52010×2iGRJ200,URJ20#,VDJ200201302-201508

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×19iGRJ200..RHD..05S200709-200907

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×19iGRJ200..RHD..05S200709-200907

67871WEATHERSTRIP, REAR DOOR, RH

main67871-60110iURJ200;URJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..(VX,VXR)..(ARL,GEN)201508-202104

main67871-60120iGRJ200..RHD..05S200709-200907

67872WEATHERSTRIP, REAR DOOR, LH

main67872-60110iURJ202..VXR..GEN;URJ202..VX..(ARL,GCC);VDJ200..(VX,VXR)..GCC201508-202103

main67872-60120iVDJ200..GX..G;GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..GX..G200709-201201

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-60300iGRJ200,VDJ200..K201109-201201

*UVCT,T=4.0,GREEN

main68113-60301iURJ202,VDJ200..GX..ARL201201-201301

*UVCT,T=4.0,GREEN

main68113-60310iUZJ200,VDJ200..VX..ARL200709-200907

*TEM,T=4.0,DK.GREEN

main68113-60370iUZJ200,VDJ200..VX..ARL200907-201201

*TEM,T=4.0,DARK GRAY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-60300iGRJ200,VDJ200..K201109-201201

*UVCT,T=4.0,GREEN

main68114-60301iURJ202..VX..GCC;VDJ200..09S..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

main68114-60310iUZJ200,VDJ200..VX..ARL200709-200907

*TEM,T=4.0,DK.GREEN

main68114-60370iURJ202..VXR..ARL;VDJ200..ARL..LUB201508-202104

SIDE GLASS-GREEN(FRONT) & PRIVACY(REAR)

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-60290iGRJ200,VDJ200..K201109-201201

*UVCT,T=4.0,GREEN

main68123-60291iURJ202,VDJ200..GX..ARL201201-201301

*UVCT,T=4.0,GREEN

main68123-60300iUZJ200,VDJ200..VX..ARL200709-200907

*TEM,T=4.0,DK.GREEN

main68123-60360iUZJ200,VDJ200..VX..ARL200907-201201

*TEM,T=4.0,DARK GRAY

68124CGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-60290iUZJ200..GX;UZJ200..LHD..VX;VDJ200..GX..ARL;GRJ200..LHD..05S..G;VDJ200..(GCC,GEN)..G;GRJ200,URJ200..(08S,09S)..G200709-201111

*UVCT,T=4.0,GREEN

main68124-60291iURJ202..VX..GCC;VDJ200..09S..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ202..(GXR,VXR)..GEN201508-202103

main68124-60300iUZJ200,VDJ200..VX..ARL200709-200907

*TEM,T=4.0,DK.GREEN

main68124-60360iURJ202..VXR..ARL;VDJ200..ARL..LUB201508-202104

SIDE GLASS-GREEN(FRONT) & PRIVACY(REAR)

68142CRUN, REAR DOOR GLASS, RH

main68142-60060iGRJ200..RHD..05S200709-200907

68152CRUN, REAR DOOR GLASS, LH

main68152-60050iGRJ200..RHD..05S200709-200907

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-60060iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-60060iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

68621CCOVER, REAR DOOR CHECK, RH

main68621-60010iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

68622ACOVER, REAR DOOR CHECK, LH

main68622-60010iGRJ200..RHD..05S200709-200907

68630DCHECK ASSY, REAR DOOR, RH

main68630-60110iGRJ200..RHD..05S200709-200907

main68630-60111iGRJ200,URJ200,UZJ200,VDJ200..G201003-201201

main68630-60130iGRJ200,URJ20#,VDJ200201201-201411

main68630-60131iGRJ200,URJ20#,VDJ200201412-201508

main68630-60132iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201909-202103

68640ACHECK ASSY, REAR DOOR, LH

main68640-60100iGRJ200..RHD..05S200709-200907

main68640-60101iGRJ200,URJ200,UZJ200,VDJ200..G201003-201201

main68640-60110iGRJ200,URJ20#,VDJ200201201-201411

main68640-60111iGRJ200,URJ20#,VDJ200201412-201508

main68640-60112iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201909-202103

7552

75923CTAPE, BLACK OUT, NO.2 RH

main75923-60020supersedes 75923-60020iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..G;GRJ200,URJ200,UZJ200..08S200709-201201

RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)

main75923-60040iURJ200;URJ202..VXR..GCC202006-202104

URBAN STYLE/TRD-PACKAGE(20INCH)

75924CTAPE, BLACK OUT, NO.2 LH

main75924-60020supersedes 75924-60020iVDJ200..08S;GRJ200,URJ20#..ATM;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB;GRJ200,VDJ200..GX..SOB..G201109-201508

main75924-60040iURJ202..VX..GCC202006-202103

URBAN STYLE/TRD-PACKAGE(20INCH)

75935ATAPE, BLACK OUT, NO.6 RH

main75935-60010supersedes 75935-60010iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..G;GRJ200,URJ200,UZJ200..08S200709-201201

RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)

75936ATAPE, BLACK OUT, NO.6 LH

main75936-60010supersedes 75936-60010iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..G;GRJ200,URJ200,UZJ200..08S200709-201201

RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)

75937ATAPE, BLACK OUT, INNER UPPER RH

main75937-60010supersedes 75937-60010iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..G;GRJ200,URJ200,UZJ200..08S200709-201201

RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)

75938TAPE, BLACK OUT, INNER UPPER LH

main75938-60010supersedes 75938-60010iGRJ200..LHD..05S..G;VDJ200..(05S,08S)..G;GRJ200,URJ200,UZJ200..08S200709-201201

RADIATOR GRILLE-SILVER-COLORED PAINTED(OUTER)

75953ATAPE, BLACK OUT, INNER REAR RH

main75953-60010supersedes 75953-60010iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

75954ATAPE, BLACK OUT, INNER REAR LH

main75954-60010supersedes 75954-60010iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

9010908295

main90109-08295

9015150016

main90151-50016

9015960303

main90159-60303

9018906227

main90189-06227

9046705162C0

main90467-05162C0

9095001841

main90950-01841

91635B0614

main91635-B0614

9415180600

main94151-80600

48 parts on this diagram · 3 diagrams in section
