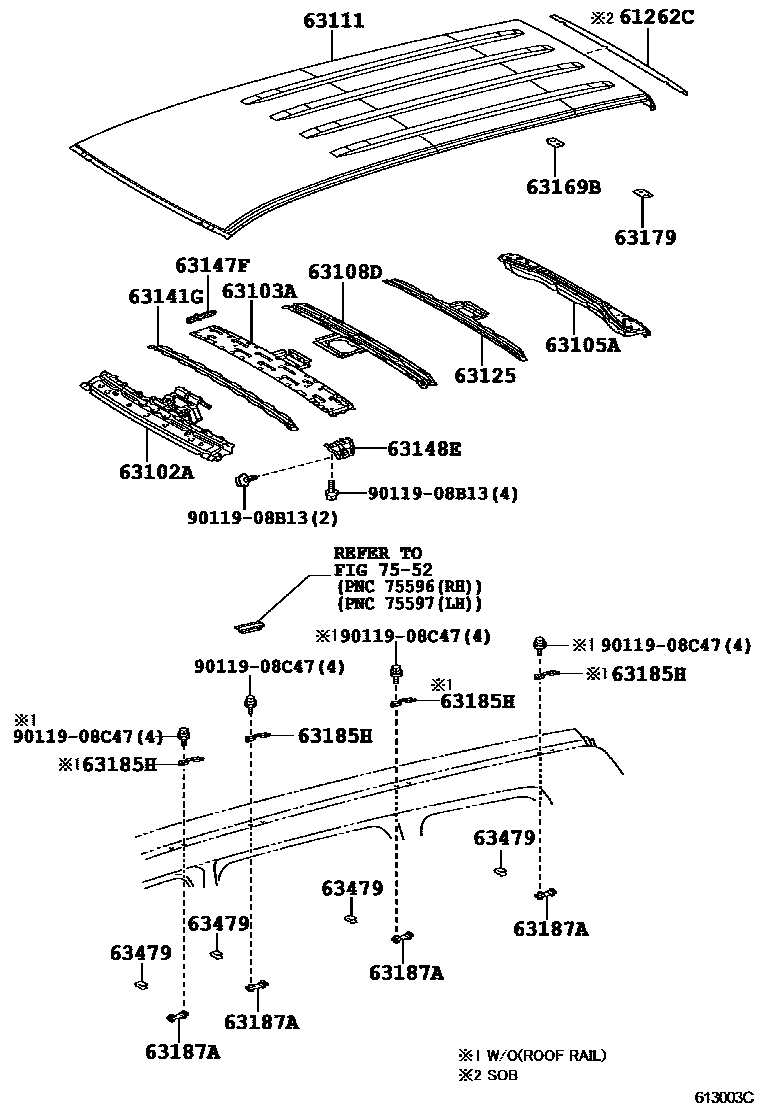

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1ROOF PANEL(MOON ROOF) 0003 1MOON ROOF 0004 1ROOF RACK 0005 1ROOF RAIL

61262CCHANNEL, ROOF DRIP, REAR

main61263-60060iGRJ200,VDJ200..SOB201109-202103

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60120iGRJ200..RHD..05S200709-202104

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-60050iGRJ200,VDJ200..K200709-202104

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60260iGRJ200,VDJ200..SOB201109-202103

main63105-60280iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB200709-202104

63108DSUPPORT SUB-ASSY, ROOF PANEL

main63108-60040iGRJ200,VDJ200..K200709-202104

63111PANEL, ROOF

main63111-60560iGRJ200..5F..LUB;VDJ200..GX..LUB;VDJ200..LHD..5F..GEN..LUB201201-202104

main63111-60560iVDJ200..VX;UZJ200..ARL,GEN;VDJ200..GX..ARL;URJ200,UZJ200..VX..GCC200709-201201

REAR WINDOW WIPER-WITH(INTERMITTENT)

main63111-60610iGRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G200709-201908

main63111-60780iGRJ200,VDJ200..SOB201109-202103

63125REINFORCEMENT, ROOF PANEL, NO.2

main63107-60040iGRJ200..RHD..05S200709-202104

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60100iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-202104

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-60050iGRJ200..RHD..05S200709-202104

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-60050iGRJ200..RHD..05S200709-202104

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-60020iGRJ200..RHD..05S200709-202104

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-60010iGRJ200..RHD..05S200709-202104

63185HBRACKET, ROOF RACK

main63185-42020iGRJ200..RHD..05S200709-202104

ROOF RACK-ROOF RAIL ONLY

63187ABRACKET, ROOF RACK, REAR

main63187-60040iGRJ200..RHD..05S200709-202104

63479RETAINER, ROOF INNER RACK

main63479-60020iGRJ200..RHD..05S200709-202104

7552

9011908B13

main90119-08B13

9011908C47

main90119-08C47

18 parts on this diagram · 5 diagrams in section
