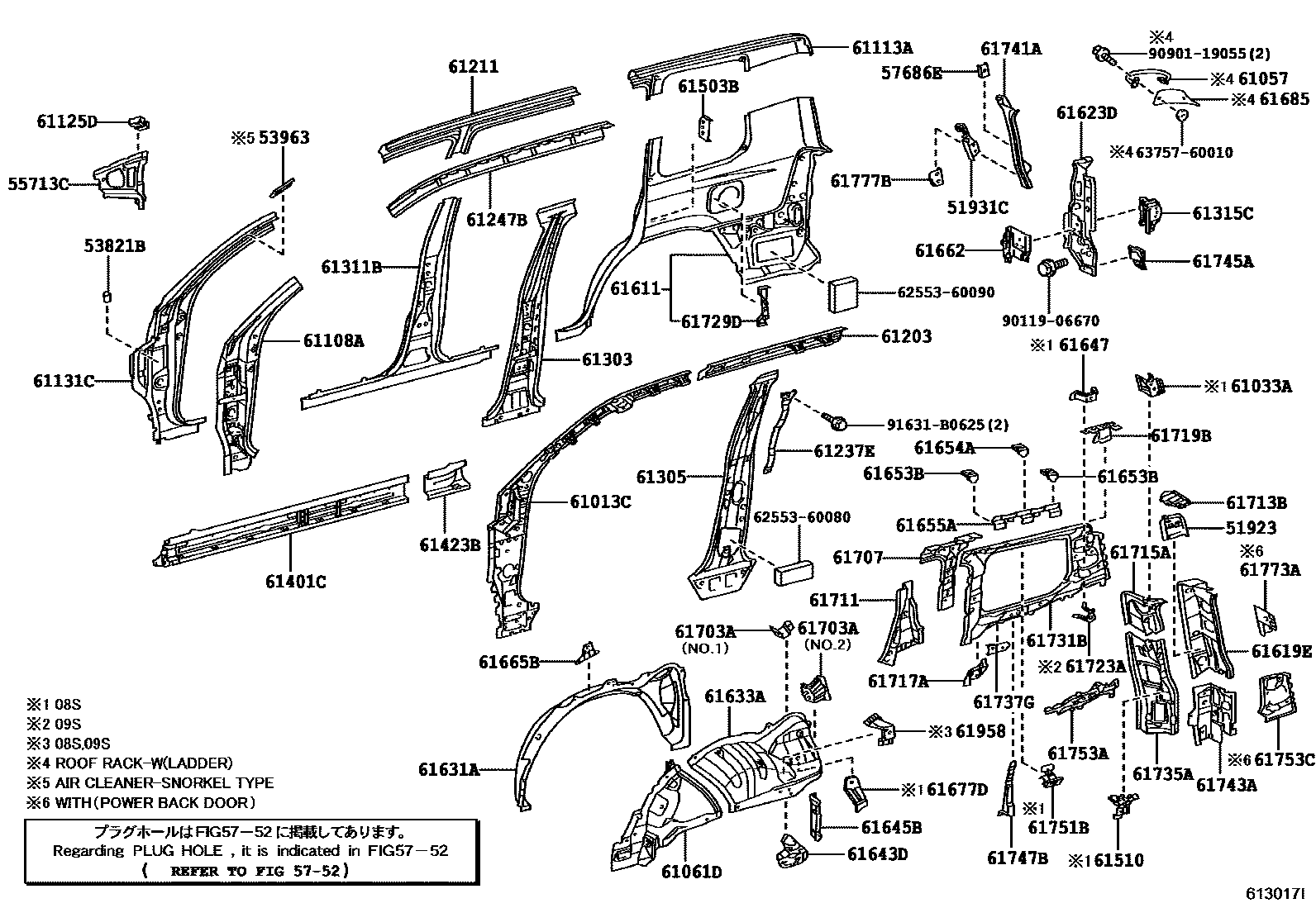

SIDE MEMBER

0001 1RH SIDE 0002 1LH SIDE 0003 1RH SIDE 0004 1LH SIDE

51923REINFORCEMENT,SPARE WHEEL

main51933-60190

main51933-60210

51931CCARRIER, SPARE WHEEL

53821BBRACKET, FRONT FENDER, REAR RH

main53821-60040iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G¥240200709-202104

53963RETAINER, AIR CLEANER INLET PIPE, NO.4

main53963-60030

55713CPANEL, COWL TOP SIDE, RH

main55713-60070iGRJ200..RHD..05S¥4,370200709-201107

sub55713-60071¥3,030

main55713-60071iGRJ200,URJ200,UZJ200,VDJ200..G¥3,030201108-202104

5752

57686EBRACKET, FUEL TANK MOUNTING, REAR RH

main61771-60040iGRJ200..RHD..05S¥240200709-202104

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-60030iGRJ200..RHD..05S¥28,200200709-201508

main61013-60060iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2¥23,400201508-202104

61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE

main61033-60160iGRJ200,URJ200,UZJ200,VDJ200..08S¥2,620200709-202104

61057STEP SUB-ASSY, QUARTER PANEL, NO.2 RH

main61057-60030

61061DGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1, RH

main61061-60100iGRJ200..RHD..05S¥11,600200709-201508

main61061-60120iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2¥8,000201508-202104

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-60080iGRJ200..RHD..05S¥14,900200709-202104

61113APANEL, SIDE, OUTER NO.2 RH

main61113-60030iGRJ200..RHD..05S¥7,600200709-202104

61125DGUSSET, SIDE PANEL

main61125-60030iGRJ200..RHD..05S¥450200709-202104

61131CPILLAR, FRONT BODY, OUTER RH

main61131-60240iGRJ200..RHD..05S¥16,900200709-202104

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-60020iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G¥5,800200709-202104

61211RAIL, ROOF SIDE, OUTER RH

main61211-60070iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G¥7,600200709-202104

61237EBRACKET, ASSIST GRIP, NO.1

main61237-60020iGRJ200..RHD..05S¥1,250200709-202104

61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH

main61247-60080iGRJ200..RHD..05S¥5,500200709-202104

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-60090iGRJ200..RHD..05S¥29,800200709-202104

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-60130iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G¥14,800200709-202104

61311BPILLAR, CENTER BODY, OUTER RH

main61311-60170iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G¥16,700200709-202104

61315CRETAINER, DOOR LOCK STRIKER, RH

main61087-60020iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB¥2,400200709-202104

61401CPANEL SUB-ASSY, ROCKER, OUTER RH

main61401-60060iGRJ200..RHD..05S¥18,600200709-202104

61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH

main61427-60010iGRJ200..RHD..05S¥2,960200709-202104

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-60130iGRJ200..RHD..05S¥3,210200709-202104

61510PANEL ASSY, REAR UPPER SIDE, RH

main61055-60010iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;VDJ200..05S..(ARL,GCC)..SOB;GRJ200¥1,970200709-202104

61611PANEL, QUARTER, RH

main60161-60870iGRJ200..RHD..05S¥93,100200709-201509

sub60161-60871¥64,600

main60161-60871iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2¥64,600201509-202104

61619EREINFORCEMENT, QUARTER PANEL

main61619-60090iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G¥7,900200709-202104

61623DEXTENSION, QUARTER PANEL, FRONT RH

main61623-60030iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G¥7,700200709-201503

sub61623-60100¥7,700

main61623-60031iURJ202..VX..GEN;VDJ200..RHD..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB¥5,300201503-202104

sub61623-60080¥5,400

main61623-60050iGRJ200,VDJ200..SOB..G201109-202103

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-60080iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB¥8,900200709-202104

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-60120iGRJ200,URJ20#,VDJ200..08S¥8,900200709-202104

main61633-60130iGRJ200..09S;GRJ200..05S..LUB;VDJ200..09S..LUB;GRJ200,VDJ200..05S..GEN¥8,900200709-202104

61643DPATCH, QUARTER WHEEL HOUSE, NO.1 RH

main61643-60040iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G¥2,090200709-202104

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-60060iGRJ200..RHD..05S¥1,010200709-202104

61647RETAINER, REAR SEATBACK PIVOT, LOWER

main61647-60030iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB¥330201508-202104

main61647-60050iGRJ200,URJ20#,VDJ200..08S¥480200709-201508

61653BBRACKET, DECK SIDE TRIM

main61653-60010iGRJ200..RHD..05S¥330200709-202104

61654ABRACKET, DECK SIDE TRIM, NO.2

main61654-60010iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB¥330200709-202104

61655ABRACKET, DECK SIDE TRIM, NO.3

main61655-60040iGRJ200..RHD..05S¥1,570200709-202104

61662REINFORCEMENT,SPARE WHEEL BRACKET, UPPER

main51932-60100

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-60080iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB¥470200709-202104

61677DBRACKET, REAR SUSPENSION BUMPER, RH

main61677-60070iGRJ200,URJ200,UZJ200,VDJ200..08S¥1,520200709-202104

61685ORNAMENT, QUARTER PANEL STEP, NO.2 RH

main61685-60030

61703ABRACKET,FUEL TANK FILLTER PIPE PROTECTOR

main77675-60080iGRJ200..RHD..05S¥330200709-202104

NO.1:REFER ILLUST.

main77676-60040iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN¥570200709-202104

NO.2:REFER ILLUST.

61707PANEL SUB-ASSY, QUARTER, INNER RH

main61707-60040iGRJ200..RHD..05S¥5,800200709-202104

61711PANEL, ROOF SIDE, OUTER RH

main61711-60070iGRJ200..RHD..05S¥4,760200709-202104

61713BREINFORCE, ROOF SIDE, OUTER RH

main61713-60020iGRJ200..RHD..05S¥800200709-202104

61715AEXTENSION, ROOF SIDE, INNER UPPER RH

main61715-60110iGRJ200..RHD..05S¥4,590200709-202104

61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH

main61717-60070iGRJ200..RHD..05S¥880200709-202104

61719BBRACKET, ROOF SIDE, INNER

main61719-60030iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN¥1,570200709-202104

61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1

main61723-60010iGRJ200,VDJ200..09S..G200709-201508

main61723-60040iGRJ200,VDJ200..09S201508-202103

61729DPLATE, FUEL INLET BOX

main61729-60060iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB¥310200709-202104

61731BPANEL, ROOF SIDE, INNER RH

main61731-60300iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN¥13,800201508-202104

main61731-60320iGRJ200,VDJ200..K¥20,000200709-201508

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-60060iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G¥8,400200709-202104

61737GREINFORCEMENT, ROOF SIDE, INNER RH

main61737-60050iGRJ200..RHD..05S¥600200709-202104

61741AREINFORCEMENT, BACK DOOR OPENING, UPPER RH

main61741-60080iGRJ200..RHD..05S¥4,270200709-201012

sub61741-60081¥2,960

main61741-60081iGRJ200,URJ20#,VDJ200..LUB¥2,960201101-202104

main61741-60100iGRJ200,VDJ200..SOB201109-202103

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-60130iGRJ200..08S,09S;GRJ200..LHD..05S;URJ200,UZJ200,VDJ200¥6,400200709-201012

sub61743-60131¥4,430

main61743-60131iGRJ200,URJ200,UZJ200,VDJ200..G¥4,430201101-202103

sub61743-60160¥4,090

main61743-60160iURJ202..VX..GEN;VDJ200..RHD..LUB;VDJ200..GXR..GCC;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..(GXR,VXR)..GCC¥4,090201811-202104

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-60030iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G¥1,240200709-201508

main61745-60050iGRJ200,VDJ200..K201109-202103

main61745-60060iURJ202..VX..GEN;VDJ200..RHD..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);URJ202,VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB¥980201508-202104

61747BREINFORCEMENT, ROOF SIDE, INNER REAR, RH

main61747-60060iGRJ200..RHD..05S¥1,360200709-202104

61751BRETAINER, QUARTER TRIM, UPPER

main61751-60040iGRJ200,URJ200,UZJ200,VDJ200..08S¥540200709-202104

61753ARETAINER, QUARTER TRIM, LOWER

main61753-60010iGRJ200,VDJ200..K¥2,060200709-202104

61753CRETAINER, QUARTER TRIM, LOWER

61773APATCH, BACK DOOR OPENING, LOWER RH

61777BREINFORCE, BACK DOOR SIDE STOPPER FEMALE, RH

main61777-60030iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB¥340200709-202104

61958BRACKET, REAR SEAT LEG, NO.1 RH

main61958-60080iGRJ200,URJ200,UZJ200,VDJ200..08S¥700200709-202104

main61958-60090iGRJ200,VDJ200..09S..K200709-202103

6255360080TRIM, FLOOR SIDE

main62553-60080¥240

6255360090TRIM, FLOOR SIDE

main62553-60090¥240

6375760010

main63757-60010¥90

9011906670

main90119-06670¥80

9090119055

main90901-19055¥120

91631B0625

main91631-B0625¥60

70 parts on this diagram · 4 diagrams in section
