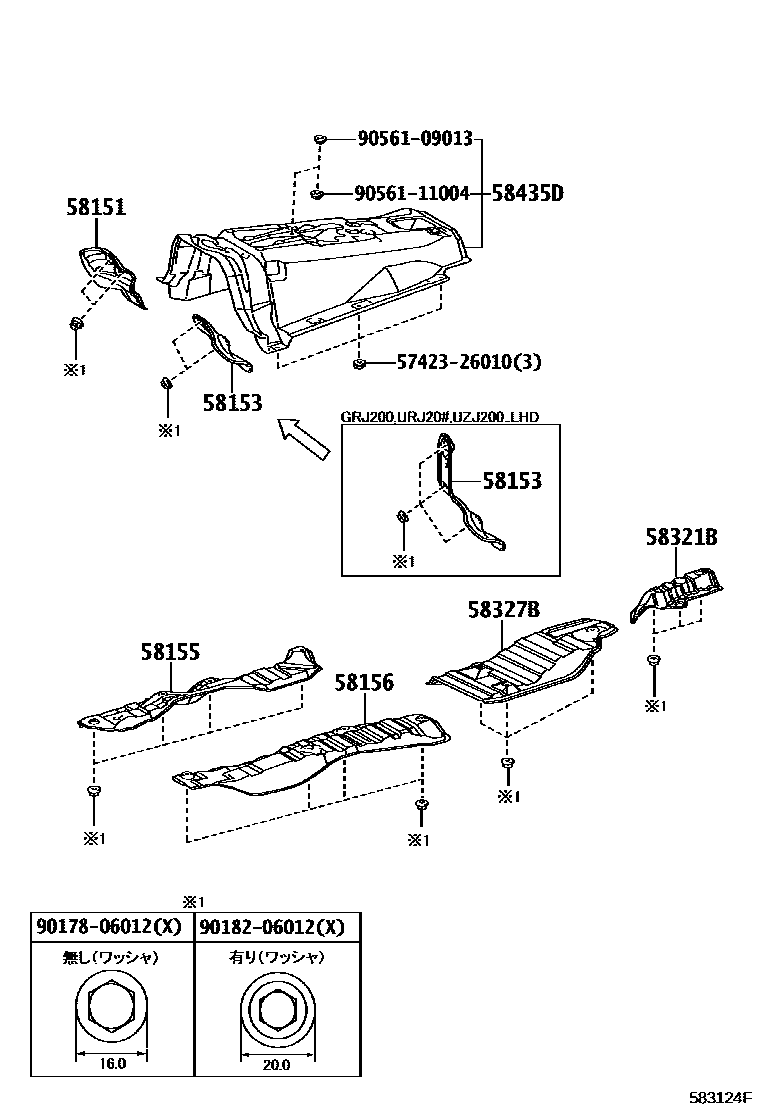

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-60110iGRJ200..RHD..05S200709-201807

sub58151-60111

main58151-60111iURJ202..VX..GEN;VDJ200..RHD..LUB;VDJ200..GXR..GCC;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..(GXR,VXR)..GCC201808-202104

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-60090iVDJ200..K;GRJ200..RHD..K200709-201201

main58153-60100iGRJ200,URJ20#..LHD200709-201807

sub58153-60101

main58153-60101iGRJ200..5F;URJ202..VX..GCC;URJ202..VXR..GEN201808-202104

main58153-60110iURJ202..GEN;GRJ200..ATM..GXR201608-201807

EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(OBD)

sub58153-60111

main58153-60110iURJ20#..GCC;URJ202..VX..GEN201508-201807

EXHAUST EMISSION CONTROL-EUROPE STEP4, WITH(OBD)

sub58153-60111

main58153-60111iURJ202..VXR..GEN201808-202104

EXHAUST EMISSION CONTROL-EUROPE STEP4, WITH(OBD)

main58153-60111iURJ202..VXR..GEN201808-202104

EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(OBD)

main58153-60120iVDJ200;GRJ200,URJ202..RHD201201-201806

sub58153-60121

main58153-60121iVDJ200..RHD..LUB;VDJ200..GXR..GCC;VDJ200..LHD..6FC..GEN201807-202104

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-60060iGRJ200..RHD..05S200709-201111

sub58155-60061

main58155-60061iGRJ200,URJ200,UZJ200,VDJ200..G201112-201902

main58155-60062iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201902-202104

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-60020iGRJ200..RHD..05S200709-201109

sub58156-60021

main58156-60021iGRJ200,URJ200,UZJ200,VDJ200..G201109-201112

sub58156-60022

main58156-60022iGRJ200,VDJ200..K201112-201902

main58156-60023iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201902-202104

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-60060iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-201901

sub58321-60061

main58321-60061iURJ202..VX..GEN;VDJ200..RHD..LUB;VDJ200..GXR..GCC;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..(GXR,VXR)..GCC201902-202104

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-60090iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201709

sub58327-60091

main58327-60091iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201710-202104

58435DSILENCER, FRONT FLOOR, CENTER

main58563-60050iGRJ200..RHD..05S200709-202104

5742326010BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-26010

9017806012

main90178-06012

9018206012

main90182-06012

9056109013

main90561-09013

9056111004

main90561-11004

12 parts on this diagram · 1 diagram in section
