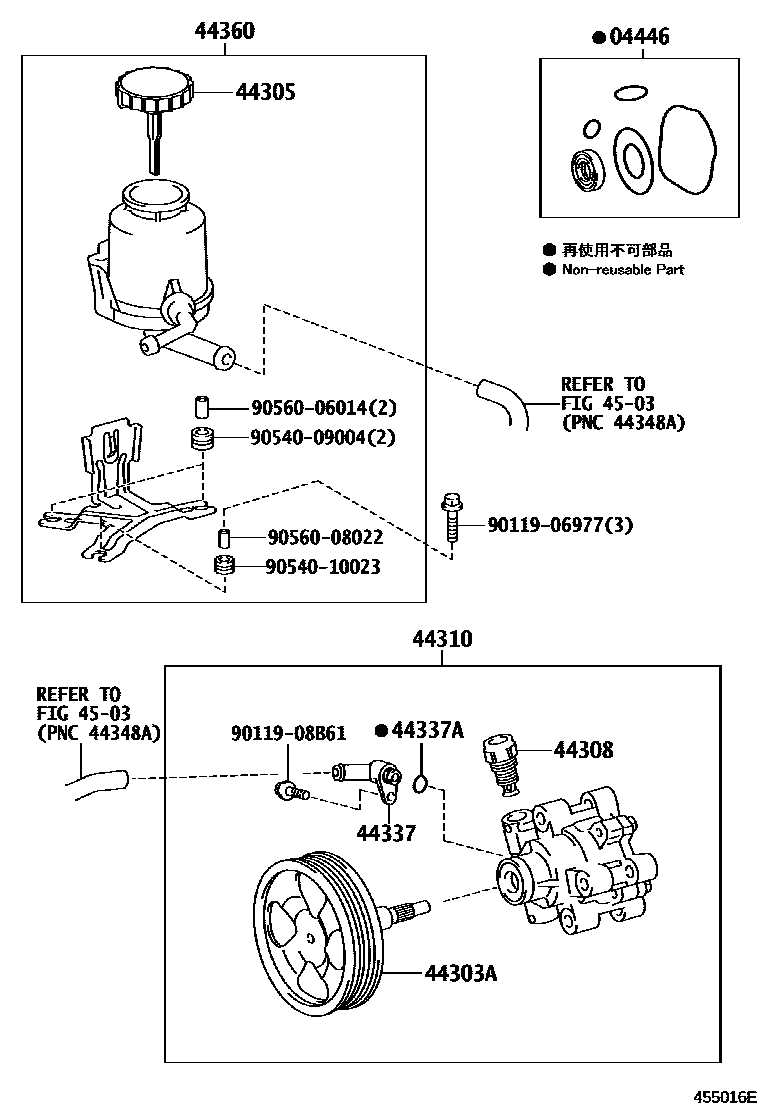

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
main04446-60270iVDJ200..LHD..6FC..GEN;VDJ200..RHD..(05S,08S)..GEN;VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB200709-202104
WITH(AVS)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC WITH(MEMORY)&WITH(VSC & *CRCO& *ATC & *CRCO & *MTS)
44303ASHAFT SUB-ASSY, W/PULLEY
44308UNION SUB-ASSY, PRESSURE PORT
44310PUMP ASSY, VANE
WITH(AVS)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC WITH(MEMORY)&WITH(VSC & *CRCO& *ATC & *CRCO & *MTS)
sub44310-60621
WITH(AVS)&STEERING COLUMN-ELECTRIC TILT & TELESCOPIC WITH(MEMORY)&WITH(VSC & *CRCO& *ATC & *CRCO & *MTS)
WITH(AVS)
44337UNION, POWER STEERING SUCTION PORT
main44337-60230iVDJ200..09S..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB200709-202104
44337ARING, O(FOR POWER STEERING SUCTION PORT)
44360RESERVOIR ASSY, VANE PUMP OIL
sub44360-60291
sub44360-60301
main44360-60301iVDJ200..09S..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB201206-202104
4503
9011906977
main90119-06977
9011908B61
main90119-08B61
9054009004
main90540-09004
9054010023
main90540-10023
9056006014
main90560-06014
9056008022
main90560-08022
15 parts on this diagram · 4 diagrams in section
