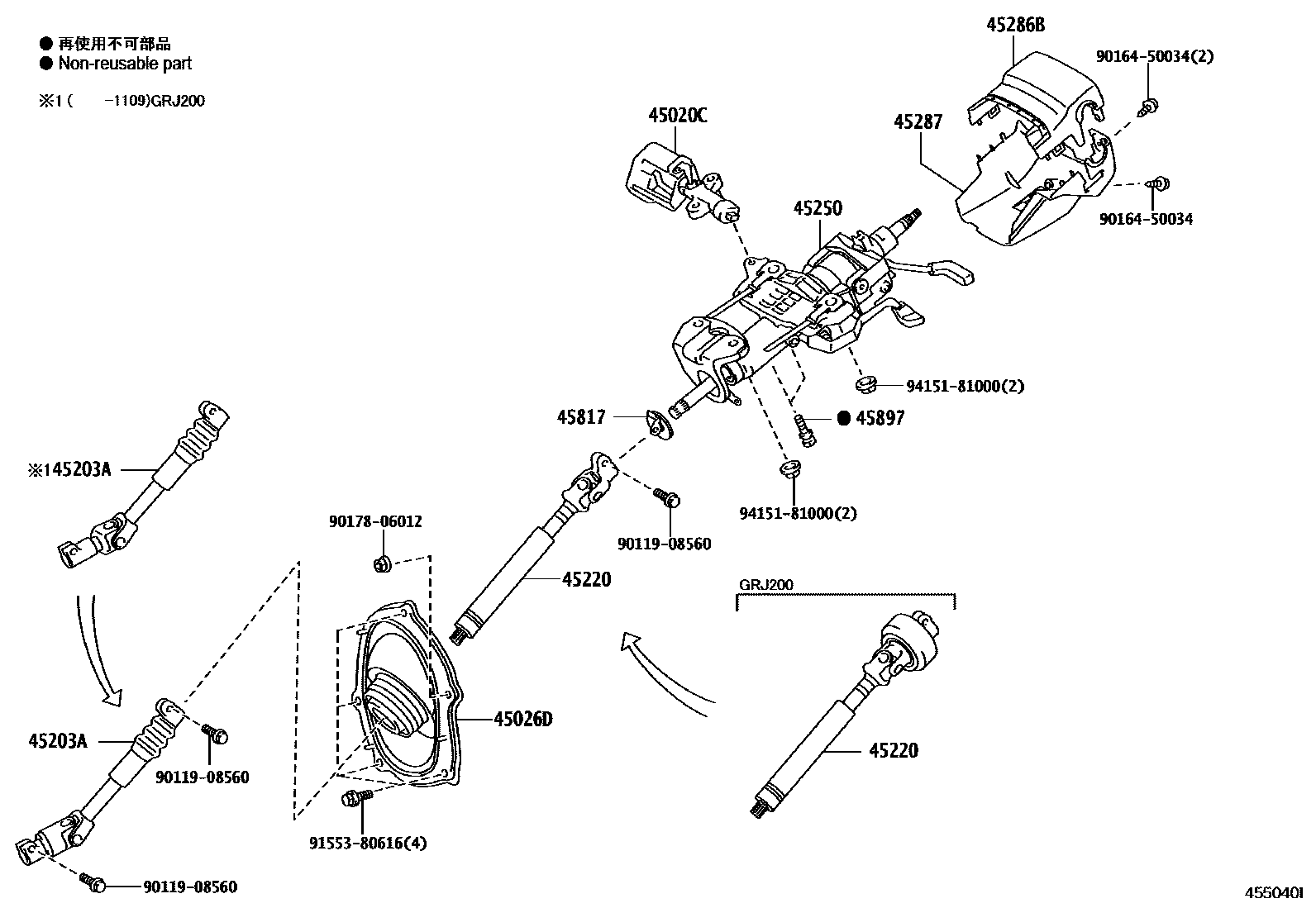

STEERING COLUMN & SHAFT

0001 1MANUAL TILT & TELESCOPIC 0002 1ELECTRIC TILT & TELESCOPIC 0003 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30A60iGRJ200,URJ200,UZJ200,VDJ200..G200709-201508

main45020-60830iGRJ200..5F..LUB;URJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;VDJ200..(05S,08S)..(GX,VX,VXR)..GCC..LUB201508-202104

45026DCOVER SUB-ASSY, STEERING COLUMN HOLE

main45025-60160iURJ202..VXR..ARL;VDJ200..RHD..LUB200709-202104

main45025-60170iGRJ200,URJ20#,VDJ200..LHD..LUB200709-202104

main45025-60240iGRJ200,VDJ200..RHD..SOB..G201109-202103

main45025-60250iGRJ200,VDJ200..LHD..SOB201109-202103

45203ASHAFT, STEERING INTERMEDIATE, NO.2

main45203-60130iUZJ200,VDJ200..RHD200709-201109

main45203-60131iGRJ200,UZJ200,VDJ200..RHD..G201109-202104

main45203-60140iURJ200,UZJ200,VDJ200..LHD200709-201109

main45203-60141iGRJ200,VDJ200..LHD..K201109-202104

main45203-60150iGRJ200..RHD..05S200709-201109

main45203-60160iGRJ200..LHD200709-201109

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-60220iUZJ200,VDJ200..RHD200709-201109

main45220-60221iVDJ200..RHD..K201109-202104

main45220-60230iURJ200,UZJ200,VDJ200..LHD200709-201109

main45220-60231iURJ200,UZJ200,VDJ200..LHD..G201109-202104

main45220-60250iGRJ200..RHD..05S200709-201109

main45220-60260iGRJ200..LHD200709-201109

main45220-60330iGRJ200..RHD..K201109-201707

main45220-60340iGRJ200..LHD..K201109-202104

45250COLUMN ASSY, STEERING

main45250-60A00iGRJ200..RHD..05S200709-201109

main45250-60A10iURJ200,UZJ200,VDJ200..G200709-201508

main45250-60C80iGRJ200..5F..LUB;URJ202..(GXR,VX)..ARL;VDJ200..LHD..5F..GEN..LUB;URJ202,VDJ200..(05S,08S)..(GX,VX)..GCC..LUB201508-202104

main45810-60180iVDJ200..LHD..VXR..GEN201908-202104

45286BCOVER, STEERING COLUMN, UPR

main45286-60430-C0iGRJ200,VDJ200..K201109-202103

BLACK,TRIM1#

main45286-60430-E0iGRJ200,VDJ200..GX..SOB201201-201508

ORCHID BROWN,TRIM0#

main45286-60490-C0iGRJ200..RHD..05S200709-201508

BLACK,TRIM1#

sub45286-60490

main45286-60490-C0iGRJ200..09S..LUB;GRJ200,URJ202,VDJ200..(5F,6FC)..GX..(GCC,GEN)..LUB201201-201508

BLACK,TRIM1#,2#

sub45286-60490

main45286-60490-C0iGRJ200..09S..LUB;GRJ200,URJ202,VDJ200..(5F,6FC)..GX..(GCC,GEN)..LUB201201-201508

BLACK,TRIM2#

sub45286-60490

main45286-60490-E0iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

DK. BROWN,TRIM4#

sub45286-60490

main45286-60490-E1iGRJ200,URJ20#,VDJ200..LUB201201-201508

ORCHID BROWN,TRIM0#

sub45286-60490

main45286-60530-C0iVDJ200..05S..LUB201508-202104

BLACK,TRIM1#,2#

main45286-60530-C0iGRJ200..5FC..GXR201508-201707

BLACK,TRIM1#,2#,4#

main45286-60530-C0iURJ202..VXR..GEN;VDJ200..LHD..VXR201508-202104

BLACK,TRIM1#,2#,42,46

main45286-60530-C0iURJ202..VX..ARL201508-202103

BLACK,TRIM2#,42,46

main45286-60530-C0iURJ202..VX..ARL201508-202104

BLACK,TRIM1#

main45286-60530-C0iVDJ200..LHD..6FC..GXR..GEN201508-202104

BLACK,TRIM1#,2#,42,46,48,49,5#

main45286-60530-C0iGRJ200..6FC..GXR201708-202104

BLACK,TRIM1#,2#,46,48,49,5#

main45286-60530-E0iURJ202..VXR..GEN;VDJ200..LHD..VXR201508-202104

ORCHID BROWN,TRIM0#,47

main45286-60530-E0iGRJ200..6FC..GXR201708-202104

ORCHID BROWN,TRIM47

main45286-60530-E0iGRJ200..6FC..GXR201708-202104

ORCHID BROWN,TRIM4#

main45286-60530-E0iGRJ200..5F..GCC..LUB;URJ202..(GXR,VX)..ARL;URJ202,VDJ200..VX..GCC201508-202104

ORCHID BROWN,TRIM0#,4#

main45286-60530-E0iGRJ200..5FC;VDJ200..09S..LUB201508-201707

ORCHID BROWN,TRIM0#

main45286-60540-C0iURJ202..VXR..GEN;VDJ200..VXR..GCC201908-202104

BLACK,TRIM1#,2#,42,46

main45286-60540-E0iVDJ200..LHD..VXR..GEN201908-202104

ORCHID BROWN,TRIM0#,47

45287COVER, STEERING COLUMN, LWR

main45287-60450-C0iGRJ200,VDJ200..SOB201109-202103

BLACK,TRIM1#

main45287-60450-E0iGRJ200,VDJ200..GX..SOB201201-201508

ORCHID BROWN,TRIM0#

main45287-60510-C0iVDJ200..VX;URJ202..LHD..VX;URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM200709-201508

BLACK,TRIM1#

sub45287-60510

main45287-60510-C0iVDJ200..VX;URJ202..LHD..VX;URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM201201-201508

BLACK,TRIM1#,2#

sub45287-60510

main45287-60510-C0iVDJ200..VX;URJ202..LHD..VX;URJ202,VDJ200..GX..ARL;GRJ200,URJ200..08S..ATM201201-201508

BLACK,TRIM2#

sub45287-60510

main45287-60510-E0iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

DK. BROWN,TRIM4#

sub45287-60510

main45287-60510-E1iGRJ200,URJ20#,VDJ200..LUB201201-201508

ORCHID BROWN,TRIM0#

sub45287-60510

main45287-60580-C0iURJ202..VX..ARL201508-202103

BLACK,TRIM2#,42,46

main45287-60580-C0iGRJ200..5FC..GXR201508-201707

BLACK,TRIM1#,2#,4#

main45287-60580-C0iURJ202..VXR..GEN;VDJ200..LHD..VXR201508-202104

BLACK,TRIM1#,2#,42,46

main45287-60580-C0iVDJ200..05S..LUB201508-202104

BLACK,TRIM1#

main45287-60580-C0iURJ202..GXR..ARL;GRJ200..5F..GCC..LUB;URJ202,VDJ200..VX..GCC201508-202104

BLACK,TRIM1#,2#

main45287-60580-C0iVDJ200..LHD..6FC..GXR..GEN201508-202104

BLACK,TRIM1#,2#,42,46,48,49,5#

main45287-60580-C0iGRJ200..6FC..GXR201708-202104

BLACK,TRIM1#,2#,46,48,49,5#

main45287-60580-E0iVDJ200..RHD..GXR..GEN;VDJ200..LHD..6FC..GXR..GEN201508-202104

ORCHID BROWN,TRIM0#,47

main45287-60580-E0iGRJ200..6FC..GXR201708-202104

ORCHID BROWN,TRIM4#

main45287-60580-E0iGRJ200..5FC;VDJ200..09S..LUB201508-201707

ORCHID BROWN,TRIM0#

main45287-60580-E0iGRJ200..GX..LUB201708-202104

ORCHID BROWN,TRIM47

main45287-60580-E0iURJ200;URJ202..GXR..GCC;VDJ200..RHD..(VX,VXR);URJ202..VXR..(ARL,GCC);VDJ200..GXR..(ARL,GCC);URJ202,VDJ200..LHD..VX..GEN201508-202104

ORCHID BROWN,TRIM0#,4#

main45287-60590-C0iVDJ200..LHD..VXR..GEN201908-202104

BLACK,TRIM1#,2#,42,46

main45287-60590-E0iVDJ200..LHD..VXR..GEN201908-202104

ORCHID BROWN,TRIM0#,47

45817STOPPER, STEERING SHAFT THRUST

main45817-60020iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-202104

45897BOLT, STEERING LOCK SET

main45897-12020iGRJ200,VDJ200..K200709-202104

9011908560

main90119-08560

9016450034

main90164-50034

9017806012

main90178-06012

9155380616

main91553-80616

9415181000

main94151-81000
