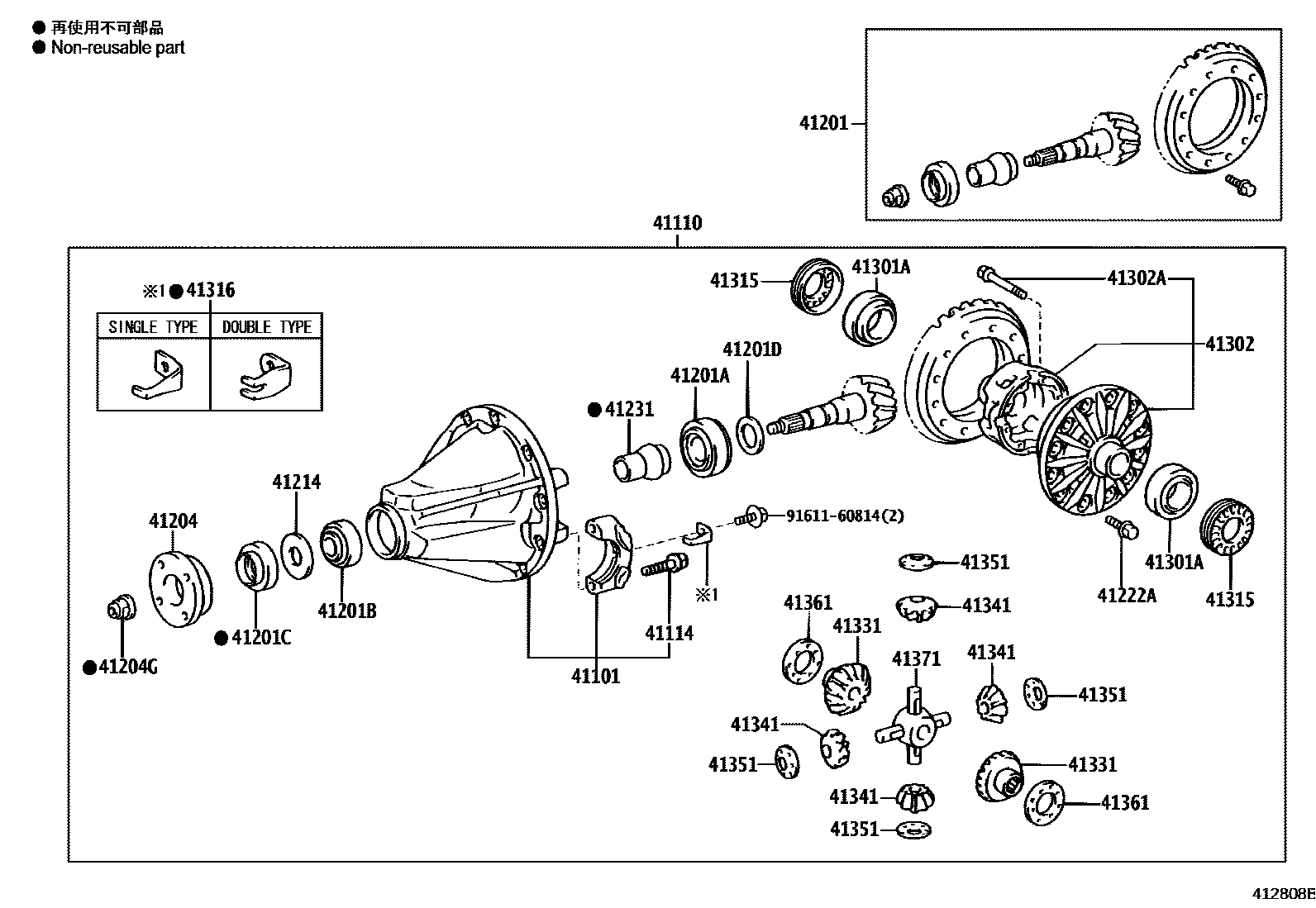

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1LIMITED SLIP DIFFERENTIAL 0003 1REAR DIFFERENTIAL LOCK 0004 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-60180iGRJ200..RHD..05S200709-202104

main41101-60210iURJ200201508-202104

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-60A10iVDJ200..08S..GX;VDJ200..GX..SOB..G;VDJ200..LHD..05S..LUB;URJ200,VDJ200..(STD,VX)..G200709-201505

*FGR=43:11=3.909

sub41110-60A11

main41110-60A11iVDJ200..09S..SOB;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB201505-202104

*FGR=43:11=3.909

main41110-60A20iGRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..G200709-201505

*FGR=41:10=4.100

sub41110-60A21

main41110-60A21iGRJ200..5FC201505-201707

*FGR=41:10=4.100

main41110-60A30iGRJ200,URJ202..5F,6FC201201-201505

*FGR=43:10=4.300

sub41110-60A31

main41110-60A31iGRJ200,URJ202..5F,6FC201505-202104

*FGR=43:10=4.300

main41110-60C40iURJ200201508-202104

*FGR=43:13=3.307

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main41114-60020iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-80492iGRJ200..5FC200709-201505

*FGR=41:10=4.100

main41201-80493iGRJ200,URJ202..5F,6FC201201-201505

*FGR=43:10=4.300

main41201-80496iVDJ200..K200709-201505

*FGR=43:11=3.909

main41201-80595iURJ200,VDJ200201505-202104

*FGR=43:11=3.909

main41201-80596iGRJ200..5FC201505-201707

*FGR=41:10=4.100

main41201-80597iGRJ200..09S..SOB;URJ202..VXR..(ARL,GCC);GRJ200,URJ202..6FC..(GX,GXR)..GCC;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201505-202104

*FGR=43:10=4.300

main41201-80605iURJ200201508-202104

*FGR=43:13=3.307

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-40111iGRJ200..RHD..05S200709-202104

main90366-40138iURJ200201508-202104

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-33006iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-202104

main90366-33011iURJ200201508-202104

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-45028iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-201505

main90311-45036iGRJ200,URJ20#,VDJ200201505-202104

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90564-40004iGRJ200..RHD..05S200709-202104

T=1.05

main90564-40006iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2200709-202104

T=1.075

main90564-40007iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-202104

T=1.10

main90564-40008iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-202104

T=1.125

main90564-40009iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2200709-202104

T=1.15

main90564-40010iGRJ200,VDJ200..K200709-202104

T=1.175

main90564-40011iGRJ200,VDJ200..K200709-202104

T=1.20

main90564-40012iGRJ200..RHD..05S200709-202104

T=1.225

main90564-40013iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-202104

T=1.25

main90564-40014iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-202104

T=1.275

main90564-40015iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-202104

T=1.30

main90564-40016iGRJ200,VDJ200..K200709-202104

T=1.325

main90564-40017iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-202104

T=1.35

main90564-40018iGRJ200,VDJ200..K200709-202104

T=1.375

main90564-40019iGRJ200,VDJ200..K200709-202104

T=1.40

main90564-40020iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104

T=1.425

main90564-40021iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-202104

T=1.45

main90564-40022iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-202104

T=1.475

main90564-40023iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-202104

T=1.50

main90564-40024iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-202104

T=1.525

main90564-40025iGRJ200..RHD..05S200709-202104

T=1.55

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-60060iGRJ200..RHD..05S200709-201505

sub41204-60080

sub90311-45036

main41204-60080iGRJ200,URJ20#,VDJ200201505-202104

41204GNUT (FOR DRIVE PINION COMPANION FLANGE REAR)

main90179-22029iGRJ200..RHD..05S200709-202104

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-60020iGRJ200..RHD..05S200709-202104

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90901-05002iGRJ200..RHD..05S200709-202104

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-60040iGRJ200..RHD..05S200709-202104

main41231-60050iURJ200201508-202104

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50054iGRJ200..RHD..05S200709-201702

sub90366-50177

main90366-50177iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201702-202104

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-60080iGRJ200..RHD..05S200709-202104

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-10021iGRJ200..RHD..05S200709-202104

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2200709-202104

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iGRJ200..RHD..05S200709-202104

SINGLE TYPE

main41317-30010iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2200709-202104

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-60060iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104

41341PINION, REAR DIFFERENTIAL

main41341-55013iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-60010iGRJ200..RHD..05S200709-202104

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-60810iGRJ200..RHD..05S200709-202104

T=1.550

main41361-60830iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-202104

T=1.600

main41361-60850iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-202104

T=1.650

main41361-60870iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104

T=1.700

main41361-60890iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2200709-202104

T=1.750

main41361-60A10iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2200709-202104

T=1.800

main41361-60A30iGRJ200,VDJ200..K200709-202104

T=1.850

main41361-60A50iGRJ200..RHD..05S200709-202104

T=1.900

main41361-60A70iGRJ200,VDJ200..K200709-202104

T=1.950

main41361-60A90iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-202104

T=2.000

main41361-60B10iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB200709-202104

T=2.050

main41361-60B30iGRJ200,VDJ200..K200709-202104

T=2.100

41371SPIDER, REAR DIFFERENTIAL

main41371-60050iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN200709-202104

9161160814

main91611-60814

24 parts on this diagram · 4 diagrams in section
