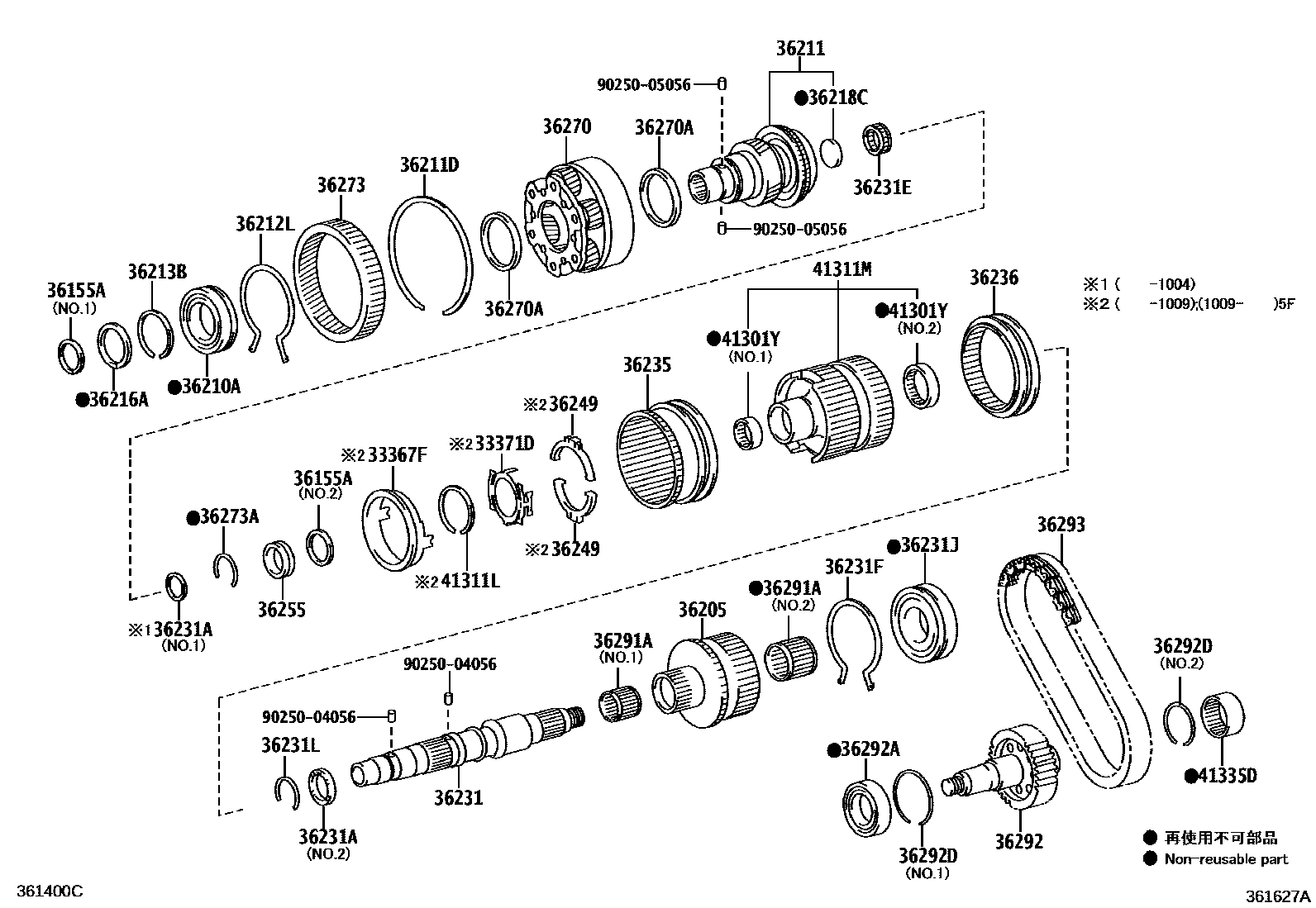

TRANSFER GEAR

33367FRING, SYNCHRONIZER, NO.1

main33367-34010iGRJ200,URJ200,UZJ200,VDJ200..ATM200709-201009

33371DSPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER)

main33371-34030iGRJ200..RHD..05S200709-200907

36155ARING, TRANSFER OIL SEAL

main36155-34010iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

NO.1

main36155-34030iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202103

NO.2

36205SPROCKET SUB-ASSY, TRANSFER DRIVE

main36205-60030iGRJ200..RHD..05S200709-200907

36210ABEARING (FOR TRANSFER INPUT SHAFT)

main90363-68001iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

36211SHAFT, TRANSFER INPUT

main36201-34030iGRJ200,UZJ200..5FC200709-201009

main36201-34031iGRJ200..ATM201508-202104

main36201-34040iVDJ200..08S..5F;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB;GRJ200,VDJ200..5F..SOB..G201109-201508

main36201-34050iURJ200,VDJ200..6FC..G201009-201201

36211DRING, HOLE SNAP (FOR TRANSFER INPUT SHAFT)

main90520-99128iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

T=2.0

36212LRING, SHAFT SNAP

main90520-99123iGRJ200..RHD..05S200709-200907

T=2.4

36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)

main90520-64005iGRJ200,VDJ200..K201109-201201

T=2.13,MARK C

main90520-64006iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

T=2.18,MARK D

main90520-64007iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

T=2.23,MARK E

main90520-64008iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

T=2.28,MARK F

main90520-64009iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

T=2.33,MARK G

main90520-64010iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

T=2.38,MARK H

main90520-64011iGRJ200,VDJ200..K201109-201201

T=2.43,MARK J

36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1

main36216-34010iGRJ200..RHD..05S200709-200907

36218CPLUG, TRANSFER INPUT SHAFT

main36218-34010iGRJ200,VDJ200..K201109-201201

36231SHAFT, TRANSFER OUTPUT, REAR

main36231-60120iUZJ200,VDJ200;GRJ200..08S,09S;GRJ200..LHD..05S200709-201004

main36231-60121iGRJ200,VDJ200..K201109-201201

main36231-60122iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201605-202104

36231ASPACER (FOR TRANSFER OUTPUT SHAFT)

main90560-32009iGRJ200..RHD..05S200709-200907

T=3.0,NO.1

sub36231-34021

main90561-43001iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

T=7.0,NO.2

36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)

main90364-32025iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202103

36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

main90520-99126iGRJ200..RHD..05S200709-200907

T=2.4

36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)

main90363-41004iGRJ200..RHD..05S200709-200907

36231LRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT REAR)

main90520-39054iGRJ200..RHD..05S200709-200907

T=3.0

36235SLEEVE, TRANSFER HIGH & LOW CLUTCH

main36235-34020iGRJ200..RHD..05S200709-200907

main36235-34030iGRJ200,URJ20#,VDJ200..ATM..G201109-201507

main36235-34031iGRJ200,URJ20#,VDJ200..ATM201507-201508

36236SLEEVE, FRONT DRIVE CLUTCH

main36236-60090iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

36249KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2

main36249-34020×2iGRJ200..RHD..05S200709-200907

36255SPACER, TRANSFER OUTPUT SHAFT, NO.1

main36255-34020iGRJ200..RHD..05S200709-200907

main36255-34021iGRJ200..09S..SOB;VDJ200..ARL..LUB;GRJ200,URJ200..ATM;VDJ200..LHD..6FC..GEN;URJ202..VXR..(ARL,GCC);VDJ200..RHD..(05S,08S)..GEN;GRJ200,URJ202..(05S,08S)..(GX,VX)..GEN201508-202104

36270GEAR ASSY, TRANSFER LOW PLANETARY

main36270-34020iVDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G200709-201201

main36270-34030iURJ202..VX..GEN;GRJ200,URJ200..ATM;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104

36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)

main90374-73001×2iGRJ200..RHD..05S200709-200907

36273GEAR, TRANSFER LOW PLANETARY RING

main36273-34010iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)

main90520-32016iGRJ200..RHD..05S200709-200907

main90520-34033iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

36291ABEARING (FOR TRANSFER DRIVE SPROCKET)

main90364-42005iVDJ200..09S..SOB;VDJ200..05S..GCC..SOB;GRJ200..(05S,08S)..5F..GCC;GRJ200,VDJ200..LHD..5F..GEN..LUB201508-202103

NO.1

main90364-42009iURJ200;URJ202..VX..GEN;VDJ200..6FC..GXR..GCC;URJ202..(GXR,VXR)..GCC;VDJ200..6FC..(ARL,GEN)..LUB202103-202104

NO.1

main90364-49003iGRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G200709-201201

NO.2

36292SPROCKET, TRANSFER DRIVEN

main36292-34010iGRJ200..RHD..05S200709-200907

main36292-34020iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201605-202103

36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)

main90363-40044iGRJ200,UZJ200,VDJ200200709-200812

main90363-40083iGRJ200,VDJ200..K201109-201201

main90363-40097iURJ200;URJ202..VX..GEN;VDJ200..6FC..GXR..GCC;URJ202..(GXR,VXR)..GCC;VDJ200..6FC..(ARL,GEN)..LUB202103-202104

36292DRING SHAFT SNAP(FOR TRANSFER DRIVEN SPROCKET)

main90520-56005iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202103

T=1.0,NO MARK,NO.2

main90521-84003iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

T=1.8,MARK B,NO.1

36293CHAIN, TRANSFER FRONT DRIVE

main36293-34010iGRJ200..SOB..G;VDJ200..08S..GX;GRJ200,URJ20#..ATM;VDJ200..GX..SOB..G;VDJ200..(STD,VX)..G;GRJ200..LHD..08S..5F;VDJ200..LHD..05S..LUB201109-201508

41301YBEARING, NEEDLE ROLLER(FOR DIFFERENTIAL CASE)

main90364-38023iGRJ200,VDJ200..K201109-201201

NO.1

main90364-38026iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201803-202103

NO.1

main90364-60001iGRJ200..RHD..05S200709-200907

NO.2

main90364-60002iGRJ200..5F;VDJ200..GX;URJ202..ARL;URJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC;VDJ200..LHD..5F..GEN..LUB201803-202103

NO.2

41311LRING, SHAFT SNAP(FOR CENTER DIFFERENTIAL CASE)

main90520-55002iGRJ200,URJ200,UZJ200,VDJ200..ATM200709-201009

T=1.0

41311MCASE, CENTER DIFFERENTIAL

main41301-34040iGRJ200,URJ20#,VDJ200..ATM..G201109-201408

main41301-34041iGRJ200,URJ20#,VDJ200..ATM201408-201508

main41301-34042iGRJ200,URJ20#,VDJ200..ATM201609-201802

main41301-34043iURJ202..ARL;URJ202..VX..GCC;VDJ200..6FC..GX;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC201803-202103

main41301-34070iVDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G200709-201201

main41301-34071iGRJ200,VDJ200..5F201408-201508

main41301-34072iGRJ200,VDJ200..5F201609-201802

main41301-34073iVDJ200..RHD..5F..LUB;VDJ200..5F..GCC..LUB201803-202104

41335DBEARING (FOR SIDE GEAR SHAFT HOLDER)

main90365-40005iGRJ200,VDJ200..K201109-201201

main90365-40009iURJ202..VX..GCC;VDJ200..09S..SOB;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC;VDJ200..05S..(ARL,GCC);VDJ200..LHD..5F..GEN..LUB;GRJ200..(05S,08S)..5F..GCC;GRJ200,URJ2201508-202103

9025004056

main90250-04056

9025005056

main90250-05056

36 parts on this diagram · 1 diagram in section
