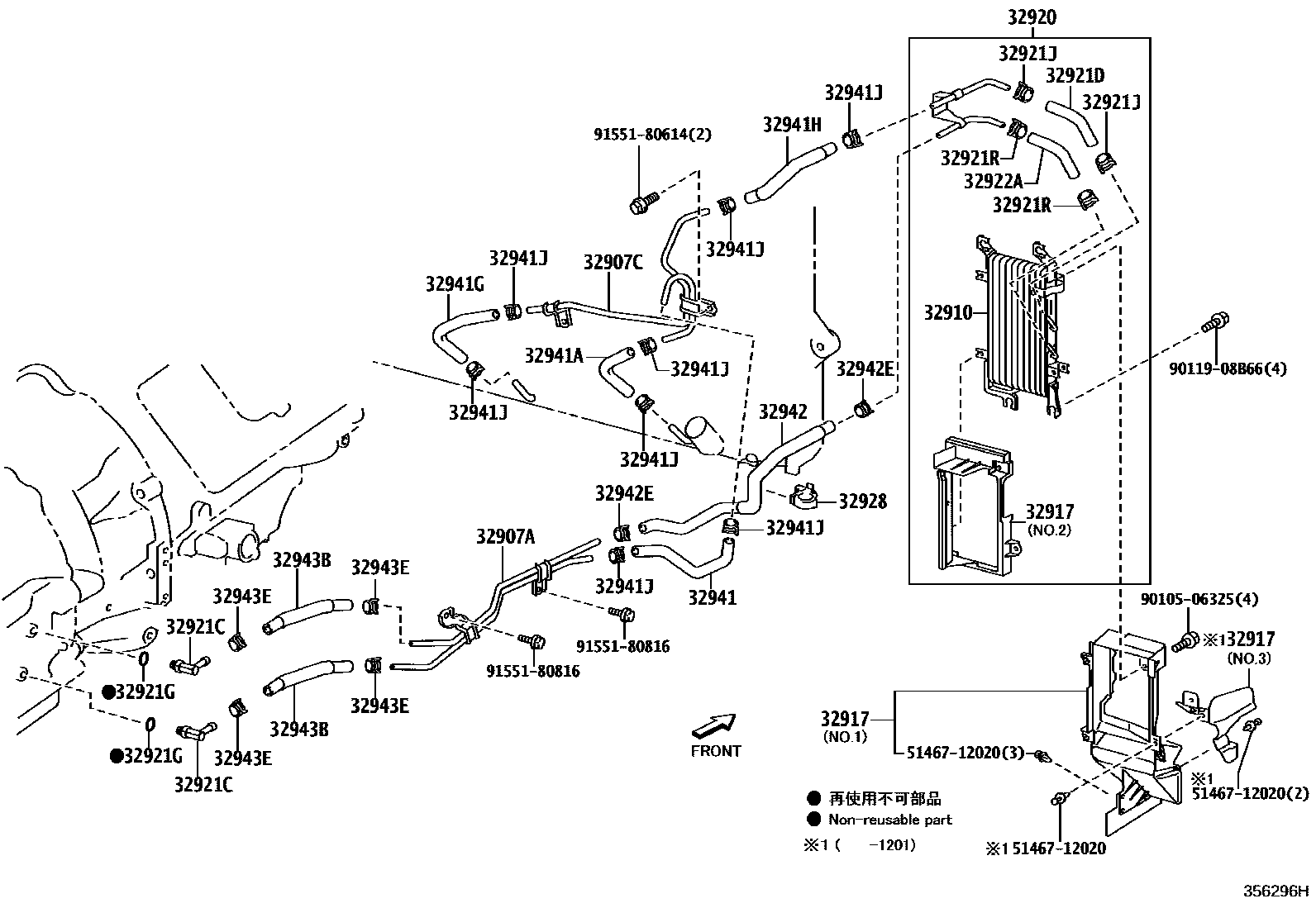

OIL COOLER & TUBE (ATM)

0001 1A750F 0002 1A750F 0003 1A750F 0004 1AB60F 0005 1AB60F 0006 1AB60F 0007 1AE80F 0008 1AB60F 0009 1AC60F

32907ATUBE, OIL COOLER

main32907-60160iVDJ200..ARL..K201109-201201

main32907-60161iVDJ200..6FC201201-201508

main32907-60190iGRJ200..5FC200709-201201

main32907-60191iGRJ200..5FC201201-201508

main32907-60210iUZJ200200709-201201

main32907-60240iURJ200201007-201201

main32907-60360iURJ200201508-202104

main32907-60380iGRJ200..6FC201708-202104

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-60170iVDJ200..ARL..K201109-201201

main32907-60180iGRJ200..5FC201201-201508

main32907-60220iUZJ200200709-201201

main32907-60250iURJ20#201201-201508

main32907-60251iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL201508-202103

main32907-60370iGRJ200..6FC201708-202104

32910COOLER ASSY, OIL

main32910-60160iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-201201

main32910-60161iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103

32917DUCT, TRANSMISSION OIL COOLER AIR

main32917-60010iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-201201

NO.1

main32917-60020iGRJ200,URJ20#,VDJ200..ATM..G201109-201508

NO.2

main32917-60040iGRJ200..5FC200709-201201

NO.3

main32917-60070iGRJ200,URJ20#,VDJ200..ATM201201-201508

NO.1

main32917-60090iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103

NO.1

32920COOLER ASSY, OIL W/HOSE

main32920-60190iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-201201

main32920-60191iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103

32921CUNION(FOR OIL COOLER TUBE)

main90407-14033×2iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-201201

main90407-14034×2iURJ202..ARL;URJ202..VX..GCC;VDJ200..6FC..GX;URJ202..VXR..GEN;VDJ200..(VX,VXR)..GCC201806-202103

32921DHOSE(FOR OIL COOLER INLET)

main32943-60390iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-201201

main32943-60790iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-201201

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004×2iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-201201

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-201201

32922AHOSE(FOR OIL COOLER OUTLET)

main32943-60390iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-201201

main32943-60790iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202103

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-60140iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-201201

32941HOSE, OIL COOLER INLET, NO.1

main32941-60310iVDJ200..05S..6FC;VDJ200..(VX,VXR)..GCC201508-202103

main32941-60320iGRJ200..5FC200709-201201

main32941-60330iUZJ200200709-201201

main32941-60340iURJ20#201201-201508

main32941-60390iURJ200201508-202104

main32941-60440iGRJ200..6FC201708-202104

32941AHOSE, OIL COOLER INLET, NO.2

main32943-60360iVDJ200..05S..6FC;VDJ200..(VX,VXR)..GCC201508-202103

main32943-60420iGRJ200..5FC200709-201201

main32943-60460iUZJ200200709-201201

main32943-60490iURJ20#201201-201508

main32943-60770iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL201508-202103

main32943-60830iGRJ200..6FC201708-202104

32941GHOSE, OIL COOLER INLET, NO.3

main32943-60400iGRJ200..5FC200709-201201

main32943-60640iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL201508-202103

sub32943-60641

main32943-60820iGRJ200..6FC201708-202104

main90445-17182iURJ20#,VDJ200..6FC..G201109-201508

32941HHOSE, OIL COOLER INLET, NO.4

main32943-60380iVDJ200..05S..6FC;VDJ200..(VX,VXR)..GCC201508-202103

main32943-60430iGRJ200..5FC201508-201707

main32943-60450iUZJ200200709-201201

main32943-60500iURJ20#201201-201508

main32943-60780iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL201508-202103

main32943-60840iGRJ200..6FC201708-202104

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×8iVDJ200..6FC..G200709-201201

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-60440iVDJ200..6FC..G201109-201508

main32942-60450iGRJ200..5FC200709-201201

main32942-60470iUZJ200200709-201201

main32942-60490iURJ200201007-201201

main32942-60550iURJ200201508-202104

main32942-60610iGRJ200..6FC201708-202104

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-201201

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-60800iURJ200201508-202104

32943BHOSE, TRANSMISSION OIL COOLER

main32943-60350×2iVDJ200..ARL..K201109-201201

main32943-60351×2iVDJ200..6FC..(ARL,GEN)..LUB;VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC201508-202104

main32943-60440×2iGRJ200..5FC201201-201508

main32943-60470iURJ20#201201-201508

NO.1

main32943-60480iURJ200201007-201201

NO.2

main32943-60510iUZJ200200709-201201

NO.1

main32943-60520iUZJ200200709-201201

NO.2

main32943-60850iGRJ200..6FC201708-202104

NO.1:REFER ILLUST.

main32943-60860iGRJ200..6FC201708-202104

NO.2:REFER ILLUST.

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×4iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-201201

5146712020RETAINER, ENGINE UNDER COVER

main51467-12020

9010506325

main90105-06325

9011908B66

main90119-08B66

9155180614

main91551-80614

9155180816

main91551-80816

27 parts on this diagram · 9 diagrams in section
