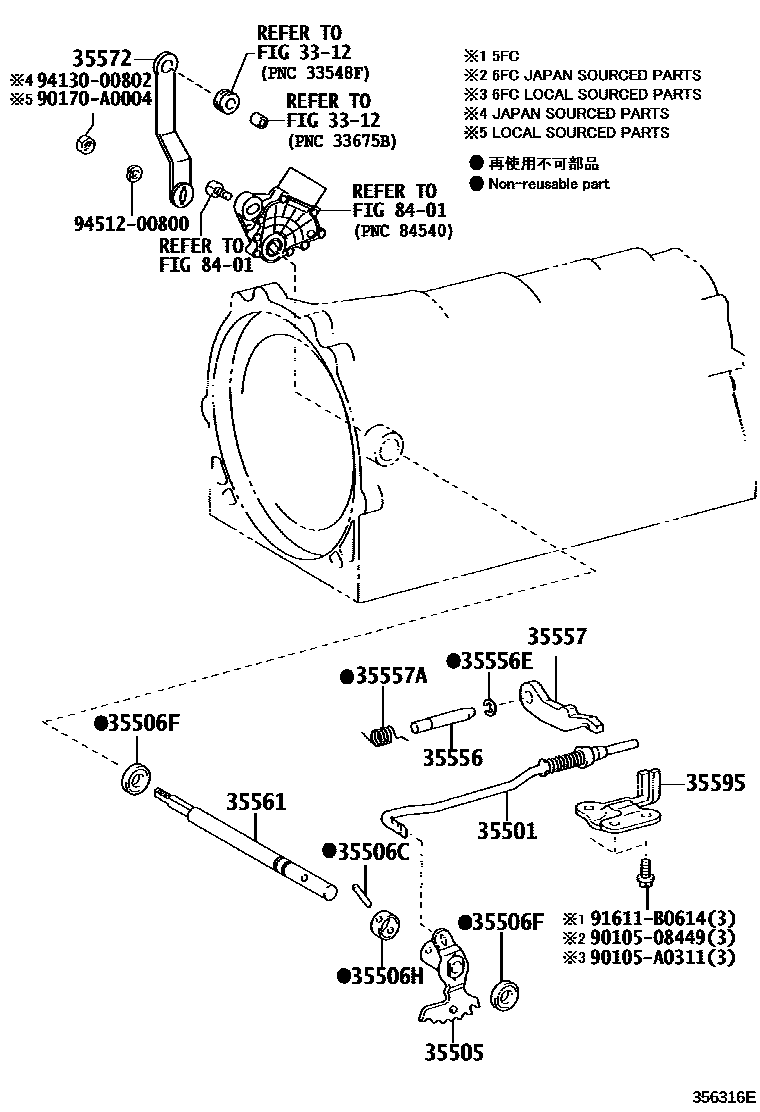

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A750F,AB60F 0002 1AE80F 0003 1AC60F

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-34020iVDJ200..ARL..K200709-202104

main35501-60040iURJ200201508-202104

main35501-71020iGRJ200..6FC201708-202104

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-60060iGRJ200,URJ20#,VDJ200..ATM..G200709-202104

main35505-60080iURJ200201508-201807

sub35505-60100

main35505-60090iGRJ200..6FC201708-202104

main35505-60100iURJ200201808-202104

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGRJ200,URJ20#,VDJ200..ATM..G200709-202104

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iGRJ200,URJ20#,VDJ200..ATM..G200709-202104

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-202104

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-202104

main35556-60030iURJ200201508-202104

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-202104

35557PAWL, PARKING LOCK

main35557-34010iURJ200,VDJ200..6FC..G200709-202104

main35557-60040iGRJ200..5FC200709-201707

main35557-60050iURJ200201508-202104

main35557-71010iGRJ200..6FC201708-202104

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-24007iURJ200201508-202104

main90949-03123iGRJ200,URJ20#,VDJ200..ATM..G200709-202104

35561SHAFT, MANUAL VALVE LEVER

main35561-34010iURJ200,VDJ200..6FC..G200709-202104

main35561-50020iGRJ200,UZJ200..5FC200709-202104

main35561-60040iURJ200201508-202104

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-60091iGRJ200..5FC200709-201707

main35572-60100iURJ200201007-202104

main35572-60110iVDJ200..ARL..K200709-202104

main35572-60120iUZJ200200709-201201

main35572-60130iURJ200201508-201803

sub35572-60150

main35572-60140iGRJ200..6FC201708-202104

main35572-60150iURJ200201804-202104

35595BRACKET, PARKING LOCK PAWL

main35595-34010iURJ20#,VDJ200..6FC..G200709-202104

main35595-60030iGRJ200..5FC200709-201707

main35595-60040iURJ200201508-202104

main35595-71010iGRJ200..6FC201708-202104

8401

9010508449

main90105-08449

90105A0311

main90105-A0311

90170A0004

main90170-A0004

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

20 parts on this diagram · 3 diagrams in section
