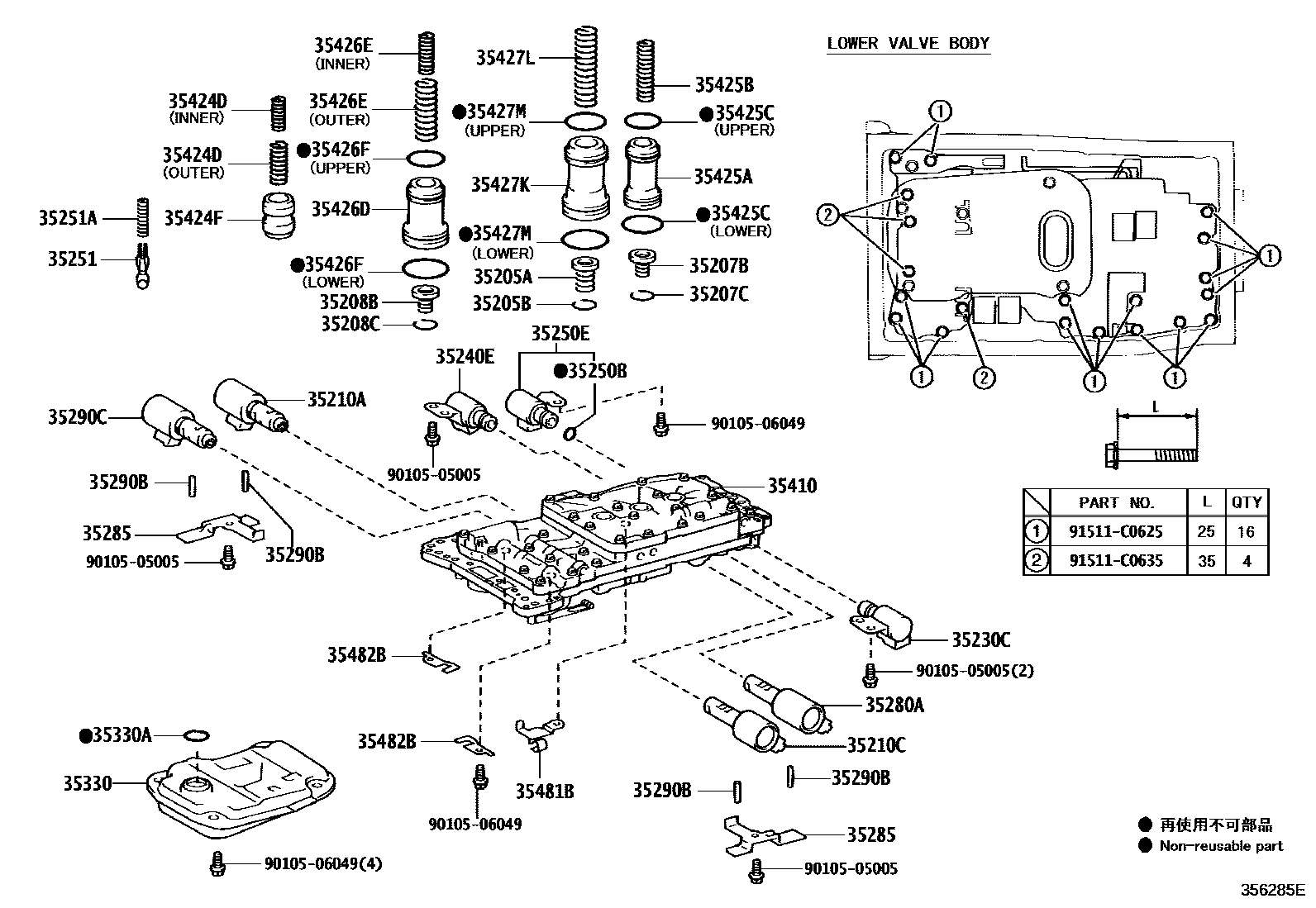

VALVE BODY & OIL STRAINER (ATM)

0001 1A750F 0002 1AB60F 0003 1AE80F 0004 1A750F 0005 1AB60F 0006 1AE80F 0007 1AC60F 0008 1AC60F

35205ASPRING SUB-ASSY, B-3 ACCUMULATOR

main35205-50010iUZJ200201105-201201

main35205-60010iGRJ200..5FC;VDJ200..6FC..(ARL,GEN)..LUB;VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC200709-202104

main35205-60030iURJ202..VX..GCC;URJ202..VXR..GEN;URJ202..(GXR,VX)..ARL201201-202104

35205BRING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING)

main90521-22004iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-202104

35207BSPRING SUB-ASSY, C-2 ACCUMULATOR

main35205-34020iVDJ200..05S..6FC;VDJ200..(VX,VXR)..GCC200709-202104

main35205-60020iURJ202201201-202104

main35207-22010iGRJ200,UZJ200..5FC200709-201707

35207CRING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING)

main90521-22004iGRJ200,URJ20#,VDJ200..ATM..G200709-202104

35208BSPRING SUB-ASSY, C-3 ACCUMULATOR

main35205-34030iURJ20#201007-202104

main35208-22010iVDJ200..6FC..(ARL,GEN)..LUB;VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC200709-202104

main35208-60010iGRJ200,UZJ200..5FC200709-201707

35208CRING, HOLE SNAP (FOR C-3 ACCUMULATOR SPRING)

main90521-22004iGRJ200..5FC;URJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC200709-202104

35210AVALVE, SOLENOID(SL1)

main35210-50010iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-202104

main35210-71010iGRJ200..6FC201708-202104

main35270-60010iURJ200201508-201806

main35270-60030iURJ200201806-202104

35210CVALVE, SOLENOID(SL2)

main35210-50010iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-202104

main35210-71010iGRJ200..6FC201708-202104

main35270-60020iURJ200201508-201903

sub35270-60060

main35270-60060iURJ200201904-202104

35230CVALVE, SOLENOID(SR)

main35230-60010iGRJ200..5FC200709-201707

35240EVALVE, SOLENOID(S1)

main35240-50030iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC200709-202104

main35240-60020iGRJ200..5FC200709-201707

35250BRING, O NO.3(FOR TRANSMISSION SOLENOID)

main90301-06004iGRJ200,UZJ200..5FC200709-201707

35250EVALVE, SOLENOID(S2)

main35250-60010iGRJ200,UZJ200..5FC200709-201707

35251BODY, CHECK BALL

main35251-30020iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-202104

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iURJ200201403-201508

(J)

main90501-03005iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-202104

main90501-A0116iURJ200201403-201508

(L)

35280AVALVE, SOLENOID(SLU)

main35280-30050iGRJ200..5FC200709-201707

main35280-34010iURJ200,VDJ200..6FC..G200709-202104

main35280-60020iURJ200201508-202104

main35280-71010iGRJ200..6FC201708-202104

sub35280-71020

35285PLATE, SOLENOID LOCK

main35285-34010iGRJ200..5FC200709-201707

main35285-50020iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC200709-202104

main35285-60030iURJ200201508-202104

NO.1:REFER ILLUST.

main35285-60040iURJ200201508-202104

NO.2:REFER ILLUST.

main35285-71010iGRJ200..6FC201708-202104

35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)

main90250-03045iGRJ200,UZJ200,VDJ200..ATM..G200709-202104

main90250-03045iURJ200201007-201508

(J)

main90250-A0003iURJ200201007-201508

(L)

35290CVALVE, SOLENOID(SLT)

main35290-34010iVDJ200..ARL..K200709-202104

main35290-60050iURJ200201508-202104

main35290-71020iGRJ200..6FC201708-202104

35330STRAINER ASSY, VALVE BODY OIL

main35330-0C010iURJ200201204-201504

(L),NO MARK

main35330-0C020iURJ200201504-201508

(L),MARK=5

main35330-60050iGRJ200..5FC200709-201707

main35330-60060iURJ200,VDJ200..6FC..G200709-201504

main35330-60060iURJ200201204-201504

(J),NO MARK

main35330-60070iURJ200201504-201508

(J),MARK=5

main35330-60070iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC201508-202104

main35330-60080iURJ200201508-202104

main35330-71010iGRJ200..6FC201708-202104

35330ARING, O (FOR OIL STRAINER)

main90301-31014iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-202104

35410BODY ASSY, TRANSMISSION VALVE

main35410-0W010iURJ200201007-201201

(L)

sub35410-0W011

main35410-0W010iURJ200201201-201404

TYPE B:REFER 35-01

sub35410-0W011

main35410-0W011iURJ200201405-201503

TYPE B:REFER 35-01

sub35410-0W020

main35410-0W020iURJ200201504-201508

TYPE B:REFER 35-01

main35410-60590iURJ200201007-201201

(J)

sub35410-60591

main35410-60590iURJ200201201-201407

TYPE A:REFER 35-01

sub35410-60591

main35410-60591iURJ200201408-201503

TYPE A:REFER 35-01

sub35410-60680

main35410-60600iVDJ200..6FC..G200709-201407

sub35410-60601

main35410-60601iVDJ200..6FC201408-201503

sub35410-60670

main35410-60610iGRJ200..5FC200709-201707

sub35410-35890

main35410-60640iURJ202201201-201407

sub35410-60641

main35410-60641iURJ202201408-201503

sub35410-60690

main35410-60650iURJ200201508-202104

main35410-60670iVDJ200..6FC201504-202104

main35410-60680iURJ200201504-201508

TYPE A:REFER 35-01

main35410-60690iURJ202..VX..GEN;URJ202..GXR..GCC;URJ202..VXR..(ARL,GCC)201504-202104

main35410-60700iGRJ200..6FC201708-202104

sub35410-60701

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-16181iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC200709-202104

INNER

main90501-16181iURJ200201201-201508

(J),INNER

main90501-20173iGRJ200..5FC200709-201707

INNER

main90501-21040iGRJ200..5FC200709-201707

OUTER

main90501-24039iURJ200201405-201508

(J),OUTER

main90501-24039iVDJ200..6FC..G200709-202104

OUTER

main90501-A0100iURJ200201307-201508

(L),INNER

main90501-A0134iURJ200201405-201508

(L),OUTER

35424FVALVE, C-1 ACCUMULATOR

main35424-60030iVDJ200..ARL..K200709-202104

35425APISTON, C-2 ACCUMULATOR

main35425-34010iURJ20#,VDJ200..6FC..G200709-202104

main35425-50020iGRJ200..5FC200709-201707

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-20184iVDJ200..6FC..G200709-202104

main90501-20185iURJ202201201-202104

main90501-21046iURJ200201007-201404

main90501-21046iURJ200201405-201508

(J)

main90501-22062iGRJ200..5FC200709-201707

main90501-A0117iURJ200201405-201508

(L)

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-20008iGRJ200,URJ20#,VDJ200..ATM..G200709-202104

UPPER

main90301-28008iGRJ200..5FC;URJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC200709-202104

LOWER

35426DPISTON, C-3 ACCUMULATOR

main35426-50020iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-202104

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90501-24038iGRJ200..5FC200709-201707

INNER

main90501-25028iURJ202..VX..GEN;URJ202..GXR..GCC;URJ202..VXR..(ARL,GCC)201508-202104

main90501-25028iGRJ200,UZJ200..5FC200709-201707

OUTER

main90501-25062iURJ200201007-201404

main90501-25062iURJ200201405-201508

(J)

main90501-26099iVDJ200..ARL..K200709-202104

main90501-A0127iURJ200201405-201508

(L)

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-26011iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-202104

UPPER

main90301-34011iVDJ200..ARL..K200709-202104

LOWER

35427KPISTON, B-3 ACCUMULATOR

main35427-50020iVDJ200..ARL..K200709-202104

35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)

main90501-24015iURJ202201201-202104

main90501-26098iURJ200200709-202104

main90501-26098iURJ200201201-201508

(J)

main90501-27036iGRJ200..5FC200709-201707

main90501-A0106iURJ200201307-201508

(L)

35427MRING, O (FOR B-3 ACCUMULATOR PISTON)

main90301-23010iGRJ200,URJ200,UZJ200,VDJ200..ATM..G200709-202104

UPPER

main90301-34011iGRJ200,URJ20#,VDJ200..ATM..G200709-202104

LOWER

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-34010iVDJ200..ARL..K200709-202104

main35481-50050iURJ200201508-202104

main35481-60010iGRJ200,UZJ200..5FC200709-201707

35482BCLAMP, TEMPERATURE SENSOR

main35482-60040iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC200709-202104

main35482-73010iURJ200201508-202104

9010505005

main90105-05005

9010506049

main90105-06049

91511C0625

main91511-C0625

91511C0635

main91511-C0635
