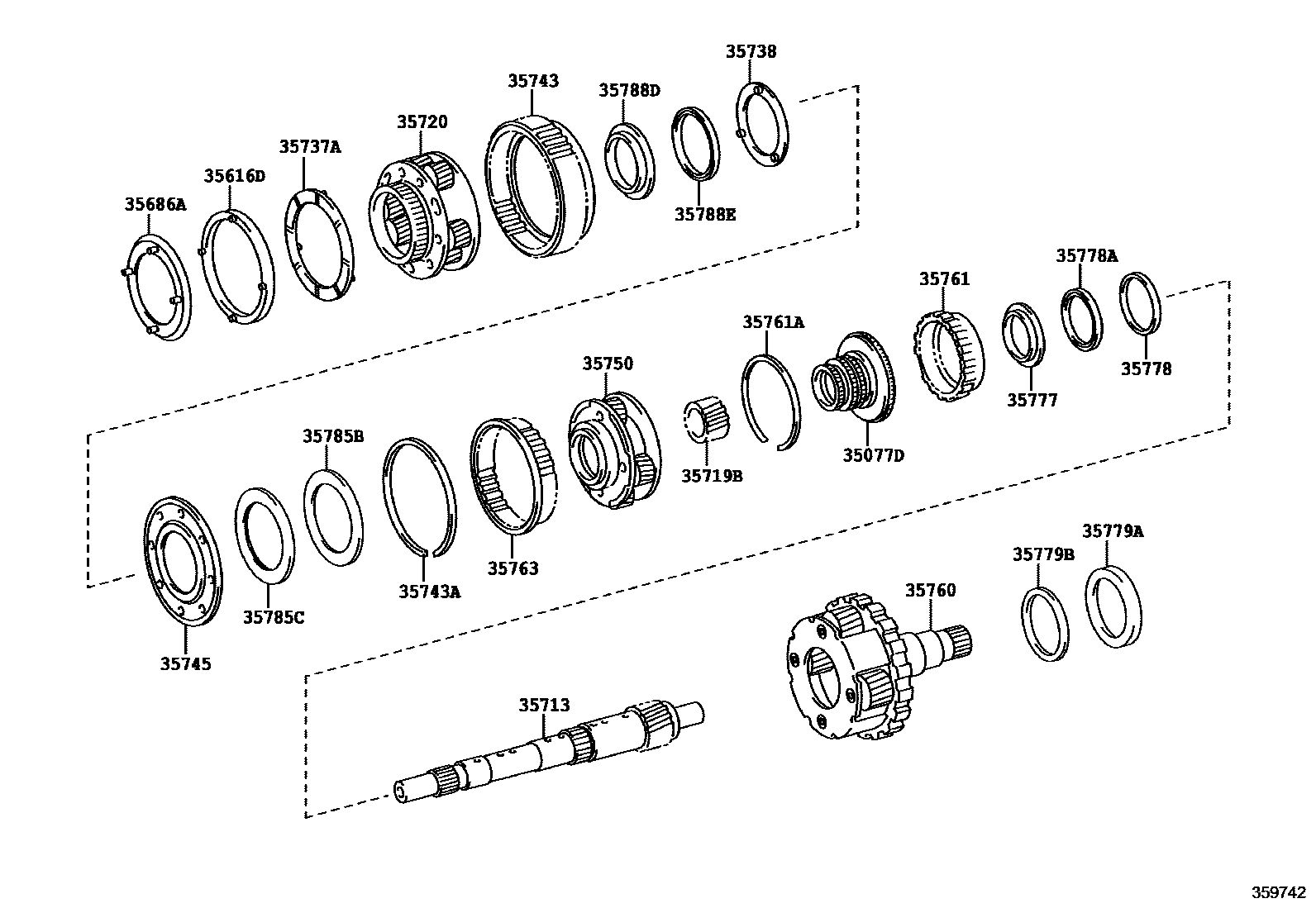

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
(L)
main35077-60020iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC200709-202104
(J)
35616DWASHER, CLUTCH DRUM THRUST
35686AWASHER, CLUTCH DRUM THRUST, NO.2
35713SHAFT, INTERMEDIATE
(L)
(J)
35719BGEAR, PLANETARY SUN
35720GEAR ASSY, FRONT PLANETARY
35737WASHER, PLANETARY CARRIER THRUST
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743GEAR, FRONT PLANETARY RING
35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
35745FLANGE, FRONT PLANETARY RING GEAR
35750GEAR ASSY, CENTER PLANETARY
35760GEAR ASSY, REAR PLANETARY
(L)
(J)
main35760-60130iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC¥39,200200709-202104
35761GEAR, REAR PLANETARY RING
(L)
(J)
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
(J)
main90520-99137iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC200709-202104
(L)
35763GEAR, CENTER PLANETARY RING
35777RACE, THRUST BEARING, NO.7
(L)
(J)
35778RACE, THRUST BEARING, NO.8
(L)
(J)
35778ABEARING, THRUST NEEDLE ROLLER
(J)
(L)
35779ARACE, THRUST BEARING, NO.9
(L)
(J)
35779BBEARING, THRUST NEEDLE ROLLER
(J)
(L)
35785BRACE, THRUST BEARING, NO.4
main35785-34010iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC200709-202104
35785CBEARING, THRUST NEEDLE ROLLER
35788DRACE, THRUST BEARING, NO.3
35788EBEARING, THRUST NEEDLE ROLLER
main90374-54004iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC¥1,200200709-202104
26 parts on this diagram · 4 diagrams in section
