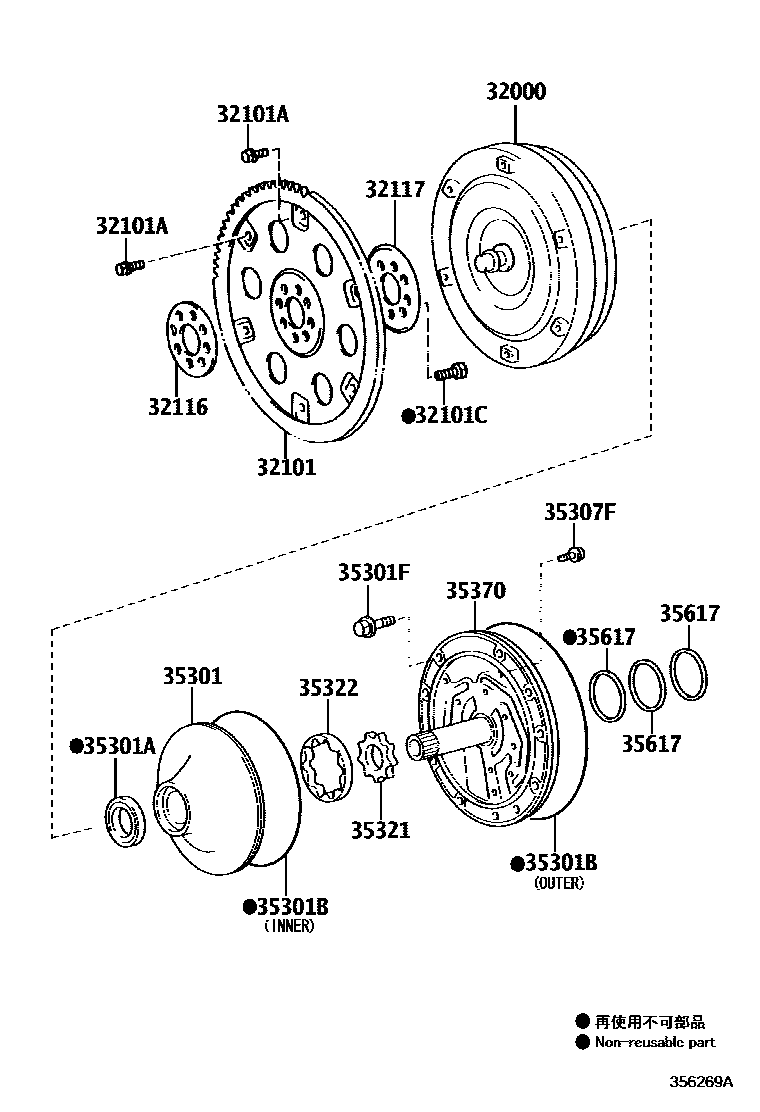

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
(L)
(J)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
(L)
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90105-10551iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC¥100200709-202104
*10-1.25PX16-12.9,BLACK
*10-1.25PX16-13,SILVER WHITE
*9-1.25PX12.8-9,BLACK
*9-1.25PX12.8-8.8,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX22-15
*14-1.5PX42-30
*10-1.25PX23-16,(J)
*10-1.25PX23-16,(L)
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
OUTER
OUTER
INNER
NO.2:REFER ILLUST.
INNER
main90301-99178iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC¥300200709-202104
OUTER
NO.1:REFER ILLUST.
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX45-35
*8-1.25PX45-35,(J)
*8-1.25PX35-35
*8-1.25PX40-30
*8-1.25PX60-30
*8-1.25PX45-35,(L)
35307FBOLT (FOR STATOR SHAFT)
35321GEAR, FRONT OIL PUMP DRIVE
T=11.66,MARK 0
main35321-0C090iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC¥3,330200709-202104
T=11.66,MARK 1
T=11.66,MARK 2
T=11.66,MARK 3
main35321-0C120iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC¥3,330200709-202104
T=11.66,MARK 4
T=11.66,MARK 5
T=11.66,MARK 6
T=10.736-10.742
T=10.743-10.749
T=10.750-10.756
T=10.757-10.763
T=10.764-10.770
T=10.771-10.777
T=10.778-10.784
T=12.589-12.599
T=12.600-12.609
T=12.610-12.620
T=12.621-12.630
T=12.631-12.640
T=9.977-9.983
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-0C080iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC¥3,330200709-202104
T=11.66,MARK 0
T=11.66,MARK 1
main35322-0C100iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC¥3,330200709-202104
T=11.66,MARK 2
main35322-0C110iURJ202..VX..GCC;URJ202..VXR..GEN;VDJ200..05S..6FC;URJ202..(GXR,VX)..ARL;VDJ200..(VX,VXR)..GCC¥3,330200709-202104
T=11.66,MARK 3
T=11.66,MARK 4
T=11.66,MARK 5
main35322-0C140iURJ202..VX..GEN;URJ202..VXR..(ARL,GCC);VDJ200..6FC..(ARL,GEN)..LUB;URJ202,VDJ200..(08S,09S)..6FC..(GX,GXR)..GCC¥3,330200709-202104
T=11.66,MARK 6
T=10.736-10.742
T=10.743-10.749
T=10.750-10.756
T=10.757-10.763
T=10.764-10.770
T=10.771-10.777
T=10.778-10.784
T=12.590-12.599
T-12.600-12.609
T=12.610-12.620
T=12.621-12.630
T=12.631-12.640
T=9.977-9.983
35370SHAFT ASSY, STATOR
35617RING, CLUTCH DRUM OIL SEAL
15 parts on this diagram · 5 diagrams in section
