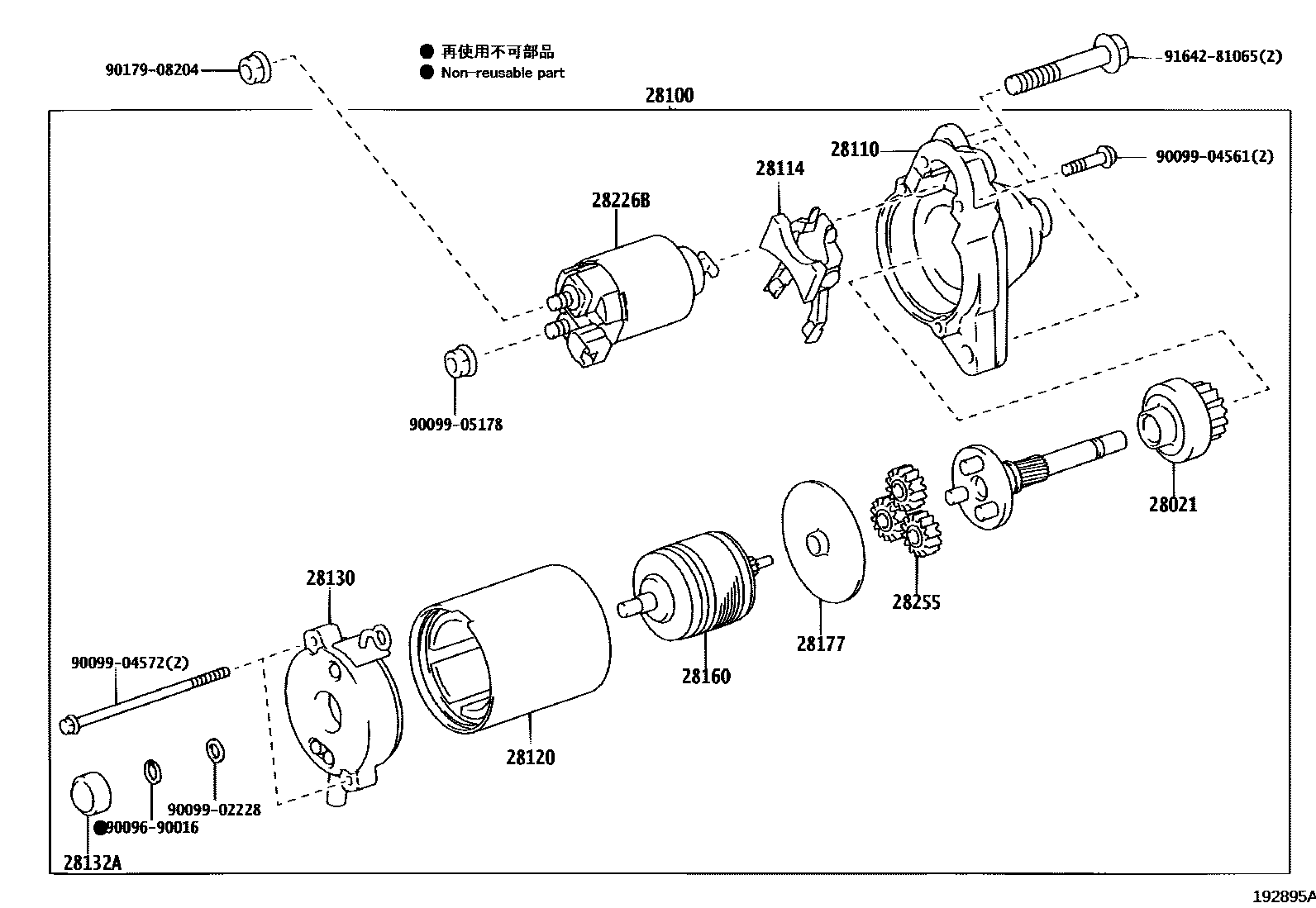

STARTER

0001 112V 1.6KW 0002 112V 2.0KW 0003 112V 2.7KW 0004 112V 1.4KW,2.0KW 0005 112V 1.4KW 0006 112V 1.4KW 0007 112V 2.0KW 0008 112V 2.0KW 0010 112V 1.4KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i1GRFE..GRJ200200709-200804

main28021-38040i3URFE..URJ200201007-201107

main28021-38070i3URFE..URJ200201107-201201

28100STARTER ASSY

main28100-31040i1GRFE..GRJ200200709-200804

12V 1.6KW

main28100-31110i1GRFE..GRJ200200804-200906

12V 1.4KW

main28100-31111i1GRFE..GRJ200..G200907-201201

12V 1.4KW

main28100-31131i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201508-202103

12V 1.4KW

main28100-38041i3URFE..URJ200201007-201106

12V 2.0KW

main28100-38070i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103

12V 2.0KW

main28100-38080i3URFE..URJ200201107-201201

12V 2.0KW

main28100-50090i2UZFE..UZJ200200709-200906

12V 1.4KW

main28100-50091i2UZFE..UZJ200200907-201201

12V 1.4KW

main28100-51070i1VDFTV..VDJ200200709-200710

12V 2.7KW

main28100-51071i1VDFTV..VDJ200..08S..GX;1VDFTV..VDJ200..GX..SOB..G;1VDFTV..VDJ200..(STD,VX)..G;1VDFTV..VDJ200..LHD..05S..LUB201109-201407

12V 2.7KW

main28100-51072i1VDFTV..VDJ200..ARL..LUB;1VDFTV..VDJ200..LHD..6FC..GEN;1VDFTV..VDJ200..RHD..(05S,08S)..GEN;1VDFTV..VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB201508-202104

12V 2.7KW

main28100-31050i1GRFE..GRJ200..LHD..(05S,08S)..GEN..G200709-201201

12V 2.0KW,COLD SPEC

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i1GRFE..GRJ200200709-200804

main28110-31110i1GRFE..GRJ200..RHD..05S200804-200907

main28110-51070i1VDFTV..VDJ200200709-200710

main28110-51071i1VDFTV..VDJ200..08S..GX;1VDFTV..VDJ200..GX..SOB..G;1VDFTV..VDJ200..(STD,VX)..G;1VDFTV..VDJ200..LHD..05S..LUB201109-201508

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i1GRFE..GRJ200200709-200804

28120YOKE ASSY, STARTER

main28120-28040i1GRFE..GRJ200200709-200804

sub28120-28060

main28120-38020i3URFE..URJ200201007-201107

main28120-38070i1URFE,3URFE..URJ20#201201-201508

main28120-50040i2UZFE..UZJ200200709-201201

main28120-51060i1VDFTV..VDJ200..G200709-201201

main28120-66040i1GRFE..GRJ200..5FC;1GRFE..GRJ200..SOB..G;1GRFE..GRJ200..LHD..08S..5F201109-201508

main28120-54380i1GRFE..GRJ200..RHD..G200907-201201

STARTER-12V-2.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31040i1GRFE..GRJ200200709-200804

main28130-31110i1GRFE..GRJ200..RHD..05S200804-200907

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i1GRFE..GRJ200200709-200804

28160ARMATURE ASSY, STARTER

main28160-21060i1GRFE..GRJ200200709-200804

main28160-36110i3URFE..URJ200;1URFE..URJ202..VX..GEN;1URFE..URJ202..(GXR,VXR)..GCC201910-202104

main28160-38020i3URFE..URJ200201007-201107

main28160-38070i1URFE,3URFE..URJ20#201508-201801

main28160-38080i1URFE,3URFE..URJ20#201801-201910

main28160-51060i1VDFTV..VDJ200..08S..GX;1VDFTV..VDJ200..GX..SOB..G;1VDFTV..VDJ200..(STD,VX)..G;1VDFTV..VDJ200..LHD..05S..LUB201109-201508

main28160-74070i1GRFE..GRJ200..RHD..05S200804-200907

main28160-75120i1GRFE..GRJ200..RHD..G200907-201201

STARTER-12V-2.0KW

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i1GRFE..GRJ200200709-200804

28226STARTER KIT, BATTERY TERMINAL

main28226-64370i1GRFE..GRJ200..RHD..05S200804-200907

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i1GRFE..GRJ200200709-200804

main28226-51060i1VDFTV..VDJ200..G200709-201201

28255GEAR, PLANET

main28255-28040×3i1GRFE..GRJ200200709-200804

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9017908204

main90179-08204

9164281065

main91642-81065

19 parts on this diagram · 9 diagrams in section
