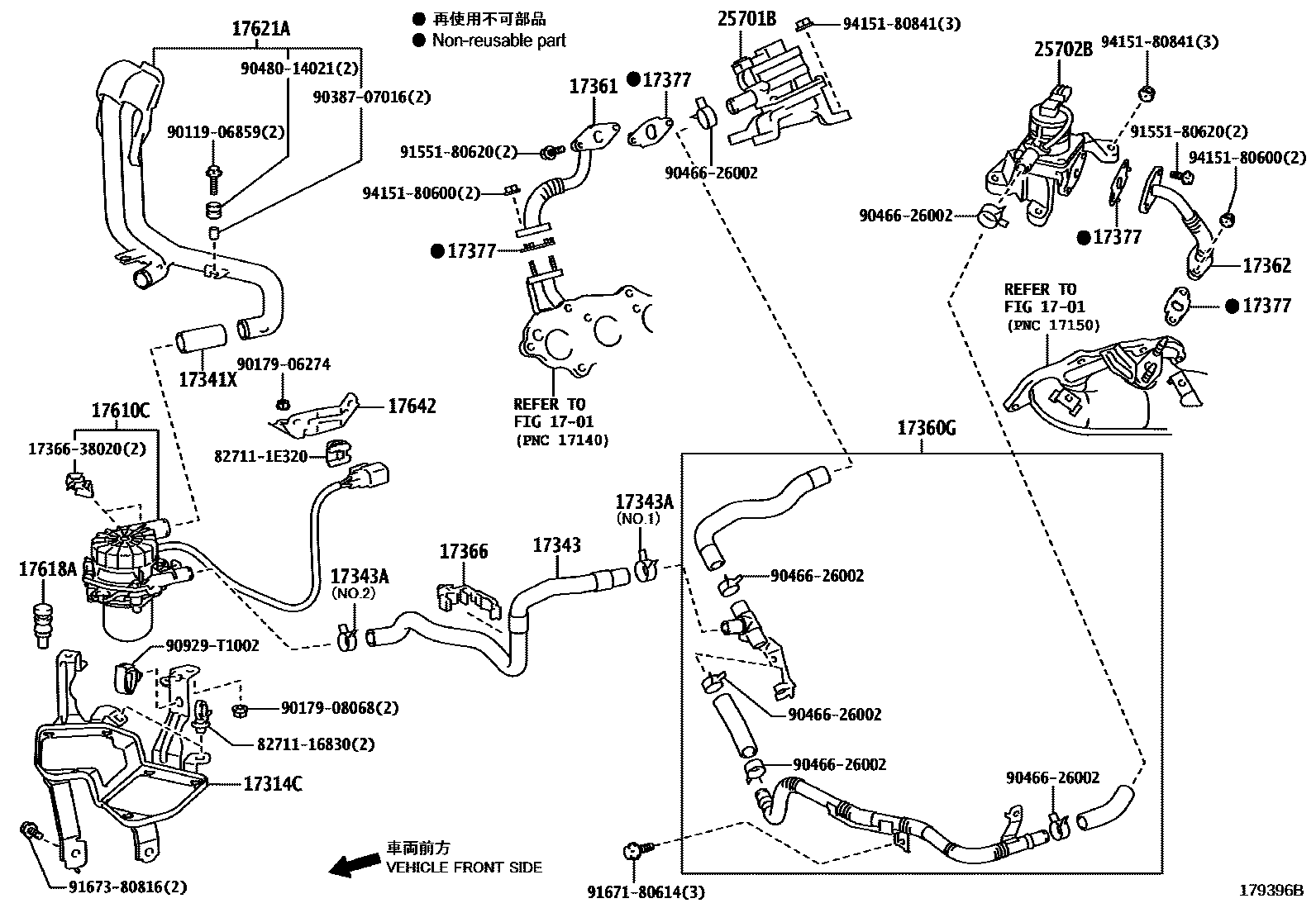

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1 0003 1 0006 1

1701

17314CBRACKET, AIR PUMP

main17314-0F010i2UZFE..UZJ200..ARL200709-201201

main17314-0S020i1URFE..URJ202..ARL201205-201508

PAKISTAN SPEC

main17314-0S020i1URFE..URJ202..ARL201205-201508

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITHOUT(OBD)

main17314-0S020i1URFE..URJ202..ARL201508-202103

main17314-0W040i1URFE..URJ202..VX..ARL201201-201205

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITHOUT(OBD)

sub17314-0S020

main17314-0W040i1URFE..URJ202..VX..ARL201201-201205

PAKISTAN SPEC

sub17314-0S020

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-38100i1URFE..URJ202..VX..ARL201201-201508

PAKISTAN SPEC

main17341-38100i1URFE..URJ202..ARL201508-202103

main17341-50180i2UZFE..UZJ200..ARL200709-201201

17341XHOSE, AIR, NO.1

main17341-38080i1URFE..URJ202..VX..ARL201201-201508

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITHOUT(OBD)

main17341-38080i1URFE..URJ202..VX..ARL201201-201508

PAKISTAN SPEC

main17341-38080i1URFE..URJ202..ARL201508-202103

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-38050i1URFE..URJ202..VX..ARL201201-201508

PAKISTAN SPEC

main17343-38050i1URFE..URJ202..ARL201201-201508

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITHOUT(OBD)

main17343-38050i1URFE..URJ202..ARL201508-202103

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main90466-24003i1URFE..URJ202..ARL201201-201308

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITHOUT(OBD),NO.1

sub90466-26002

main90466-24003i1URFE..URJ202..VX..ARL201201-201308

NO.1

sub90466-26002

main90466-24003i1URFE..URJ202..VX..ARL201201-201308

PAKISTAN SPEC,NO.1

sub90466-26002

main90466-26002i1URFE..URJ202..ARL201309-201508

PAKISTAN SPEC,NO.1

main90466-26002i1URFE..URJ202..ARL201309-202103

NO.1

main90466-26002i1URFE..URJ202..ARL201309-201508

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITHOUT(OBD),NO.1

main96136-42701i1URFE..URJ202..VX..ARL201201-201508

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITHOUT(OBD),NO.2

main96136-42701i1URFE..URJ202..ARL201201-202103

NO.2

main96136-42701i1URFE..URJ202..ARL201201-201508

PAKISTAN SPEC,NO.2

17360GTUBE ASSY, AIR

17361TUBE, AIR

main17361-38030i1URFE..URJ202..ARL201201-201508

PAKISTAN SPEC

main17361-38030i1URFE..URJ202..ARL201508-202103

17362TUBE, AIR, NO.2

main17362-38030i1URFE..URJ202..VX..ARL201201-201508

PAKISTAN SPEC

main17362-38030i1URFE..URJ202..ARL201508-202103

17366CLAMP, AIR INJECTION HOSE, NO.1

main17366-0S010i1URFE..URJ202..VX..ARL201201-201508

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITHOUT(OBD)

main17366-0S010i1URFE..URJ202..ARL201201-201508

PAKISTAN SPEC

main17366-0S010i1URFE..URJ202..ARL201508-202103

17377GASKET, AIR TUBE, NO.2

main17377-50010i2UZFE..UZJ200..ARL200709-201201

17610CPUMP ASSY, AIR

main17610-0C010i2UZFE..UZJ200..ARL200709-201201

main17610-0S010i1URFE..URJ202..ARL201201-201508

PAKISTAN SPEC

main17610-0S010i1URFE..URJ202..ARL201201-201508

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITHOUT(OBD)

main17610-0S030i1URFE..URJ202..ARL201508-202103

17618AINSULATOR, AIR PUMP

main17618-0C010i1URFE..URJ202..ARL201508-202103

main17618-0C010i1URFE..URJ202..ARL201201-201508

PAKISTAN SPEC

main17618-0C010i1URFE..URJ202..ARL201201-201508

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITHOUT(OBD)

main17618-0F010i2UZFE..UZJ200..ARL200709-201201

17621AINLET, AIR PUMP

main17621-38021i1URFE..URJ202..ARL201201-201508

PAKISTAN SPEC

main17621-38021i1URFE..URJ202..ARL201201-201508

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITHOUT(OBD)

main17621-38021i1URFE..URJ202..ARL201508-202103

17642BRACKET, AIR PUMP WIRE

main17642-38010i1URFE..URJ202..ARL201201-201307

PAKISTAN SPEC

main17642-38010i1URFE..URJ202..ARL201201-201307

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITHOUT(OBD)

main17642-38020i1URFE..URJ202..ARL201308-201508

PAKISTAN SPEC

main17642-38020i1URFE..URJ202..ARL201308-201508

PAKISTAN SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP2,WITHOUT(OBD)

main17642-38020i1URFE..URJ202..ARL201508-202103

25701BVALVE SET, EMISSION CONTROL, NO.1

main25701-38130i1URFE..URJ202..ARL201201-201305

PAKISTAN SPEC

sub25701-38131

main25701-38131i1URFE..URJ202..ARL201305-201407

PAKISTAN SPEC

sub25701-38132

main25701-38132i1URFE..URJ202..ARL201408-201508

PAKISTAN SPEC

main25701-38132i1URFE..URJ202..ARL201508-202103

25702BVALVE SET, EMISSION CONTROL, NO.2

main25702-38060i1URFE..URJ202..ARL201201-201305

PAKISTAN SPEC

sub25702-38061

main25702-38061i1URFE..URJ202..ARL201305-201407

PAKISTAN SPEC

sub25702-38062

main25702-38062i1URFE..URJ202..ARL201408-201508

PAKISTAN SPEC

main25702-38062i1URFE..URJ202..ARL201508-202103

1736638020CLAMP, AIR INJECTION HOSE, NO.1

main17366-38020

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9011906859

main90119-06859

9017906274

main90179-06274

9017908068

main90179-08068

9038707016

main90387-07016

9046626002

main90466-26002

9048014021

main90480-14021

90929T1002

main90929-T1002

9155180620

main91551-80620

9167180614

main91671-80614

9167380816

main91673-80816

9415180600

main94151-80600

9415180841

main94151-80841

32 parts on this diagram · 4 diagrams in section
