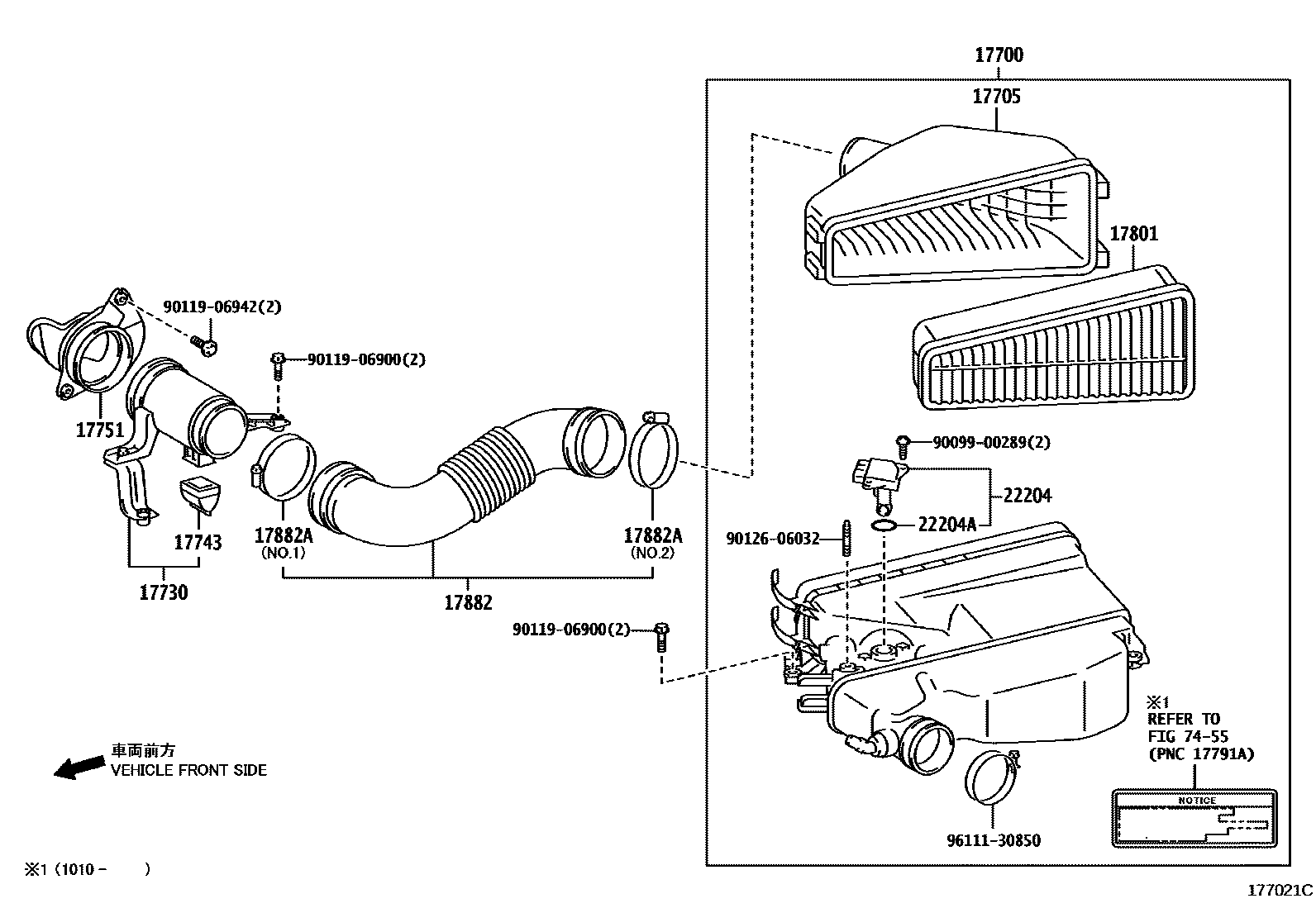

AIR CLEANER

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1AIR CLEANER 0014 1AIR CLEANER,W(SNORKEL) 0015 1W(INTERCOOLER) 0016 1W/O(INTERCOOLER)

17700CLEANER ASSY, AIR

main17700-31541i1GRFE..GRJ200..08S,09S;1GRFE..GRJ200..LHD..05S200709-201009

main17700-31542i1GRFE..GRJ200..K201109-201201

main17700-31A30i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201508-202103

main17700-38170i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103

main17700-51050i1VDFTV..VDJ200..08S..GX;1VDFTV..VDJ200..GX..SOB..G;1VDFTV..VDJ200..(STD,VX)..G;1VDFTV..VDJ200..LHD..05S..LUB201109-201508

17705CAP SUB-ASSY, AIR CLEANER

main17705-31090i1GRFE..GRJ200..08S,09S;1GRFE..GRJ200..LHD..05S200709-201008

sub17705-0P010

main17705-31091i1GRFE..GRJ200..G201009-201201

main17705-31310i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201508-202103

main17705-38090i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103

main17705-51030i1VDFTV..VDJ200..K201109-201201

17730PRECLEANER ASSY, AIR W/HOSE

main17730-31020i1GRFE..GRJ200..RHD..05S200709-200907

main17730-51010i1VDFTV..VDJ200..09S..GEN;1VDFTV..VDJ200..ARL..SOB;1VDFTV..VDJ200..LHD..5F..GEN..LUB201508-202103

AIR CLEANER-SNORKEL TYPE

17743VALVE, DUST RELIEF

main17743-31010i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200901-201201

main17743-50010i1GRFE..GRJ200200709-200812

17751INLET, AIR CLEANER, NO.1

main17751-38050i1GRFE..GRJ200..GEN..SOB..G;1GRFE..GRJ200..LHD..08S..GEN201109-201301

main17751-51020i1VDFTV..VDJ200..(ARL,GEN)..K201109-201201

AIR CLEANER-SNORKEL TYPE

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31090i1GRFE..GRJ200..RHD..05S200709-200907

main17801-38030i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201508-202103

main17801-51020i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..(VX,VXR)..GCC;1VDFTV..VDJ200..05S..(ARL,GCC);1VDFTV..VDJ200..LHD..5F..GEN..LUB201508-202103

17882HOSE, AIR CLEANER, NO.2

main17882-31090i1GRFE..GRJ200..08S,09S;1GRFE..GRJ200..LHD..05S200709-201009

main17882-31091i1GRFE..GRJ200..G201009-201201

main17882-31130i1GRFE..GRJ200201201-201508

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-96001i1GRFE..GRJ200200709-200902

NO.1

main90460-99009i1GRFE..GRJ200200709-200902

NO.2

main96111-10950i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201508-202103

main96111-10980i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201508-202103

main96111-11090i1GRFE..GRJ200..K201109-201201

NO.2

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i1GRFE..GRJ200201201-201508

MARK 22204-0T040

main22204-0V010i1GRFE..GRJ200..ATM;1GRFE..GRJ200..09S..SOB;1GRFE..GRJ200..05S..GEN201508-202104

MARK 22204-0V010

main22204-0V020i1GRFE..GRJ200201201-201508

MARK 22204-0V020

main22204-22010i1GRFE..GRJ200..RHD..05S200709-200907

main22204-26010i1VDFTV..VDJ200..ARL..LUB201508-202104

main22204-28010i1GRFE..GRJ200201201-201508

MARK 22204-28010

main22204-51010supersedes 22204-26010i1VDFTV..VDJ200..G200709-201201

main22204-75030i2UZFE,3URFE..URJ200,UZJ200200709-201201

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1GRFE..GRJ200..K201109-201201

7455

9009900289

main90099-00289

9011906900

main90119-06900

9011906942

main90119-06942

9012606032

main90126-06032

9611130850

main96111-30850

16 parts on this diagram · 15 diagrams in section
