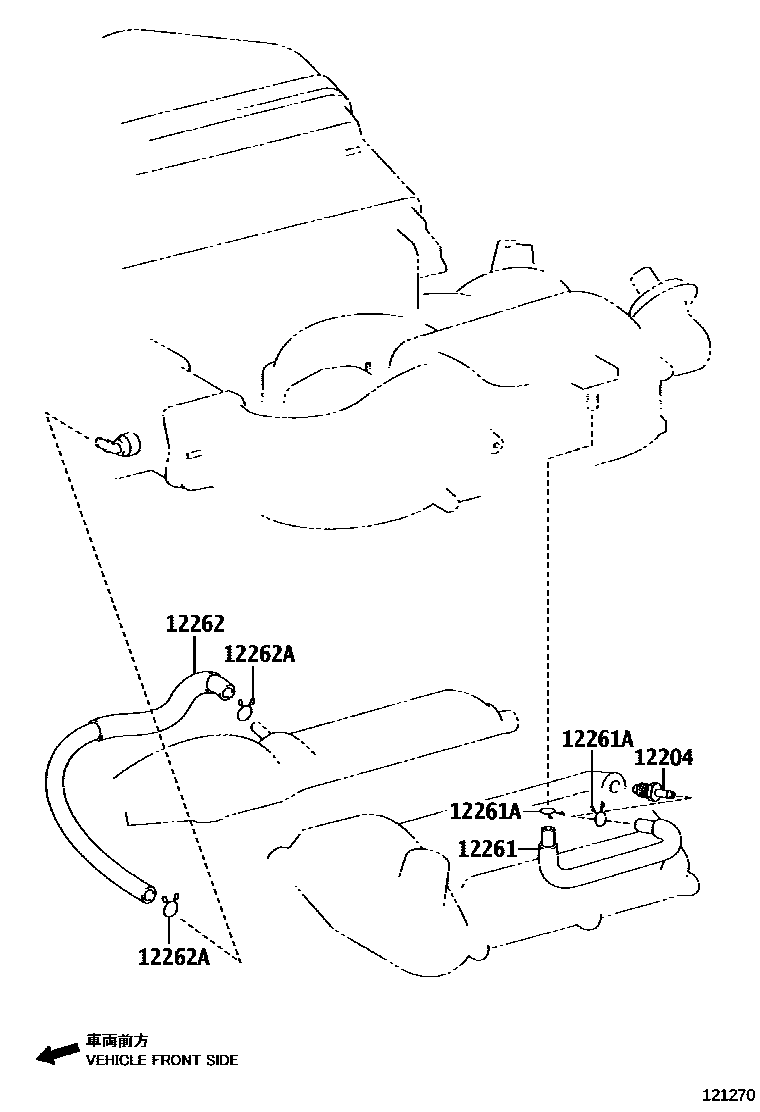

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1EXCEPT EUROPE STEP5 0007 1EUROPE STEP5

12204VALVE SUB-ASSY, VENTILATION

main12204-31030i1GRFE..GRJ200..RHD..05S200709-201201

main12204-31110i1GRFE..GRJ200..ATM;1GRFE..GRJ200..09S..SOB;1GRFE..GRJ200..05S..GEN201201-202104

main12204-38010i1URFE,3URFE..URJ20#201007-202104

main12204-50030i2UZFE..UZJ200200709-201201

12261HOSE, VENTILATION

main12261-31030i1GRFE..GRJ200..RHD..05S200709-201201

main12261-31080i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201201-202104

main12261-38020i3URFE..URJ200201007-202104

main12261-38080i1URFE..URJ202201201-202104

main12261-50070i2UZFE..UZJ200200709-201201

main12261-51031i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..(VX,VXR)..GCC;1VDFTV..VDJ200..05S..(ARL,GCC);1VDFTV..VDJ200..LHD..5F..GEN..LUB200709-202104

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201201-202104

NO.2

main90467-14017i1GRFE..GRJ200..RHD..05S200709-201201

main90467-15021i2UZFE..UZJ200200709-201201

main90467-16035i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201201-202104

NO.1

main90467-22010i1VDFTV..VDJ200..ARL..LUB;1VDFTV..VDJ200..LHD..6FC..GEN;1VDFTV..VDJ200..RHD..(05S,08S)..GEN;1VDFTV..VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB200709-202104

12262HOSE, VENTILATION, NO.2

main12262-31030i1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G200709-201201

main12262-31160i1GRFE..GRJ200..GEN..LUB;1GRFE..GRJ200..(05S,08S)..5F..GCC201201-202104

main12262-38050i3URFE..URJ200201007-202104

main12262-38080i1URFE..URJ202..VX..GCC;1URFE..URJ202..VXR..GEN;1URFE..URJ202..(GXR,VX)..ARL201201-202104

main12262-50100i2UZFE..UZJ200200709-201201

main12262-51020i1VDFTV..VDJ200200709-201104

main12262-51021i1VDFTV..VDJ200..09S..SOB;1VDFTV..VDJ200..LHD..5F..GEN..LUB;1VDFTV..VDJ200..(05S,08S)..(GX,VX,VXR)..GCC201508-202103

SOUTH AFRICA SPEC

main12262-51021i1VDFTV..VDJ200..K201104-202104

main12262-51030i1VDFTV..VDJ200..ARL..SOB201508-202104

main12262-51030i1VDFTV..VDJ200..LHD..VX..GEN201708-202104

EXHAUST EMISSION CONTROL-EUROPE STEP5, WITH(EGR) & WITH(OBD)

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-12058i1VDFTV..VDJ200..ARL..LUB;1VDFTV..VDJ200..LHD..6FC..GEN;1VDFTV..VDJ200..RHD..(05S,08S)..GEN;1VDFTV..VDJ200..(08S,09S)..(GX,GXR)..GCC..LUB200709-202104

main90467-19003i2UZFE,3URFE..URJ200,UZJ200200709-202104

main90467-21004i1GRFE..GRJ200201201-202104

main90467-21152i1GRFE..GRJ200..RHD..05S200709-201201

5 parts on this diagram · 7 diagrams in section
