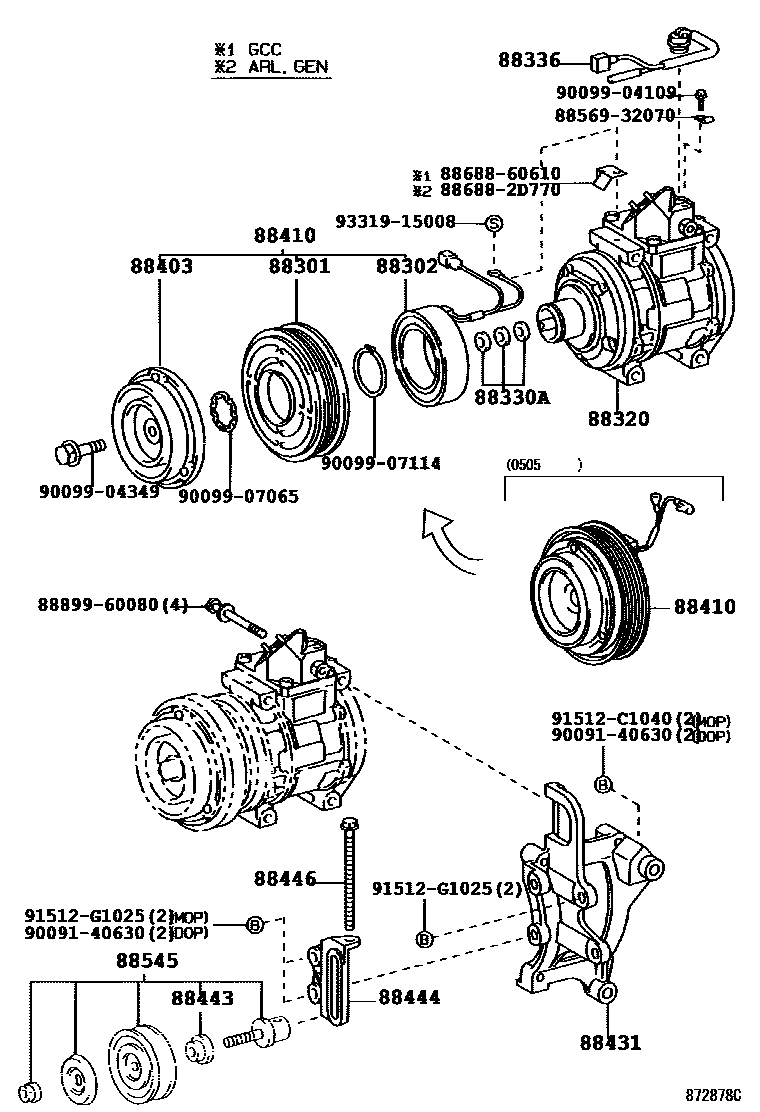

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22070iFZJ100..CHI199801-200606

main88412-30430iHDJ100,HZJ105..DSL2,TD2199801-200505

sub88412-2A060

main88412-60070iUZJ100..CHI199801-200506

main88412-6A020iHDJ100200008-200505

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-26040iFZJ105199801-200505

main88411-2A030iFZJ100,HDJ100,HZJ105199801-200606

main88411-3A030iUZJ100..LHD199801-200506

88320COMPRESSOR ASSY, COOLER

main88320-60580iFZJ105199801-200505

main88320-60590iFZJ100..GX..GCC199801-200111

W(DUAL AIR CONDITIONER)

sub88320-60750

main88320-60680iUZJ100..CHI199801-200505

sub88320-60681

main88320-60680iUZJ100..CHI200501-200506

(L)

sub88320-60681

main88320-60680iUZJ100..GX..ARL200505

W(DEALER OPTION SINGLE AIR CONDITIONER)

sub88320-60681

main88320-60681iUZJ100..ARL,GEN200502-200505

main88320-60681iUZJ100..5FC..CHI200501-200506

(J)

main88320-60690iUZJ100..GCC199801-200411

sub88320-60691

main88320-60691iUZJ100..GCC200502-200505

main88320-60700iHDJ100..LUB;HZJ105..ARL,GEN199801-200505

W(SINGLE AIR CONDITIONER)

main88320-60700iHDJ100,HZJ105..(GX,STD)..ARL200505

W(DEALER OPTION SINGLE AIR CONDITIONER)

main88320-60710iHZJ105..GCC199801-200505

main88320-60720iHDJ100..GX199801-200505

W(DUAL AIR CONDITIONER)

main88320-60730iFZJ100..GCC199801-200505

W(SINGLE AIR CONDITIONER)

main88320-60730iFZJ100..GCC200505

main88320-60750iFZJ100..GX..GCC200111-200507

W(DUAL AIR CONDITIONER)

main88320-60750iFZJ100..CHI200309-200606

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

88336SENSOR, COMPRESSOR

main88336-60120iFZJ100199801-200505

main88336-60140iUZJ100..GCC199801-200502

main88336-60150iHZJ105..GCC199801-200505

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

main88403-50020iUZJ100..GCC199801-200502

88410CLUTCH ASSY, MAGNET

main88410-22480iHDJ100,HZJ105..DSL2,TD2199801-200505

main88410-26110iFZJ105199801-200505

main88410-50100iUZJ100..GCC199801-200411

main88410-60330iFZJ100..GCC199801-200606

main88410-60410iUZJ100..CHI200111-200506

main88410-6A010iHDJ100..ARL200008-200505

main88410-6A040iFZJ100..GCC200508

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-60150iHDJ100,HZJ105..DSL2,TD2199801-200505

main88431-60200iFZJ10#..GCC,GEN200505

main88431-60200iFZJ10#199801-200505

W(SINGLE AIR CONDITIONER)

main88431-60210iFZJ100..GX..GCC199801-200505

W(DUAL AIR CONDITIONER)

main88431-60210iFZJ100..CHI200309-200606

main88431-60260iHDJ100200008-200505

88443COLLAR, IDLE PULLEY

main88443-36010iHZJ105199910-200505

88444BRACKET, IDLE PULLEY

main88444-60110iHZJ105199801-200505

main88444-60120iHDJ100200008-200505

88446BOLT, IDLE PULLEY

main88446-35040iFZJ105..STD..ARL199801-200506

main88446-60030iHDJ100,HZJ105199801-200505

88545PULLEY ASSY, IDLE

main88440-26090iFZJ10#..GCC,GEN199801-200606

main88440-35010iHZJ105..STD..ARL199910-200505

DEALER OPTION

main88440-35010iHZJ105..GCC,GEN200505

W(DEALER OPTION SINGLE AIR CONDITIONER)

main88440-60040iHDJ100,HZJ105199801-199910

main88440-60060iHDJ100200008-200505

8856932070CLAMP (FOR COOLER RELAY)

main88569-32070

886882D770BRACKET, COOLER DIAPHRAGM

main88688-2D770

8868860610BRACKET, COOLER DIAPHRAGM

main88688-60610

8889960080COVER, EVAPORATOR

main88899-60080

9009140630

main90091-40630

9009904109

main90099-04109

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

91512C1040

main91512-C1040

91512G1025

main91512-G1025

9331915008

main93319-15008

24 parts on this diagram · 5 diagrams in section
