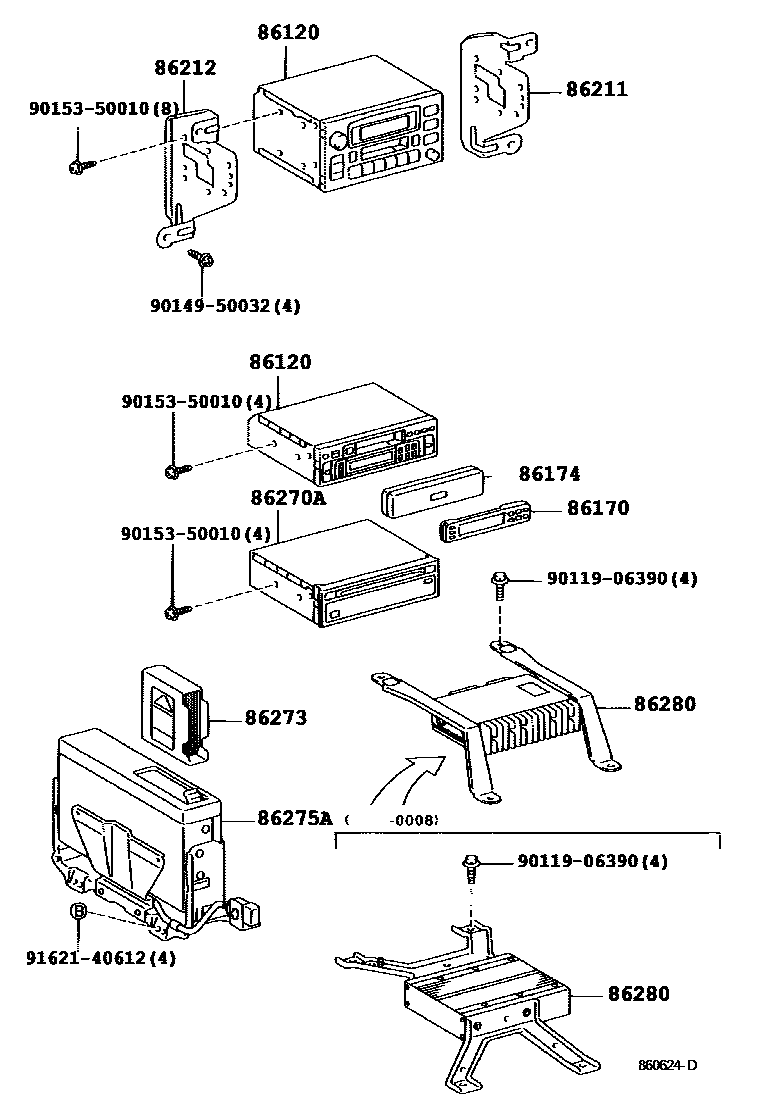

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0G010iFZJ100,UZJ100..GX..CHI200506

MATSUSHITA,ID=57417,TYPE B:REFER ILLUST.

sub86120-33460

main86120-0G010iFZJ100..CHI;UZJ100..5FC..GX..CHI200401-200506

MATSUSHITA,ID=57417,TYPE B:REFER TO ILLUSTRATION,(L)

sub86120-33460

main86120-10470iUZJ100..GEN;FZJ10#,HDJ100,HZJ105..GCC,GEN199801-200208

MATSUSHITA, ID=57207,AM/SW1/SW2 ETR CASSETTE

main86120-16660iUZJ100..GEN;FZJ100,HDJ100..GX;FZJ105,HDJ100,HZJ105..DSL2,EFI,TD2199801-200208

FUJITSU TEN,ID=17409,AM/FM ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER

main86120-16670iFZJ105,HDJ100,HZJ105,UZJ100..GEN199801-200208

FUJITSU TEN,ID=17410,AM/FM ETR (AM=10KHZ STEP),2 SPEAKER

main86120-16680iFZJ105,HDJ100,HZJ105,UZJ100..GEN199801-200208

MATSUSHITA, ID=57206,AM/FM/SW1/SW2 CASSETTE 2 SPEAKERS

main86120-2B560iFZJ105,HZJ105..RHD..LUB..GEN199801-200008

FUJITSU TEN,ID=18401,MW/UKW/LW

main86120-2B610iUZJ100..ARL,GCC;FZJ100,HZJ105..GX..GCC199801-200208

FUJITSU TEN,ID=17411,AM/FM ETR CASSETTE (AM=9KHZ STEP) 4 SPEAKER

main86120-2B610iHDJ100..VX..ARL200008-200208

FUJITSU TEN,ID=17411,AM/FM ETR CASSETTE (AM=9KHZ STEP)

main86120-2B620iFZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN199801-200208

MATSUSHITA,ID=57410,AM/FM ETR CASSETTE (AM=5KHZ STEP) 4 SPEAKER

main86120-33440iFZJ100..LUB..5F..GCC;FZJ105,HDJ100,HZJ105..GEN;UZJ100..LUB..5FC..(GCC,GEN)200208-200505

MATSUSHITA,ID=57413,TYPE B:REFER TO ILLUSTRATION & AM/FM (AM=10KHZ STEP)

main86120-33440iFZJ100..LUB..5F..GCC;FZJ105,HDJ100,HZJ105..GEN;UZJ100..LUB..5FC..(GCC,GEN)200505

MATSUSHITA,ID=57413,TYPE B:REFER ILLUST.

main86120-33460iHDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN)200208-200505

MATSUSHITA,ID=57412,TYPE B:REFER TO ILLUSTRATION & AM/FM

main86120-33460iFZJ100..CHI;UZJ100..5FC..GX..CHI200401-200506

MATSUSHITA,ID=57412,TYPE B:REFER TO ILLUSTRATION,(J)

main86120-33460iFZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN200505

MATSUSHITA,ID=57412,TYPE B:REFER ILLUST.

main86120-35190iFZJ10#,HZJ105..GCC,GEN199801-200208

MATSUSHITA, ID=57101,AM ETR CASSETTE 2 SPEAKER

main86120-42070iFZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN200505

MATSUSHITA,ID=57414,TYPE B:REFER ILLUST.

main86120-42070iFZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN200208-200505

MATSUSHITA,ID=57414,TYPE B:REFER TO ILLUSTRATION & AM/FM/SW

main86120-60260iFZJ105,HZJ105..RHD..LUB..GEN200008-200208

FUJITSU TEN,ID=18403,MW/UKW/LW

main86120-60300iUZJ100..GCC199801-200208

MATSUSHITA, ID=52703,AM/FM/SW1/SW2 CASSETTE 2DIN

main86120-60360iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(GCC,GEN)199801-200208

MATSUSHITA, ID=57409,AM/FM/SW1/SW2 CASSETTE 4 SPEAKERS

main86120-60550iHDJ100,UZJ100..LHD..LUB..GEN200208-200308

PIONEER,ID=P7814,TYPE C:REFER TO ILLUSTRATION & W(CD AUTO CHANGER)

sub86120-60551

main86120-60551iHDJ100,UZJ100..LHD..LUB..GEN200505

PIONEER,ID=P7831,TYPE C:REFER ILLUST.

main86120-60551iHDJ100,UZJ100..LHD..LUB..GEN200308-200505

PIONEER,ID=P7831,TYPE C:REFER TO ILLUSTRATION & W(CD AUTO CHANGER)

main86120-60560iUZJ100..GCC200208-200308

PIONEER,ID=P7812,TYPE C:REFER TO ILLUSTRATION & W(CD AUTO CHANGER)

sub86120-60561

main86120-60561iUZJ100..GCC200308-200505

PIONEER,ID=P7830,TYPE C:REFER TO ILLUSTRATION & W(CD AUTO CHANGER)

main86120-60561iUZJ100..GCC200505

PIONEER,ID=P7830,TYPE C:REFER ILLUST.

main86120-60670iUZJ100..VX..CHI200506

PIONEER,ID=P2733,TYPE D:REFER ILLUST.

main86120-60670iUZJ100..VX..CHI200501-200506

PIONEER,ID=P2733,TYPE D:REFER TO ILLUSTRATION

main86120-60710iHDJ100,UZJ100..RHD..VX200208-200308

PIONEER,ID=P7811,TYPE A:REFER TO ILLUSTRATION & W(CD AUTO CHANGER)

sub86120-60711

main86120-60711iHDJ100..RHD..GEN200505

PIONEER,ID=P7829,TYPE A:REFER ILLUST.

main86120-60711iHDJ100,UZJ100..RHD..VX200308-200505

PIONEER,ID=P7829,TYPE A:REFER TO ILLUSTRATION & W(CD AUTO CHANGER)

main86120-60770iUZJ100..GCC200505

PIONEER,ID=P2735,TYPE D:REFER ILLUST.

86170SWITCH AND VOLUME ASSY, RADIO

main86170-20050iFZJ105,HZJ105..RHD..LUB..GEN199801-200008

main86170-60020iFZJ105,HZJ105..RHD..LUB..GEN200008-200208

86174CASE, SWITCH & VOLUME

main86174-20010iFZJ105,HZJ105..RHD..LUB..GEN199801-200208

86211BRACKET, RADIO, NO.1

main86211-60070iFZJ10#,HDJ100,HZJ105,UZJ100199801-199808

sub86211-60071

main86211-60071iFZJ10#,HDJ100,HZJ105,UZJ100199808-200208

86212BRACKET, RADIO, NO.2

main86212-60070iFZJ10#,HDJ100,HZJ105,UZJ100199801-199808

sub86212-60071

main86212-60071iFZJ10#,HDJ100,HZJ105,UZJ100199808-200208

86270ADISC PLAYER ASSY

main86270-60050iHZJ105..GX..GEN;FZJ105,HDJ100,UZJ100..(GX,VX)..(GCC,GEN)199801-200208

86273MAGAZINE, DISC PLAYER

main86273-0G010iFZJ100..CHI;UZJ100..5FC..GX..CHI200309-200506

(L)

sub86273-0G011

main86273-0G010iFZJ100,UZJ100..GX..CHI200506-200701

sub86273-0G011

main86273-0G011iUZJ100..GX..CHI200702

main86273-50070iUZJ100..VX..CHI200501-200701

main86273-60030iFZJ100..CHI;UZJ100..5FC..GX..CHI200309-200506

(J)

main86273-60030iUZJ100199801-200505

main86273-60080iUZJ100..VX..CHI200702

86275ACHANGER, DISC PLAYER

main86270-0G010iFZJ100..CHI;UZJ100..5FC..GX..CHI200309-200506

(L)

sub86270-0G011

main86270-0G010iFZJ100,UZJ100..GX..CHI200506-200701

sub86270-0G011

main86270-0G011iUZJ100..GX..CHI200702

main86270-60030iHDJ100,UZJ100..RHD..VX199801-200208

main86270-60040iFZJ100..CHI;UZJ100..5FC..GX..CHI200309-200506

(J)

main86270-60040iUZJ100..GCC,GEN;HDJ100..LHD..LUB;FZJ100,HZJ105..GX..GCC199801-200505

main86270-60100iHDJ100..RHD..GEN200208-200505

main86270-60130iUZJ100..VX..CHI200501-200701

sub86270-60180

main86270-60180iUZJ100..VX..CHI200702

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-60210iUZJ100..LHD199801-200008

main86280-60270iUZJ100..GCC200008-200208

main86280-60320iUZJ100..LHD;HDJ100..LHD..LUB200208-200308

main86280-60321iUZJ100..GCC,GEN;HDJ100..LHD..LUB200308-200505

main86280-60341iUZJ100..GCC200505

W(EMV & NAVIGATION SYSTEM)

main86280-60341iUZJ100..VX..CHI200501-200506

main86280-60370iHDJ100,UZJ100..RHD..VX200208-200308

main86280-60371iHDJ100..RHD..GEN200308-200505

9011906390

main90119-06390

9014950032

main90149-50032

9015350010

main90153-50010

9162140612

main91621-40612
