ANTI-THEFT DEVICE

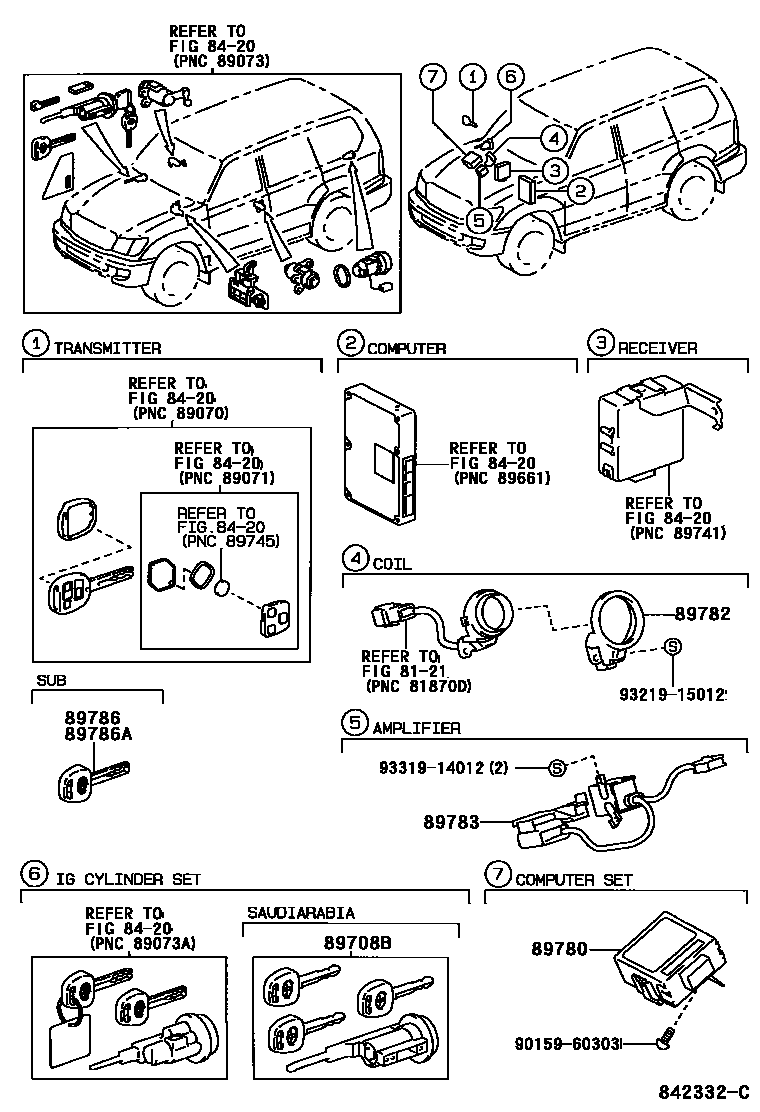

Parts diagram

8121

8420

89708BCYLINDER & TRANSMITTER SET, WIRELESS DOOR LOCK

main89708-60440i200008-200208

main89708-60540i200108-200208

SAUDI ARABIA SPEC

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-60090i199801-200008

main89780-60091i¥17,300200004-200208

main89780-60130i199801-200004

main89780-60131i200004-200208

main89780-60140i¥17,300200008-200208

W(ENGINE IMMOBILIZER SYSTEM)

main89780-60140i¥17,300200008-200208

SAUDI ARABIA SPEC

main89780-60140i¥17,300199801-200008

main89780-60220i200208-200506

main89780-60230i¥17,200200309-200506

main89780-60240i200208-200505

main89780-60250i¥17,200200208-200505

89782COIL, TRANSPONDER KEY

main89782-33020i¥1,870199801-200208

main89782-60030i¥1,870199801-200208

89783AMPLIFIER, TRANSPONDER KEY

main89783-35030i¥10,900200208-200506

sub89783-35031¥10,900

main89783-60030i¥9,200199801-200008

main89783-60040i¥9,200199801-200208

main89783-60050i¥9,200199801-200208

main89783-60060i¥9,200199801-200208

main89783-60060i¥9,200200008-200208

SAUDI ARABIA SPEC & W(SPARE WHEEL CARRIER W/KEY LOCK = UNDER & KEY LESS ENTRY)

main89783-60110i¥10,900200505

sub89783-60111¥10,900

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-50060i¥12,400200008-200208

main89786-60050i¥3,720199801-200208

main89786-60090i¥12,500199801-200208

main89786-60170i¥3,090200208-200506

main89786-60180i¥12,600200208-200506

main89786-60190i200208-200505

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-50070i¥12,600200008-200208

main89786-60080i¥12,500199801-200208

main89786-60140i¥12,600200208-200506

main89786-60160i200208-200505

9015960303

main90159-60303¥70

9321915012

main93219-15012¥170

9331914012

main93319-14012¥70

11 parts on this diagram · 6 diagrams in section
