ELECTRONIC CONTROLED DIESEL (ECD)
28611ACOVER, INTAKE HEATER RELAY
85915FRELAY, SPILL VALVE
85915QRELAY, COMPUTER (FOR DIESEL)
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424DSENSOR, INLET AIR TEMPERATURE
89454SENSOR, FUEL TEMPERATURE
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
89870DRIVER ASSY, SPILL VALVE CONTROL
9011906171
main90119-06171
9011906601
main90119-06601
9015960303
main90159-60303
9017906158
main90179-06158
9043012221
main90430-12221
9043016010
main90430-16010
91631G0614
main91631-G0614
9331915010
main93319-15010

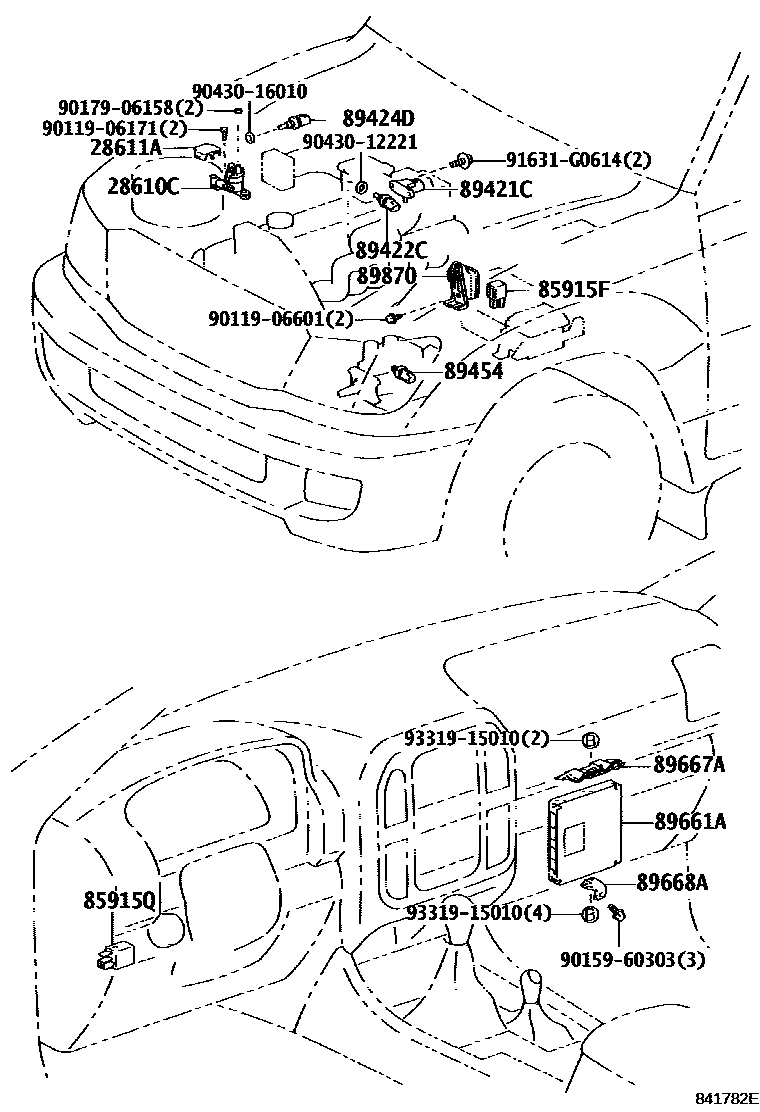

20 parts on this diagram · 1 diagram in section
