FUEL TANK & TUBE

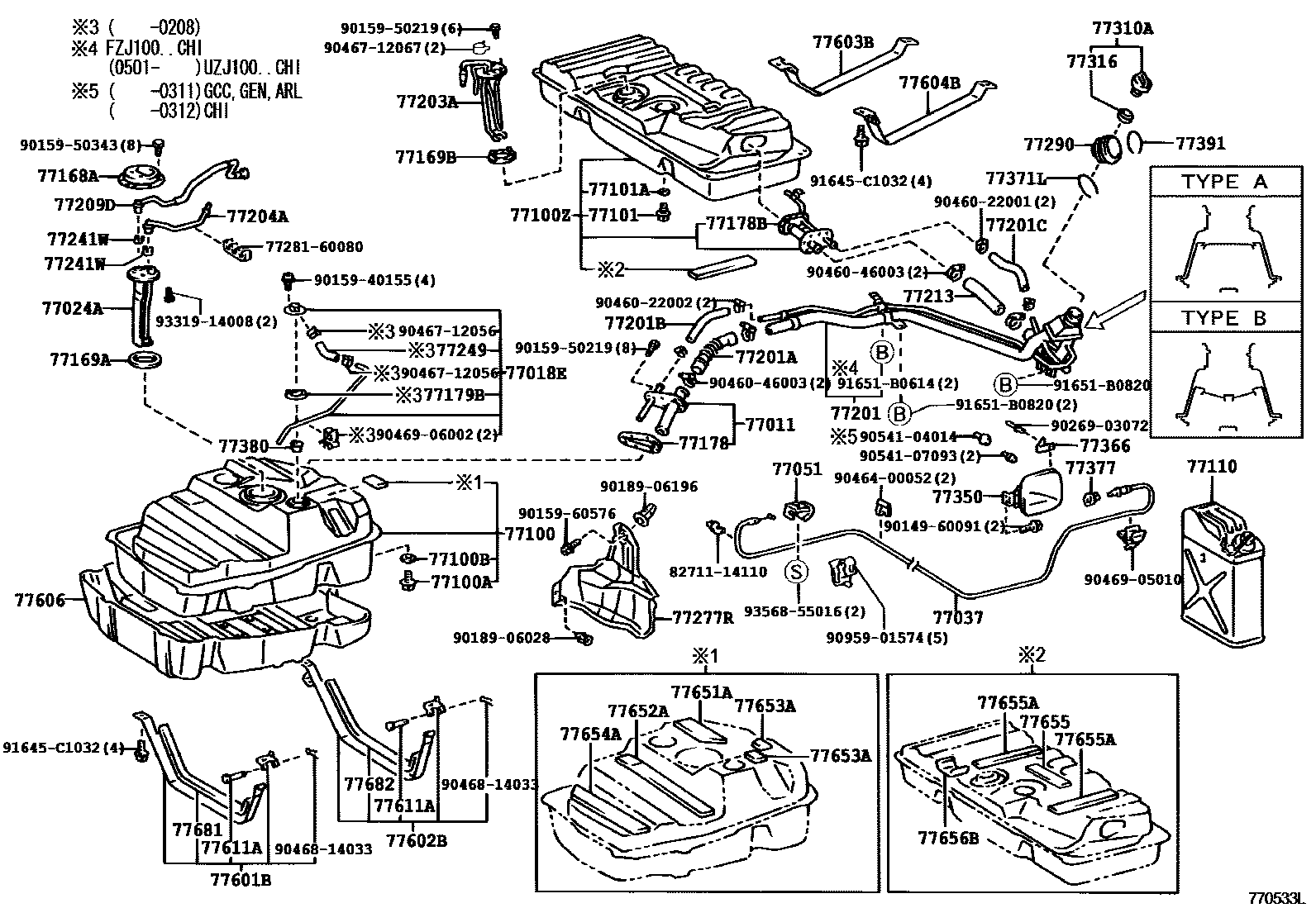

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE TYPE A 0005 1FUEL TUBE TYPE B 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL TUBE

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-60070iUZJ100..ARL199801-200506

main77011-60100iHZJ105..LHD..SOB..GEN199801-200505

RUSSIA SPEC

main77011-60100iFZJ105,HZJ105200505

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-60050iFZJ105,HDJ100,HZJ105199801-200505

main77018-60060iFZJ100,UZJ100..ARL,GCC,GEN199801-200506

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-60100iFZJ100,UZJ100199801-200008

sub77024-60101

main77024-60101iFZJ100,UZJ100200008-200208

sub77024-60160

main77024-60110iHDJ100,HZJ105199801-200206

sub77024-60150

main77024-60120iFZJ105199801-200008

sub77024-60121

main77024-60121iFZJ105200008-200208

sub77024-60170

main77024-60150iHDJ100,HZJ105200206-200505

main77024-60160iFZJ100,UZJ100..ARL,GCC,GEN200208-200506

main77024-60170iFZJ105..GEN200206-200505

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-0G010iFZJ100,UZJ100..CHI200506-200604

sub77037-60030

main77037-0G010iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

(L)

sub77037-60030

main77037-0G011iFZJ100,UZJ100..CHI200604

sub77037-60030

main77037-60020iFZJ105,HDJ100,HZJ105,UZJ100..RHD199801-200505

main77037-60030iFZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN)199801-200509

main77037-60030iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

(J)

main77037-60031iFZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN)200509

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-30060-A0iUZJ100;HDJ100..LUB..GEN199801-200208

IVORY,TRIM4#

sub77051-30060

main77051-30060-A0iUZJ100;HDJ100..LUB..GEN199801-200208

IVORY,TRIM40,41

sub77051-30060

main77051-30060-A1iFZJ100..CHI;UZJ100..5FC..CHI200208-200506

IVORY,TRIM0#

sub77051-30060

main77051-30060-B0iFZJ10#,HZJ105..STD199801-200008

SHADOW GRAY,TRIM1#

sub77051-30060

main77051-30060-B2iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX199801-200208

MD.GRAY,TRIM1#

sub77051-30060

main77051-30060-B4iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200208-200505

STONE,TRIM1#

sub77051-30060

77100TANK ASSY, FUEL

main77001-60450iHDJ100199801-200208

sub77001-60690

main77001-60490iHZJ105..LHD..SOB..GEN199801-200505

RUSSIA SPEC

main77001-60490iFZJ105,HZJ105200505

main77001-60510iFZJ100,UZJ100199801-200208

sub77001-60660

main77001-60660iFZJ100..CHI;UZJ100..5FC..CHI200208-200506

sub77001-60880

main77001-60690iHDJ100200208-200505

main77001-60860iUZJ100..CHI200506-200701

sub77001-60880

main77001-60880iUZJ100..CHI200701

77100APLUG(FOR FUEL TANK)

main90105-12116iFZJ105,UZJ100..(STD,VX)..ARL199801-200610

77100BGASKET(FOR FUEL TANK)

main90430-12245iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200610

77100ZTANK SUB-ASSY, FUEL SUB

main77001-60460iFZJ100,HDJ100,UZJ100199801-200201

sub77001-60770

main77001-60461iFZJ100,HDJ100,UZJ100200201-200511

sub77001-60462

main77001-60462iFZJ100,UZJ100..CHI200511-200610

sub77001-60870

main77001-60500iFZJ105,HZJ105199801-200201

main77001-60501iFZJ105,HZJ105200201-200510

sub77001-60502

main77001-60502iFZJ105,HZJ105200511

main77001-60870iUZJ100..CHI200611

77101PLUG(FOR FUEL SUB-TANK)

main90105-12116iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200511

77101AGASKET(FOR FUEL SUB-TANK)

main90430-12245iFZJ105..GX;FZJ105,UZJ100..LHD..(STD,VX);FZJ100,HDJ100,HZJ105..DSL2,EFI,TD2199801-200511

77110TANK ASSY, AUXILIARY FUEL

main77110-60011iFZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN199801-200505

W(AUXILIARY FUEL TANK X2)

77168APLATE, FUEL TANK VENT TUBE SET

main77168-12240iFZJ10#,HDJ100,HZJ105,UZJ100199801-200107

sub77168-33050

main77168-33050iFZJ10#,HDJ100,HZJ105,UZJ100200107-200506

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-32010iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-34010iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

77178BGASKET, FUEL TANK FILLER PIPE, LOWER (FOR SUB-TANK)

main77178-34010iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-26010iFZJ10#,HDJ100,HZJ105,UZJ100199801-200505

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-60510iHDJ100,UZJ100..GEN199801-200708

sub77201-60520

main77201-60531iUZJ100..4FC..GCC200108-200208

SAUDI ARABIA SPEC

main77201-60531iUZJ100..CHI200309-200501

main77201-60540iFZJ100..GCC200208-200708

TYPE A:REFER ILLUST.

main77201-60540iUZJ100..GEN199801-200208

W(FUEL SUB TANK)

main77201-60540iFZJ100,UZJ100..GCC199801-200208

main77201-60550iFZJ100,UZJ100..ARL,GCC,GEN200208-200708

TYPE B:REFER ILLUST.

main77201-60550iFZJ100,UZJ100..CHI199801-200506

main77201-60550iFZJ100..5F200108-200208

SAUDI ARABIA SPEC & W(SUB FUEL TANK)

main77201-60560iFZJ105,HZJ105..GEN199801-200708

main77201-60570iHZJ105..LHD..SOB..GEN199801-200708

RUSSIA SPEC

main77201-60580iFZJ105199801-200708

W(FUEL SUB TANK)

main77201-60590iFZJ105..RHD200008-200708

SOUTH AFRICA SPEC & W(FUEL SUB TANK)

main77201-60590iFZJ105..ARL199801-200208

main77201-60600iHZJ105199808-200708

W(FUEL SUB TANK)

main77201-60600iHZJ105..ARL200210-200505

main77201-60610iHDJ100..ARL200008-200505

main77201-60610iHDJ100..GEN199808-200708

W(FUEL SUB TANK)

main77201-60620iHZJ105199805-199808

W(FUEL SUB TANK)

sub77201-60600

main77201-60630iHDJ100199805-199808

W(FUEL SUB TANK)

sub77201-60610

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77213-60110iFZJ100..CHI199801-200506

main77213-60110iUZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100..ARL,GCC,GEN200208-200708

MARK B

main77213-60130iUZJ100..5FC..CHI200309-200506

main77213-60130iUZJ100..5FC..(ARL,GCC)200208-200708

MARK A

main77213-60150iFZJ105;HZJ105..GEN199805-200208

W(FUEL SUB TANK)

main77213-60150iFZJ105,HZJ105199801-200708

77201BHOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE)

main95312-13028iUZJ100..5FC..(ARL,GCC)200208-200708

L=280,PNC 77201A = MARK A

main95312-13028iUZJ100..5FC..CHI200309-200506

L=280

main95313-13024iFZJ105;HZJ105..GEN199801-200708

L=240

main95313-13024iFZJ105;HZJ105..GEN199805-200208

L=240,W(FUEL SUB TANK)

main95313-13028iUZJ100..5F;UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100..ARL,GCC,GEN200208-200708

L=280,PNC 77201A = MARK B

main95313-13028iFZJ100,HDJ100,UZJ100199801-200208

L=280,SAUDI ARABIA SPEC

main95313-13028iFZJ100,UZJ100..(4FC,5F)..CHI200309-200506

L=280

77201CHOSE, FUEL, NO.3(FOR FUEL TANK INLET PIPE)

main95312-13016iUZJ100..5FC..CHI200501-200506

L=160

main95312-13016iUZJ100..5FC..(ARL,GCC)200208-200708

L=160,PNC 77201A = MARK A

main95313-13016iFZJ100..CHI199801-200506

L=160

main95313-13016iUZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN200208-200708

L=160,PNC 77201A = MARK B

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-60130iUZJ100..VX..CHI199801-200506

main77203-60140iFZJ105199801-200505

77204ATUBE, FUEL TANK RETURN

main77204-60010iFZJ10#,HZJ105,UZJ100..ARL,GCC,GEN199801-200506

main77204-60020iHDJ100..ARL200008-200505

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-60160iUZJ100..4FC..GCC200108-200208

SAUDI ARABIA SPEC

main77209-60160iUZJ100..CHI199801-200501

main77209-60170iUZJ100..VX..CHI199801-200506

main77209-60170iFZJ100,UZJ100..GCC199801-200208

W(FUEL SUB TANK)

main77209-60180iHDJ100199801-200505

main77209-60200iHZJ105199801-200505

main77209-60210iFZJ105199801-200505

main77209-60220iFZJ105..GEN199801-200505

W(FUEL SUB TANK)

77213HOSE, FUEL TANK SUB INLET

main77213-60140iUZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN200208-200505

PNC 77201A = MARK B

main77213-60140iFZJ100..CHI199801-200506

main77213-60150iFZJ105,HZJ105..GEN200208-200505

W(FUEL SUB TANK)

main77213-60230iUZJ100..5FC..CHI200501-200506

main77213-60230iUZJ100..5FC..(ARL,GCC)200208-200505

PNC 77201A = MARK A

77241WCLIP, TUBE JOINT

main77241-60310iHDJ100,HZJ105199801-200505

NO.1

main77241-60320iUZJ100..ARL;HDJ100,HZJ105199801-200505

NO.2

main77241-60320iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

77249HOSE, FUEL EMISSION

main77249-60110iFZJ105,HDJ100,HZJ105199801-200208

sub77249-60190

main95333-06010iFZJ100,UZJ100199801-200208

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-60070iFZJ100,UZJ100..CHI199801-200506

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-60070iFZJ105,UZJ100..(STD,VX)..ARL199801-200412

sub77291-60071

main77291-60071iFZJ100..CHI;UZJ100..5FC..CHI200412-200506

77310ACAP ASSY, FUEL TANK

main77300-28010iFZJ10#,UZJ100..ARL,GCC,GEN200208-200506

main77300-60010iHDJ100,HZJ105200208-200505

main77310-12150iHDJ100,HZJ105199803-200208

main77310-35070iFZJ10#,UZJ100199801-199803

sub77310-48010

main77310-35110iHDJ100,HZJ105199801-199803

sub77310-12150

main77310-48010iFZJ10#,UZJ100199803-200208

77316GASKET, FUEL TANK CAP

main77316-16010iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

77350LID ASSY, FUEL FILLER OPENING

main77350-60060iFZJ10#,HDJ100,HZJ105,UZJ100199801-200003

sub77350-60061

main77350-60061iFZJ105,UZJ100..(STD,VX)..ARL200003-200506

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-60010iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

77371LRING, FUEL TANK FILLER PIPE SHIELD

main77371-60010iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-60010iFZJ100,UZJ100..CHI199801-200506

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200506

77391RING, FUEL INLET BOX

main77391-60040iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-60210iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

main77601-60220iFZJ105,HZJ105199801-200505

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-60080iUZJ100..LHD;FZJ100,HDJ100199801-200506

main77602-60090iFZJ105,HZJ105199801-200505

77603BBAND SUB-ASSY, FUEL TANK, NO.2 RH

main77603-60020iFZJ100,UZJ100..CHI199801-200506

main77603-60030iFZJ105,HZJ105199801-200505

77604BBAND SUB-ASSY, FUEL TANK, NO.2 LH

main77604-60020iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200506

main77604-60030iFZJ105,HZJ105199801-200505

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-60110iFZJ105,HZJ105199801-200505

main77606-60120iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

77611APIN (FOR FUEL TANK BAND)

main90240-08060iFZJ105,UZJ100..(STD,VX)..ARL199801-200506

77651ACUSHION, FUEL TANK, NO.1

main77654-60050iFZJ105,UZJ100..(STD,VX)..ARL199801-200610

77652ACUSHION, FUEL TANK, NO.2

main77652-60060iFZJ105,UZJ100..(STD,VX)..ARL199801-200610

77653ACUSHION, FUEL TANK, NO.3

main77653-60060iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200610

77654ACUSHION, FUEL TANK, NO.4

main77651-60120iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN199801-200610

main77651-60140iFZJ105,HZJ105199801-200505

77655CUSHION, FUEL TANK, NO.3

main77651-35060iFZJ105,UZJ100..(STD,VX)..ARL199801-200511

77655ACUSHION, FUEL TANK, NO.5

main77651-60130iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN199801-200511

77656BCUSHION, FUEL TANK, NO.6

main77652-20110iFZJ100..CHI;UZJ100..5FC..GX..CHI200208-200709

sub77652-33010

main77652-33010iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200208

sub77652-20110

77681SEAT, FUEL TANK BAND, RH

main77681-32060iFZJ105,HZJ105199801-200505

main77682-16010iFZJ100,UZJ100..CHI199801-200506

77682SEAT, FUEL TANK BAND, LH

main77681-32060iFZJ105,HZJ105199801-200505

main77682-16010iFZJ100..CHI;UZJ100..5FC..CHI199801-200506

7728160080BRACKET, FUEL MAIN TUBE, NO.1

main77281-60080

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9014960091

main90149-60091

9015940155

main90159-40155

9015950219

main90159-50219

9015950343

main90159-50343

9015960576

main90159-60576

9018906028

main90189-06028

9018906196

main90189-06196

9026903072

main90269-03072

9046022001

main90460-22001

9046022002

main90460-22002

9046046003

main90460-46003

9046400052

main90464-00052

9046712056

main90467-12056

9046712067

main90467-12067

9046814033

main90468-14033

9046905010

main90469-05010

9046906002

main90469-06002

9054104014

main90541-04014

9054107093

main90541-07093

9095901574

main90959-01574

91645C1032

main91645-C1032

91651B0614

main91651-B0614

91651B0820

main91651-B0820

9331914008

main93319-14008

9356855016

main93568-55016

80 parts on this diagram · 10 diagrams in section
