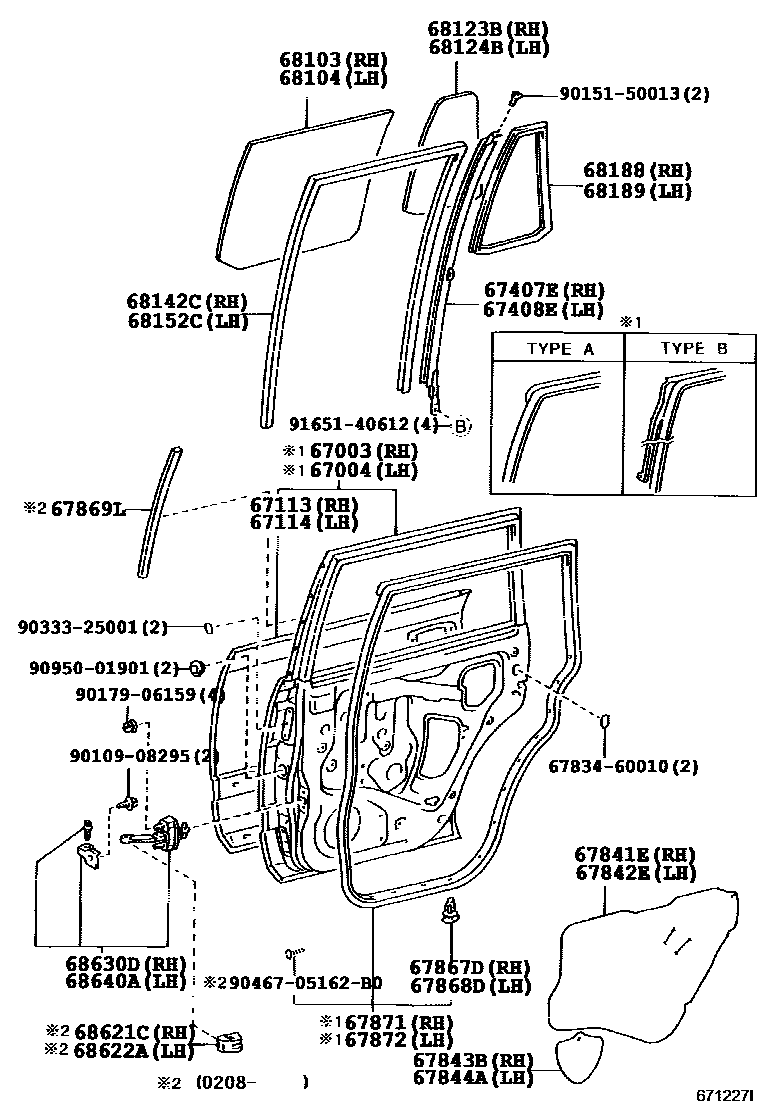

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-60220iUZJ100..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI¥72,800199801-200111

sub67003-60221¥72,800

main67003-60221iFZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI¥72,800200111-200208

sub67003-60330¥72,900

main67003-60230iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX¥72,800199801-200111

W(SIDE PROTECTION MOULDING)

sub67003-60231¥72,800

main67003-60231iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX¥72,800200111-200208

W(SIDE PROTECTION MOULDING)

sub67003-60290¥72,900

main67003-60280iHDJ100,UZJ100..VX..ARL¥72,900200208-200505

main67003-60290iFZJ100..LUB..5F..GCC;FZJ105,HDJ100,HZJ105,UZJ100..GX..(ARL,GEN)¥72,900200208-200505

W(SIDE PROTECTION MOULDING & REAR DOOR WEATHERSTRIP=TYPE A)

main67003-60330iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN)¥72,900200208-200505

W(REAR DOOR WEATHERSTRIP=TYPE A)

main67003-60340iFZJ100,HZJ105..GX..GCC;HDJ100,UZJ100..VX..(ARL,GCC,GEN)¥72,900200208-200505

W(SIDE PROTECTION MOULDING & REAR DOOR WEATHERSTRIP=TYPE B)

main67003-60340iFZJ100,UZJ100..CHI¥72,900200309-200506

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-60220iUZJ100..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI¥72,800199801-200111

sub67004-60221¥72,800

main67004-60221iFZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI¥72,800200111-200208

sub67004-60330¥72,900

main67004-60230iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX¥72,800199801-200111

W(SIDE PROTECTION MOULDING)

sub67004-60231¥72,800

main67004-60231iFZJ10#,HDJ100,HZJ105,UZJ100..GX,VX¥72,800200111-200208

W(SIDE PROTECTION MOULDING)

sub67004-60290¥72,900

main67004-60280iHDJ100,UZJ100..VX..ARL¥72,900200208-200505

main67004-60290iFZJ100..LUB..5F..GCC;FZJ105,HDJ100,HZJ105,UZJ100..GX..(ARL,GEN)¥72,900200208-200505

W(SIDE PROTECTION MOULDING & REAR DOOR WEATHERSTRIP=TYPE A)

main67004-60330iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN)¥72,900200208-200505

W(REAR DOOR WEATHERSTRIP=TYPE A)

main67004-60340iFZJ100,HZJ105..GX..GCC;HDJ100,UZJ100..VX..(ARL,GCC,GEN)¥72,900200208-200505

W(SIDE PROTECTION MOULDING & REAR DOOR WEATHERSTRIP=TYPE B)

main67004-60340iFZJ100,UZJ100..CHI¥72,900200309-200506

67113PANEL, REAR DOOR, OUTER RH

main67113-60160iUZJ100..ARL;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TDEFI¥29,600199801-200505

main67113-60170iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)¥29,600199801-200505

W(SIDE PROTECTION MOULDING)

main67113-60170iFZJ100,UZJ100..CHI¥29,600200309-200506

67114PANEL, REAR DOOR, OUTER LH

main67114-60160iHDJ100,UZJ100..ARL;FZJ10#,HZJ105..ARL,GCC,GEN¥29,600199801-200505

main67114-60170iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)¥29,600199801-200505

W(SIDE PROTECTION MOULDING)

main67114-60170iFZJ100,UZJ100..CHI¥29,600200309-200506

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-60040iFZJ105,UZJ100..(STD,VX)..ARL¥3,820199801-200506

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-60040iFZJ100..CHI;UZJ100..5FC..CHI¥3,820199801-200506

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-60090iFZJ105,UZJ100..(STD,VX)..ARL¥880199801-200506

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-60040iFZJ105,UZJ100..(STD,VX)..ARL¥880199801-200506

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67833-60010iHDJ100,UZJ100..GEN;FZJ10#,HDJ100,HZJ105..GX,STD¥880199801-200505

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67833-60010iUZJ100..LHD;FZJ10#,HDJ100,HZJ105¥880199801-200505

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iFZJ105,UZJ100..(STD,VX)..ARL¥100199801-200506

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN¥100199801-200506

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-60020iFZJ100..CHI;UZJ100..5FC..CHI¥710200208-200506

67871WEATHERSTRIP, REAR DOOR, RH

main67871-60070iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN)¥9,800200208-200505

TYPE A:REFER TO ILLUSTRATION

main67871-60070iFZJ10#,HDJ100,HZJ105,UZJ100¥9,800199801-200208

main67871-60080iFZJ100..CHI;UZJ100..VX..CHI¥8,700200208-200506

TYPE B:REFER TO ILLUSTRATION

67872WEATHERSTRIP, REAR DOOR, LH

main67872-60070iFZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN)¥9,800200208-200505

TYPE A:REFER TO ILLUSTRATION

main67872-60070iFZJ10#,HDJ100,HZJ105,UZJ100¥9,800199801-200208

main67872-60080iUZJ100..5FC..GX..CHI¥8,700200208-200506

TYPE B:REFER TO ILLUSTRATION

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-0G010iFZJ100..CHI;UZJ100..5FC..GX..CHI200408-200506

*TT,T=4.0,GREEN,(L)

main68113-0G010iFZJ100,UZJ100..GX..CHI200506

*TT,T=4.0,GREEN

main68113-0G020iUZJ100..VX..CHI200506

*UVCTT,T=4.0,GREEN

main68113-0G020iUZJ100..VX..CHI200408-200506

*UVCTT,T=4.0,GREEN,(L)

main68113-60150iFZJ10#,HDJ100,HZJ105,UZJ100¥0199801-200301

*TT,T=4.0,GREEN

sub68113-60250¥16,200

main68113-60160iHDJ100,UZJ100;HZJ105..GX..ARL¥0199801-200301

*UVCTT,T=4.0,GREEN

sub68113-60260¥0

main68113-60250iHZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN¥16,200200301-200505

*TT,T=4.0,GREEN

main68113-60250iFZJ100..CHI;UZJ100..5FC..GX..CHI¥16,200200309-200506

*TT,T=4.0,GREEN,(J)

main68113-60260iHZJ105..GX..ARL;HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);HDJ100,UZJ100..5F..(ARL,GCC,GEN)¥0200301-200505

*UVCTT,T=4.0,GREEN

main68113-60260iUZJ100..VX..CHI¥0200309-200506

*UVCTT,T=4.0,GREEN,(J)

main68113-60280iHDJ100,UZJ100..VX..ARL¥22,300200505

*UVCTT,T=4,DARK GRAY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-0G010iFZJ100,UZJ100..GX..CHI200506

*TT,T=4.0,GREEN

main68114-0G010iFZJ100..CHI;UZJ100..5FC..GX..CHI200408-200506

*TT,T=4.0,GREEN,(L)

main68114-0G020iUZJ100..VX..CHI200506

*UVCTT,T=4.0,GREEN

main68114-0G020iUZJ100..VX..CHI200408-200506

*UVCTT,T=4.0,GREEN,(L)

main68114-60150iFZJ10#,HDJ100,HZJ105,UZJ100¥0199801-200301

*TT,T=4.0,GREEN

sub68114-60250¥16,200

main68114-60160iHDJ100,UZJ100;HZJ105..GX..ARL¥0199801-200301

*UVCTT,T=4.0,GREEN

sub68114-60260¥0

main68114-60250iFZJ100..CHI;UZJ100..5FC..GX..CHI¥16,200200309-200506

*TT,T=4.0,GREEN,(J)

main68114-60250iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN¥16,200200301-200505

*TT,T=4.0,GREEN

main68114-60260iHZJ105..GX..ARL;HDJ100,UZJ100..ARL,GCC,GEN¥0200301-200505

*UVCTT,T=4.0,GREEN

main68114-60260iUZJ100..VX..CHI¥0200309-200506

*UVCTT,T=4.0,GREEN,(J)

main68114-60280iHDJ100,UZJ100..VX..ARL¥22,300200505

*UVCTT,T=4,DARK GRAY

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0G010iFZJ100..CHI;UZJ100..5FC..GX..CHI200408-200506

*TT,T=3.5,GREEN,(L)

main68123-0G010iFZJ100,UZJ100..GX..CHI200506

*TT,T=3.5,GREEN

main68123-0G020iUZJ100..VX..CHI200506

*UVCTT,T=3.5,GREEN

main68123-0G020iUZJ100..VX..CHI200408-200506

*UVCTT,T=3.5,GREEN,(L)

main68123-60160iFZJ10#,HDJ100,HZJ105,UZJ100¥6,000199801-200301

*TT,T=3.5,GREEN

sub68123-60161¥6,000

main68123-60161iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN¥6,000200301-200505

*TT,T=3.5,GREEN

main68123-60161iFZJ100..CHI;UZJ100..5FC..GX..CHI¥6,000200309-200506

*TT,T=3.5,GREEN,(J)

main68123-60170iHDJ100,UZJ100;HZJ105..GX..ARL¥6,200199801-200301

*UVCTT,T=3.5,GREEN

sub68123-60171¥6,200

main68123-60171iHZJ105..GX..ARL;HDJ100,UZJ100..ARL,GCC,GEN¥6,200200301-200505

*UVCTT,T=3.5,GREEN

main68123-60171iUZJ100..VX..CHI¥6,200200309-200506

*UVCTT,T=3.5,GREEN,(J)

main68123-60270iHDJ100,UZJ100..VX..ARL¥9,100200505

*UVCTT,T=4,DARK GRAY

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0G010iFZJ100,UZJ100..GX..CHI200506

*TT,T=3.5,GREEN

main68124-0G010iFZJ100..CHI;UZJ100..5FC..GX..CHI200408-200506

*TT,T=3.5,GREEN,(L)

main68124-0G020iUZJ100..VX..CHI200506

*UVCTT,T=3.5,GREEN

main68124-0G020iUZJ100..VX..CHI200408-200506

*UVCTT,T=3.5,GREEN,(L)

main68124-60160iFZJ10#,HDJ100,HZJ105,UZJ100¥6,000199801-200301

*TT,T=3.5,GREEN

sub68124-60161¥6,000

main68124-60161iFZJ100..CHI;UZJ100..5FC..GX..CHI¥6,000200309-200506

*TT,T=3.5,GREEN,(J)

main68124-60161iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN¥6,000200301-200505

*TT,T=3.5,GREEN

main68124-60170iHDJ100,UZJ100;FZJ105,HZJ105..GX..ARL¥6,200199801-200301

*UVCTT,T=3.5,GREEN

sub68124-60171¥6,200

main68124-60171iHZJ105..GX..ARL;HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);HDJ100,UZJ100..5F..(ARL,GCC,GEN)¥6,200200301-200505

*UVCTT,T=3.5,GREEN

main68124-60171iUZJ100..VX..CHI¥6,200200309-200506

*UVCTT,T=3.5,GREEN,(J)

main68124-60270iHDJ100,UZJ100..VX..ARL¥9,100200505

*UVCTT,T=4,DARK GRAY

68142CRUN, REAR DOOR GLASS, RH

main68142-60040iFZJ10#,HDJ100,HZJ105,UZJ100¥3,820199801-199808

sub68142-60042¥3,800

main68142-60042iFZJ10#,HDJ100,HZJ105,UZJ100¥3,800199808-200402

sub68142-60043¥3,810

main68142-60043iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN¥3,810200402-200506

68152CRUN, REAR DOOR GLASS, LH

main68152-60030iFZJ10#,HDJ100,HZJ105,UZJ100¥3,820199801-199808

sub68152-60032¥3,800

main68152-60032iFZJ10#,HDJ100,HZJ105,UZJ100¥3,800199808-200402

sub68152-60033¥3,810

main68152-60033iFZJ100,UZJ100..CHI¥3,810200402-200506

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-60040iFZJ105,UZJ100..(STD,VX)..ARL¥3,550199801-200506

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-60040iFZJ105,UZJ100..(STD,VX)..ARL¥3,550199801-200506

68621CCOVER, REAR DOOR CHECK, RH

main68621-53010iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN¥300200208-200506

68622ACOVER, REAR DOOR CHECK, LH

main68622-53010iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN¥300200208-200506

68630DCHECK ASSY, REAR DOOR, RH

main68630-60051iFZJ10#,HDJ100,HZJ105,UZJ100¥4,460199806-200208

main68630-60070iFZJ10#,HDJ100,HZJ105,UZJ100¥4,460199801-199806

sub68630-60051¥4,460

main68630-60090iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN¥4,460200208-200410

sub68630-60091¥4,460

main68630-60091iFZJ100,UZJ100..CHI¥4,460200408-200506

68640ACHECK ASSY, REAR DOOR, LH

main68640-60050iFZJ10#,HDJ100,HZJ105,UZJ100¥4,460199806-200208

main68640-60060iFZJ10#,HDJ100,HZJ105,UZJ100¥4,460199801-199806

sub68640-60050¥4,460

main68640-60080iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN¥4,460200208-200410

sub68640-60081¥4,460

main68640-60081iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN¥4,460200408-200506

6783460010COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67834-60010¥200

9010908295

main90109-08295¥80

9015150013

main90151-50013¥120

9017906159

main90179-06159¥70

9033325001

main90333-25001¥140

9046705162B0

main90467-05162B0

9095001901

main90950-01901¥120

9165140612

main91651-40612¥70

35 parts on this diagram · 2 diagrams in section
