ROOF HEADLINING & SILENCER PAD

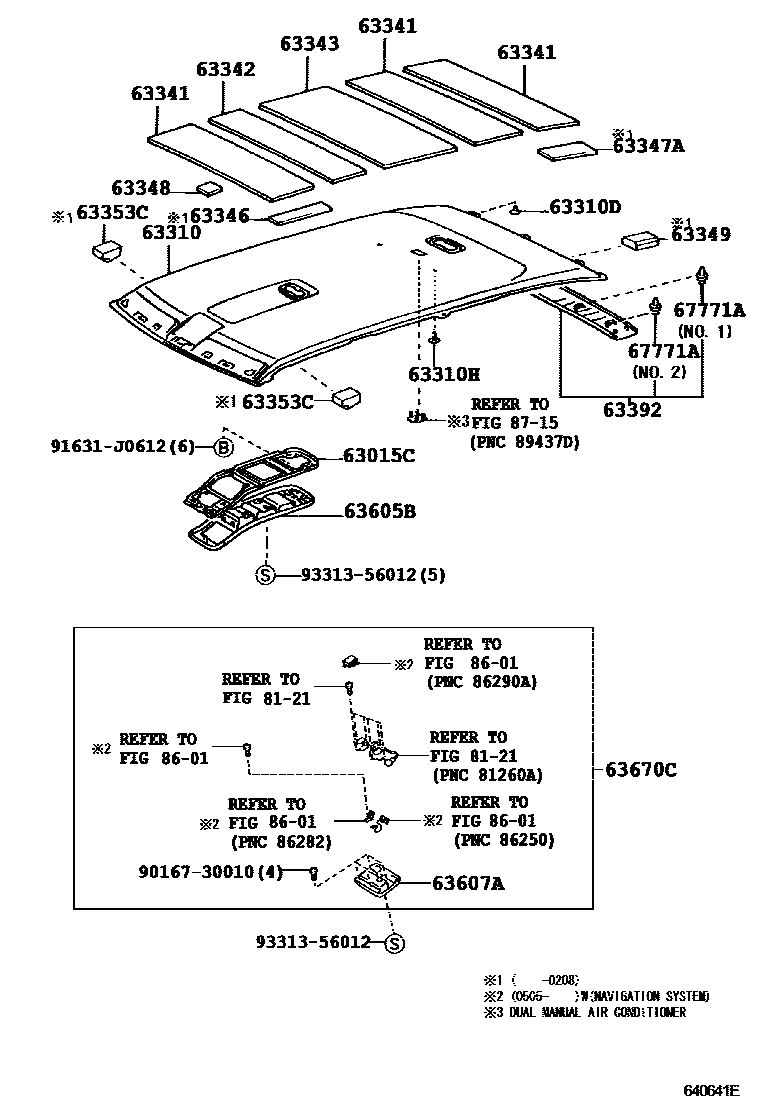

Parts diagram
63015CBRACKET SUB-ASSY, ROOF CONSOLE
main63015-60010i199801-199908
main63015-60011i199908-200505
main63015-60011i200204-200205
ADVANTAGE EDITION(AUSTRALIA)
main63183-60030i200309-200506
main63183-60030i199801-200505
W(MOON ROOF)
63310HEADLINING ASSY, ROOF
main63310-0G010-A0i200309-200401
IVORY,TRIM0#
main63310-0G010-A0i200401-200407
IVORY,TRIM0#,(L)
main63310-0G020-A0i200309-200401
IVORY,TRIM0#
main63310-0G020-A0i200401-200407
IVORY,TRIM0#,(L)
main63310-60500-A0i199801-199808
W(DUAL AIR CONDITIONER),IVORY,TRIM4#
main63310-60500-A0i199801-199808
W(DUAL AIR CONDITIONER),IVORY,TRIM40,41
main63310-60500-B0i199801-199808
W(DUAL AIR CONDITIONER),MEDIUM GRAY,TRIM1#
main63310-60501-A0i199808-200208
W(DUAL AIR CONDITIONER),IVORY,TRIM40,41
main63310-60501-A0i199808-200208
W(DUAL AIR CONDITIONER),IVORY,TRIM4#
main63310-60501-B0i199808-200208
W(DUAL AIR CONDITIONER),MEDIUM GRAY,TRIM1#
main63310-60502-A1i200508
W(DUAL AIR CONDITIONER),IVORY,TRIM0#
main63310-60502-A1i200208-200505
W(DUAL AIR CONDITIONER & CENTER VISOR),IVORY,TRIM0#
main63310-60502-B1i200208-200505
W(DUAL AIR CONDITIONER & CENTER VISOR),STONE,TRIM1#
main63310-60502-B1i200508
W(DUAL AIR CONDITIONER),STONE,TRIM1#
main63310-60530-A0i199801-199808
W(MOON ROOF),IVORY,TRIM4#
main63310-60530-B0i199801-199808
W(MOON ROOF),MEDIUM GRAY,TRIM1#
main63310-60531-A0i199808-200208
W(MOON ROOF),IVORY,TRIM4#
main63310-60531-B0i199808-200208
W(MOON ROOF),MEDIUM GRAY,TRIM1#
main63310-60532-A1i200208-200505
W(MOON ROOF),IVORY,TRIM0#
main63310-60532-B1i200208-200505
W(MOON ROOF),STONE,TRIM1#
main63310-60540-A0i199801-199808
W(DUAL AIR CONDITIONER & MOON ROOF),IVORY,TRIM4#
main63310-60540-B0i199801-199808
W(DUAL AIR CONDITIONER & MOON ROOF),MEDIUM GRAY,TRIM1#
main63310-60541-A0i199808-200208
W(DUAL AIR CONDITIONER & MOON ROOF),IVORY,TRIM4#
main63310-60541-B0i199808-200208
W(DUAL AIR CONDITIONER & MOON ROOF),MEDIUM GRAY,TRIM1#
main63310-60542-A1i200208-200505
W(DUAL AIR CONDITIONER & MOON ROOF),IVORY,TRIM0#
main63310-60542-B1i200208-200505
W(DUAL AIR CONDITIONER & MOON ROOF),STONE,TRIM1#
main63310-60551-B0i200204-200205
ADVANTAGE EDITION(AUSTRALIA),MEDIUM GRAY,TRIM10
main63310-60570-A0i199801-199808
IVORY,TRIM4#
main63310-60570-B0i199801-199808
MEDIUM GRAY,TRIM1#
main63310-60571-A0i199808-200208
IVORY,TRIM4#
main63310-60571-B0i199808-200208
MEDIUM GRAY,TRIM1#
main63310-60572-A1i200208-200505
IVORY,TRIM0#
main63310-60572-B1i200208-200505
STONE,TRIM1#
main63310-60580-B0i199801-199808
MEDIUM GRAY,TRIM1#
main63310-60581-B0i199808-200208
MEDIUM GRAY,TRIM1#
main63310-60582-B1i200208-200505
STONE,TRIM1#
main63310-60590-A0i199801-199808
W(DUAL AIR CONDITIONER),IVORY,TRIM4#
main63310-60590-B0i199801-199808
W(DUAL AIR CONDITIONER),MEDIUM GRAY,TRIM1#
main63310-60591-A0i199808-200208
W(DUAL AIR CONDITIONER),IVORY,TRIM4#
main63310-60591-B0i199808-200208
W(DUAL AIR CONDITIONER),MEDIUM GRAY,TRIM1#
main63310-60592-A1i200208-200505
W(DUAL AIR CONDITIONER),IVORY,TRIM0#
main63310-60592-B1i200208-200505
W(DUAL AIR CONDITIONER),STONE,TRIM1#
main63310-60600-A0i199801-199808
W(MOON ROOF),IVORY,TRIM4#
main63310-60600-A0i199801-199808
W(MOON ROOF),IVORY,TRIM40,41
main63310-60600-B0i199801-199808
W(MOON ROOF),MEDIUM GRAY,TRIM1#
main63310-60601-A0i199808-200208
W(MOON ROOF),IVORY,TRIM40,41
main63310-60601-A0i199808-200208
W(MOON ROOF),IVORY,TRIM4#
main63310-60601-B0i199808-200208
W(MOON ROOF),MEDIUM GRAY,TRIM1#
main63310-60602-A1i200208-200505
W(MOON ROOF & CENTER VISOR),IVORY,TRIM0#
main63310-60602-B1i200208-200505
W(MOON ROOF & CENTER VISOR),STONE,TRIM1#
main63310-60610-A0i199801-199808
W(DUAL AIR CONDITIONER & MOON ROOF),IVORY,TRIM4#
main63310-60610-A0i199801-199808
W(DUAL AIR CONDITIONER & MOON ROOF),IVORY,TRIM40,41
main63310-60610-B0i199801-199808
W(DUAL AIR CONDITIONER & MOON ROOF),MEDIUM GRAY,TRIM1#
main63310-60611-A0i199808-200208
W(DUAL AIR CONDITIONER & MOON ROOF),IVORY,TRIM40,41
main63310-60611-A0i199808-200208
W(DUAL AIR CONDITIONER & MOON ROOF),IVORY,TRIM4#
main63310-60611-B0i199808-200208
W(DUAL AIR CONDITIONER & MOON ROOF),MEDIUM GRAY,TRIM1#
main63310-60612-A1i200508
W(MOON ROOF & DUAL AIR CONDITIONER),IVORY,TRIM0#
main63310-60612-A1i200208-200505
W(MOON ROOF & DUAL AIR CONDITIONER & CENTER VISOR),IVORY,TRIM0#
main63310-60612-B1i200208-200505
W(MOON ROOF & DUAL AIR CONDITIONER & CENTER VISOR),STONE,TRIM1#
main63310-60612-B1i200508
W(MOON ROOF & DUAL AIR CONDITIONER),STONE,TRIM1#
main63310-60620-A0i199801-199808
IVORY,TRIM4#
main63310-60620-A0i199801-199808
IVORY,TRIM40,41
main63310-60620-B0i199801-199808
MEDIUM GRAY,TRIM1#
main63310-60621-A0i199808-200208
IVORY,TRIM4#
main63310-60621-A0i199808-200208
IVORY,TRIM40,41
main63310-60621-B0i199808-200208
MEDIUM GRAY,TRIM1#
main63310-60622-A1i200208-200505
W(CENTER VISOR),IVORY,TRIM0#
main63310-60622-B1i200208-200505
W(CENTER VISOR),STONE,TRIM1#
main63310-60640-A0i200008-200208
W(MOON ROOF & COMPASS & CENTER VISOR),IVORY,TRIM4#
main63310-60640-B0i200008-200208
W(MOON ROOF & COMPASS & CENTER VISOR),MEDIUM GRAY,TRIM1#
main63310-60641-A1i200208-200505
W(MOON ROOF & COMPASS & CENTER VISOR),IVORY,TRIM0#
main63310-60641-B1i200208-200505
W(MOON ROOF & COMPASS & CENTER VISOR),STONE,TRIM1#
main63310-60650-A0i200008-200208
W(MOON ROOF & COMPASS & DUAL AIR CONDITIONER & CENTER VISOR),IVORY,TRIM4#
main63310-60650-B0i200008-200208
W(MOON ROOF & COMPASS & DUAL AIR CONDITIONER & CENTER VISOR),MEDIUM GRAY,TRIM1#
main63310-60651-A1i200401-200407
IVORY,TRIM0#,(J)
main63310-60651-A1i200407-200611
IVORY,TRIM0#
main63310-60651-A1i200208-200505
W(MOON ROOF & COMPASS & DUAL AIR CONDITIONER & CENTER VISOR),IVORY,TRIM0#
main63310-60651-B1i200208-200505
W(MOON ROOF & COMPASS & DUAL AIR CONDITIONER & CENTER VISOR),STONE,TRIM1#
main63310-60660-A0i200008-200208
W(MOON ROOF & COMPASS),IVORY,TRIM4#
main63310-60660-B0i200008-200208
W(MOON ROOF & COMPASS),MEDIUM GRAY,TRIM1#
main63310-60661-A1i200208-200505
W(MOON ROOF & COMPASS),IVORY,TRIM0#
main63310-60661-B1i200208-200505
W(MOON ROOF & COMPASS),STONE,TRIM1#
main63310-60670-A0i200008-200208
W(MOON ROOF & COMPASS & DUAL AIR CONDITIONER),IVORY,TRIM4#
main63310-60670-B0i200008-200208
W(MOON ROOF & COMPASS & DUAL AIR CONDITIONER),MEDIUM GRAY,TRIM1#
main63310-60671-A1i200208-200505
W(MOON ROOF & COMPASS & DUAL AIR CONDITIONER),IVORY,TRIM0#
main63310-60671-A1i200407-200611
IVORY,TRIM0#
main63310-60671-A1i200401-200407
IVORY,TRIM0#,(J)
main63310-60671-B1i200208-200505
W(MOON ROOF & COMPASS & DUAL AIR CONDITIONER),STONE,TRIM1#
main63310-60680-A0i200008-200208
W(COMPASS & CENTER VISOR),IVORY,TRIM4#
main63310-60680-B0i200008-200208
W(COMPASS & CENTER VISOR),MEDIUM GRAY,TRIM1#
main63310-60681-A1i200208-200505
W(COMPASS & CENTER VISOR),IVORY,TRIM0#
main63310-60681-B1i200208-200505
W(COMPASS & CENTER VISOR),STONE,TRIM1#
main63310-60690-A0i200008-200208
W(COMPASS & DUAL AIR CONDITIONER & CENTER VISOR),IVORY,TRIM40,41
main63310-60690-B0i200008-200208
W(COMPASS & DUAL AIR CONDITIONER & CENTER VISOR),MEDIUM GRAY,TRIM1#
main63310-60691-A1i200208-200505
W(COMPASS & DUAL AIR CONDITIONER & CENTER VISOR),IVORY,TRIM0#
main63310-60691-B1i200208-200505
W(COMPASS & DUAL AIR CONDITIONER & CENTER VISOR),STONE,TRIM1#
main63310-60B90-A0i200611
IVORY,TRIM0#
main63310-60C00-A0i200611
IVORY,TRIM0#
63310DCLIP, ROOF HEADLINING
main90467-05021-C0i199801-200208
BLACK,TRIM1#,4#
main90467-05021-C0i199801-200505
BLACK,TRIM1#
main90467-05021-C0i199801-200208
BLACK,TRIM1#,40,41
main90467-05021-C0i200208-200505
BLACK,TRIM0#,1#
main90467-05021-C0i200309-200506
BLACK,TRIM0#
63310HCLIP(FOR ROOF HEADLINING)
main90467-06048-A0i199801-200208
IVORY,TRIM40,41
main90467-06048-A0i199801-200208
IVORY,TRIM4#
main90467-06048-A2i200208-200506
IVORY,TRIM0#
main90467-06048-B0i199801-200208
GRAY,TRIM1#
main90467-06048-P2i200208-200505
STONE,TRIM1#
63341PAD, ROOF SILENCER, NO.1
main63341-60060i199801-199811
W(MOON ROOF)
main63342-60060i199811-199906
W(MOON ROOF)
main63342-60061i199906-200505
W(MOON ROOF)
main63342-60061i200309-200506
63342PAD, ROOF SILENCER, NO.2
main63342-60060i199801-199906
main63342-60061i199906-200505
63343PAD, ROOF SILENCER, NO.3
main63343-60040i199801-200505
63346PAD, ROOF SILENCER, NO.6
main63346-60010i199801-200208
63347APAD, ROOF SILENCER, NO.7
main63347-60010i199801-200008
main63347-60010i200008-200208
W(DUAL AIR CONDITIONER)
63348PAD, ROOF SILENCER, NO.8
main63348-60010i199801-200505
63349PAD, ROOF SILENCER, NO.9
main63349-60020i199907-200208
W(DUAL AIR CONDITIONER)
63353CPAD, ROOF HEADLINING, CENTER
main63353-60040i199907-200208
main63354-60030i199907-200208
63392TRIM, ROOF HEADLINING, REAR
main63392-60050-A0i199801-200208
IVORY,TRIM40,41
main63392-60050-A0i199801-200208
IVORY,TRIM4#
main63392-60050-A2i200208-200612
IVORY,TRIM0#
main63392-60050-A2i200309-200506
IVORY,TRIM00
main63392-60050-B0i199801-200208
MD. GRAY,TRIM1#
main63392-60050-B2i200208-200612
STONE,TRIM1#
main63392-60051-A2i200701
IVORY,TRIM0#
main63392-60051-B2i200701
STONE,TRIM1#
63605BBOX SUB-ASSY, ROOF CONSOLE
main63605-60010-A0i199801-199808
IVORY,TRIM40,41
main63605-60010-A0i199801-199808
IVORY,TRIM4#
main63605-60010-B0i199801-199808
MD.GRAY,TRIM1#
main63605-60011-A0i199808-200208
IVORY,TRIM40,41
main63605-60011-A0i199808-200208
IVORY,TRIM4#
main63605-60011-A1i200208-200505
IVORY,TRIM0#
main63605-60011-B0i200204-200205
ADVANTAGE EDITION(AUSTRALIA),MD.GRAY,TRIM10
main63605-60011-B0i199808-200208
MD.GRAY,TRIM1#
main63605-60011-B1i200208-200505
STONE,TRIM1#
63607APLATE SUB-ASSY, MAP LAMP
main63607-60030-A0i199801-199808
IVORY,TRIM40,41
main63607-60030-A0i199801-199808
IVORY,TRIM4#
main63607-60030-B0i199801-199808
MD.GRAY,TRIM1#
main63607-60031-A0i199808-200208
IVORY,TRIM4#
main63607-60031-A0i199808-200208
IVORY,TRIM40,41
main63607-60031-B0i199808-200208
MD.GRAY,TRIM1#
main63607-60031-B0i200204-200205
ADVANTAGE EDITION(AUSTRALIA),MD.GRAY,TRIM10
main63607-60032-A1i200208-200505
IVORY,TRIM0#
main63607-60032-B1i200208-200505
STONE,TRIM1#
main63607-60060-A0i199801-200208
W(MOON ROOF),IVORY,TRIM4#
main63607-60060-A0i199801-200208
W(MOON ROOF),IVORY,TRIM40,41
main63607-60060-B0i199801-200208
W(MOON ROOF),MD.GRAY,TRIM1#
main63607-60061-A1i200309-200407
IVORY,TRIM0#
main63607-60061-A1i200208-200407
W(MOON ROOF),IVORY,TRIM0#
main63607-60061-B1i200208-200407
W(MOON ROOF),STONE,TRIM1#
main63607-60062-A1i200408-200506
IVORY,TRIM0#
main63607-60062-A1i200408-200505
W(MOON ROOF),IVORY,TRIM0#
main63607-60062-B1i200408-200505
W(MOON ROOF),STONE,TRIM1#
63670CPLATE ASSY, MAP LAMP
main63670-60032-A1i200208-200505
IVORY,TRIM0#
main63670-60032-B1i200208-200505
STONE,TRIM1#
main63670-60062-A1i200408-200505
W(MOON ROOF),IVORY,TRIM0#
main63670-60062-B1i200408-200505
W(MOON ROOF),STONE,TRIM1#
main63670-60262-A0i200501-200506
IVORY,TRIM0#
main63670-60262-B0i200505
STONE,TRIM1#
67771ARETAINER, ROOF HEADLINING
main67771-12050i199809-200102
NO.1
main67771-89104i199801-200612
NO.1 & NO.2
main67771-89104i199809-200102
NO.2
8121INTERIOR LAMP
→ Go to FIG 81-21
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
→ Go to FIG 86-01
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
→ Go to FIG 87-15
9016730010
main90167-30010
91631J0612
main91631-J0612
9331356012
main93313-56012

23 parts on this diagram · 2 diagrams in section

ROOF HEADLINING & SILENCER PAD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
